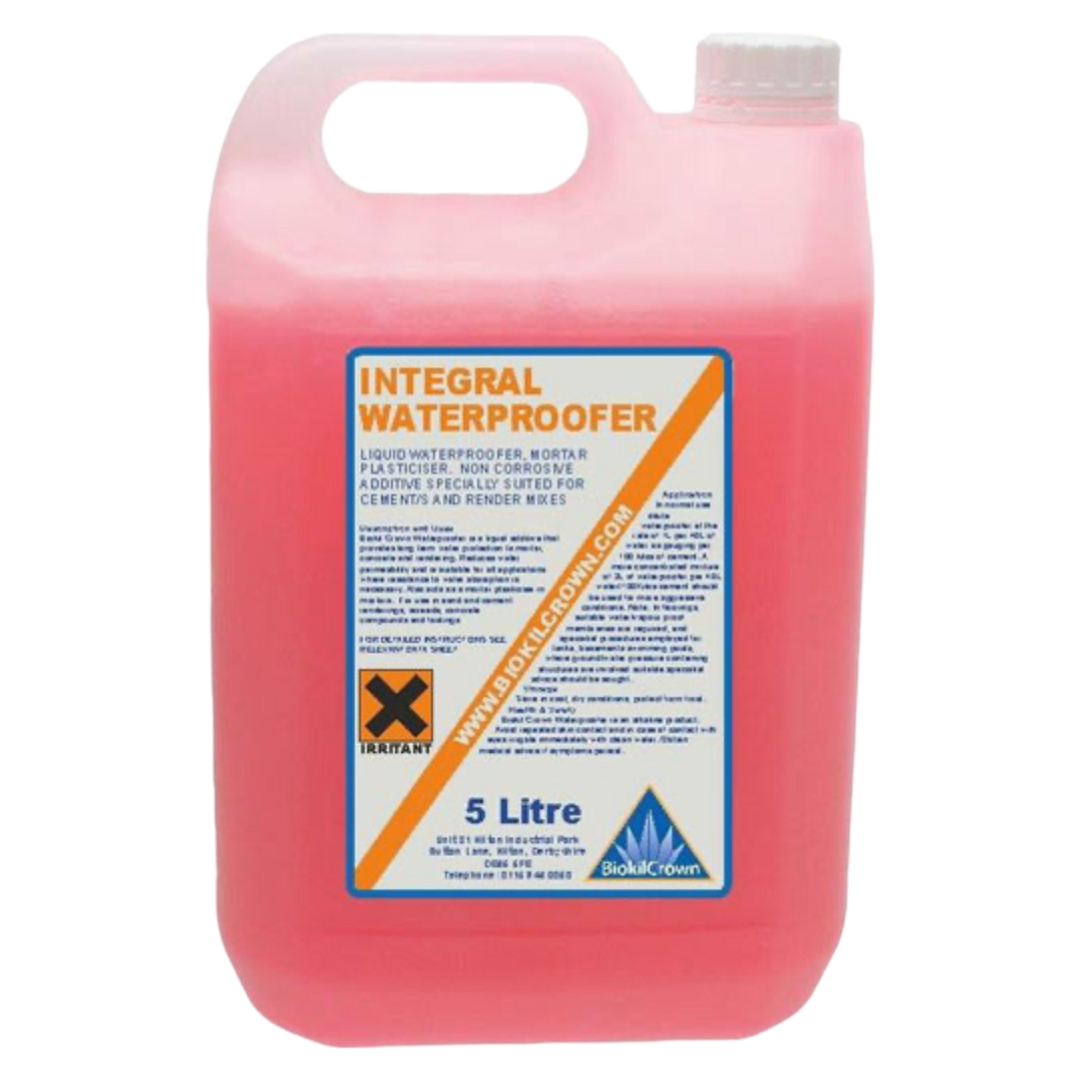

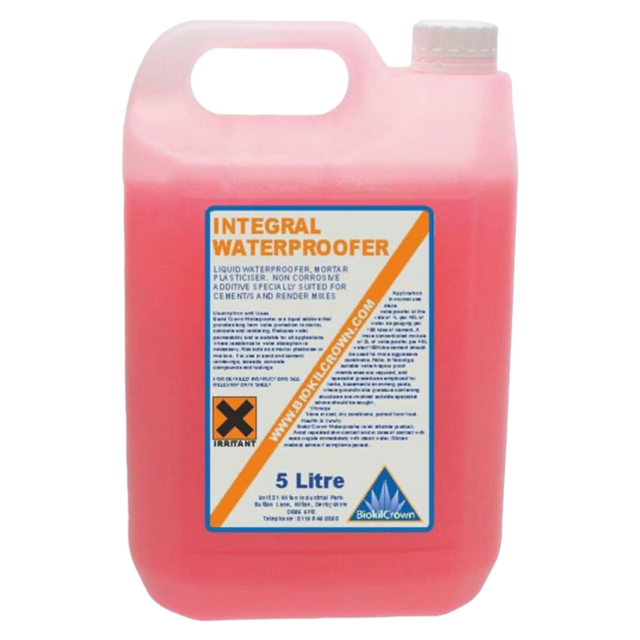

BIOKIL. Integral Waterproofer

£12.26

Size

5 Litre 25 Litre

Product variants

Customer Services

Got a query? Call 0330 055 8210

We're open from 8am to 5pm, Monday to Thursday, and 8am to 4:30pm on Friday.

Delivery and Shipping

Delivery is £12.50 + VAT to UK Mainland. Orders over £100.00 + VAT qualify for free delivery, except for certain products—these will be clearly shown at checkout.

Orders placed by 3pm (stock permitting) are dispatched the same working day on a next working day service (not guaranteed).

Some areas, like Northern Scotland, may take 2–3 working days.

Deliveries outside the UK Mainland are charged at cost—please contact us.

We're open:
Mon–Thurs: 8am–5pm
Friday: 8am–4:30pm

Call us: 0330 055 8210

BIOKIL. Integral Waterproofer – waterproofing admixture for mortar, concrete, renders & screeds

BIOKIL. Integral Waterproofer is a liquid/gel additive that provides long-term protection from water damage to mortar, concrete, renders and screeds by dramatically reducing water permeability.

It is suitable for all applications where resistance to water damage is necessary, such as pool and tank linings, roof areas, external rendering/pointing and structures below ground level. It also contains an air entraining agent, so it will not “deaden” the mix and there is no need to add a separate admix. Tested to BS EN 934-3.

Key features

Reduces surface absorption
Reduces permeability of concrete and mortar mixes
Increases compressive strength
Air entraining – will not “flatten” the mix
Non-corrosive – will not corrode steel reinforcement (brick ties etc.)
Improves workability; easier application in render mixes
Low toxicity formulation

Typical applications

Waterproofing below ground (basements etc.)
Waterproofing mortar, render and screeds above ground
Linings of water tanks, silage pits and ponds
Swimming pool linings and roof areas

Dosing

Add to the gauging water at 0.5 to 1 litre per 100kg cement, or dilute 1 part waterproofer to 20–40 parts water, mix until fully dispersed, then add to the mix
Gauge the mix as stiff as possible to minimise the risk of cracking, reducing the total quantity of water accordingly (by up to 20%)

Mix designs

Application	Mix (by volume)	Notes
Below ground work	3 sharp sand (BS 1199) : 1 cement	Do not apply to weak backgrounds
External waterproof renders	4.5 sharp sand (BS 1199) : 1 cement	Apply 18–20mm thick in two coats
Rough cast work	Backing coat 3 sharp sand (BS 1199) : 1 cement	–
Swimming pools, tanks etc.	3 sharp sand (BS 1199) : 1 cement	18–20mm render on walls, 35–38mm on floors; stagger joints and cove corners; overcoating with an impervious coating or tiling is recommended
Concrete	1:2:4 or 1:1.5:3 cement : sand : coarse aggregate	–

Limitations

Do not use in structural concrete
Not intended as a DPC replacement; will not withstand permanent hydrostatic pressure
For tanking applications, use in conjunction with a DPM emulsion
Does not repel water – if a water repellent finish is required, coat the render/screed with a water seal

Technical information

Property	Value
Appearance	Soft mobile gel
Specific gravity @ 20°C	1.02
Freezing point	−10°C approx.
Chloride ion content	Nil
Addition rate	0.5–1 litre per 100kg cement
Usage (render)	1 litre waterproofs 7–8m² of rendering (3 sand : 1 cement)
Usage (concrete)	3.4 litres per m³ of 1:2:4 concrete
Pack sizes	5 Litre (BIO-734) and 25 Litre (BIO-735)
Storage	Original container, 5–40°C
Shelf life	Two years in original unopened containers
