TIMCO 13 Fire Door Hinge Pol SS

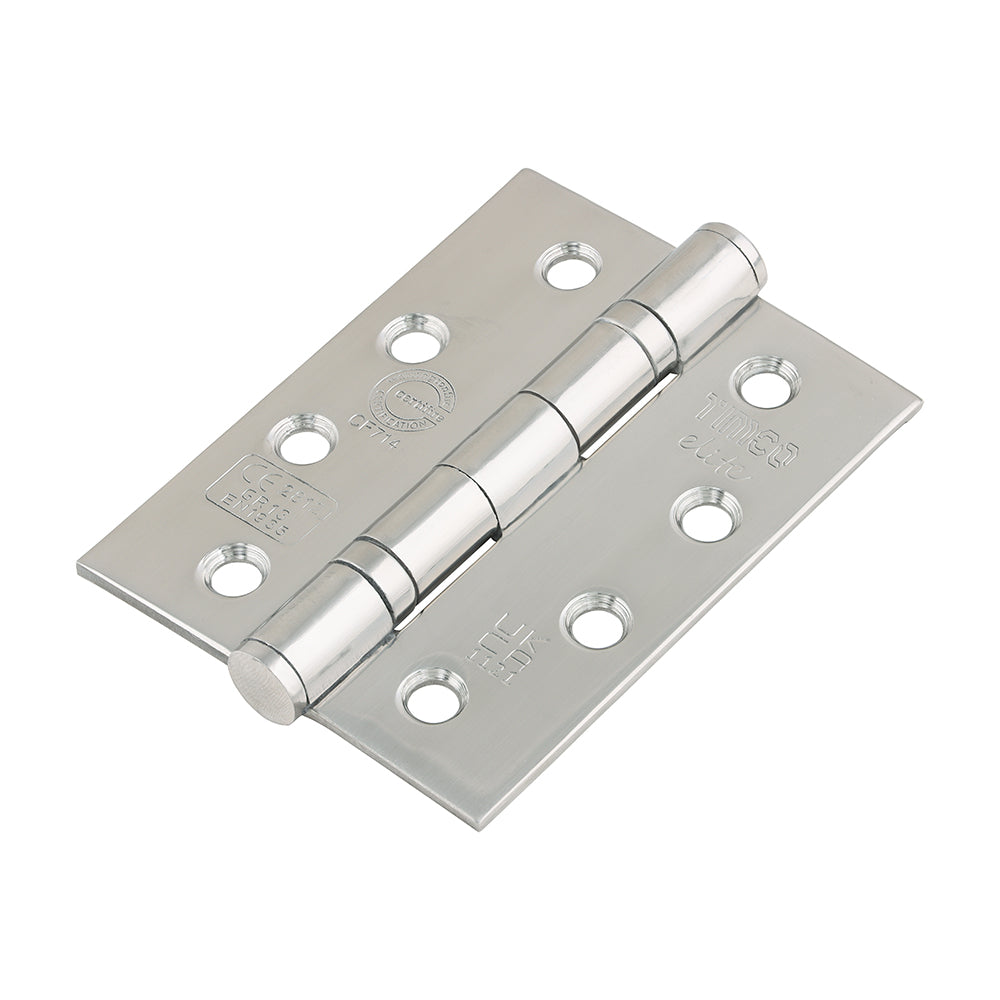

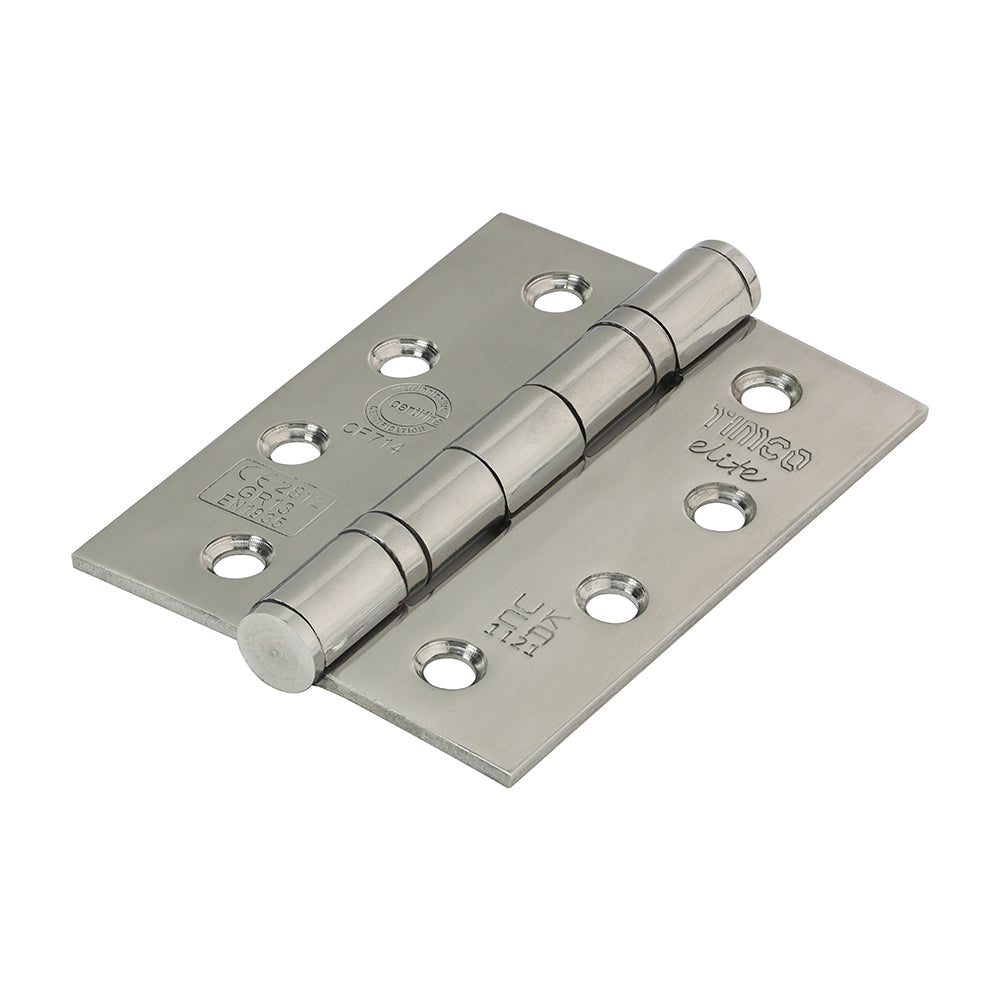

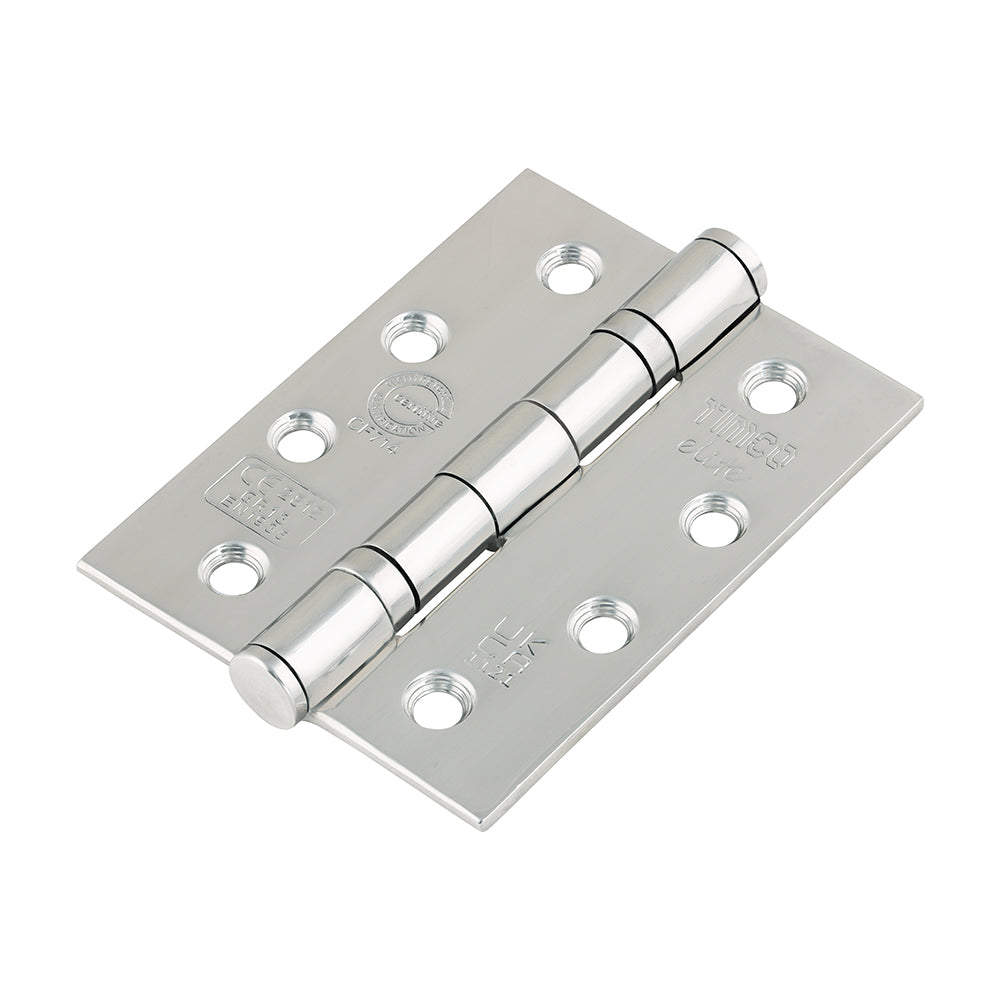

TIMCO Grade 13 Ball Bearing Fire Door Hinge – polished stainless steel
A grade 13 ball bearing butt hinge for fire doors, made from stainless steel. It suits doors up to 120kg, including 30 and 60 minute fire doors, and is tested to 200,000 cycles for heavy-traffic doors. Sold by the pair or 1.5 pairs (3 hinges), boxed or in a blister pack.
Key features
- Smooth ball bearing action
- Suitable for 30 and 60 minute fire doors
- Tested to 200,000 cycles – for heavy traffic doors
- CE approved – BS EN 1935
- Made from stainless steel
Typical applications
- Fire doors (30 and 60 minute)
- Heavy-traffic doors
Technical information
| Property | Value |
|---|---|
| Hinge grade | 13 |
| Size (L x W) | 101 x 76mm |
| Thickness | 3.0mm |
| Knuckle Ø | 14.2mm |
| Rec. screw | 5.0mm / 10g |
| Max. door weight | 120kg |
| Material | Stainless steel |
| Finish | Polished stainless steel |
Fit with intumescent hinge pads (not included) when hanging fire doors, to meet fire regulations.
Available sizes and packs
| Size | Pack | Code |
|---|---|---|

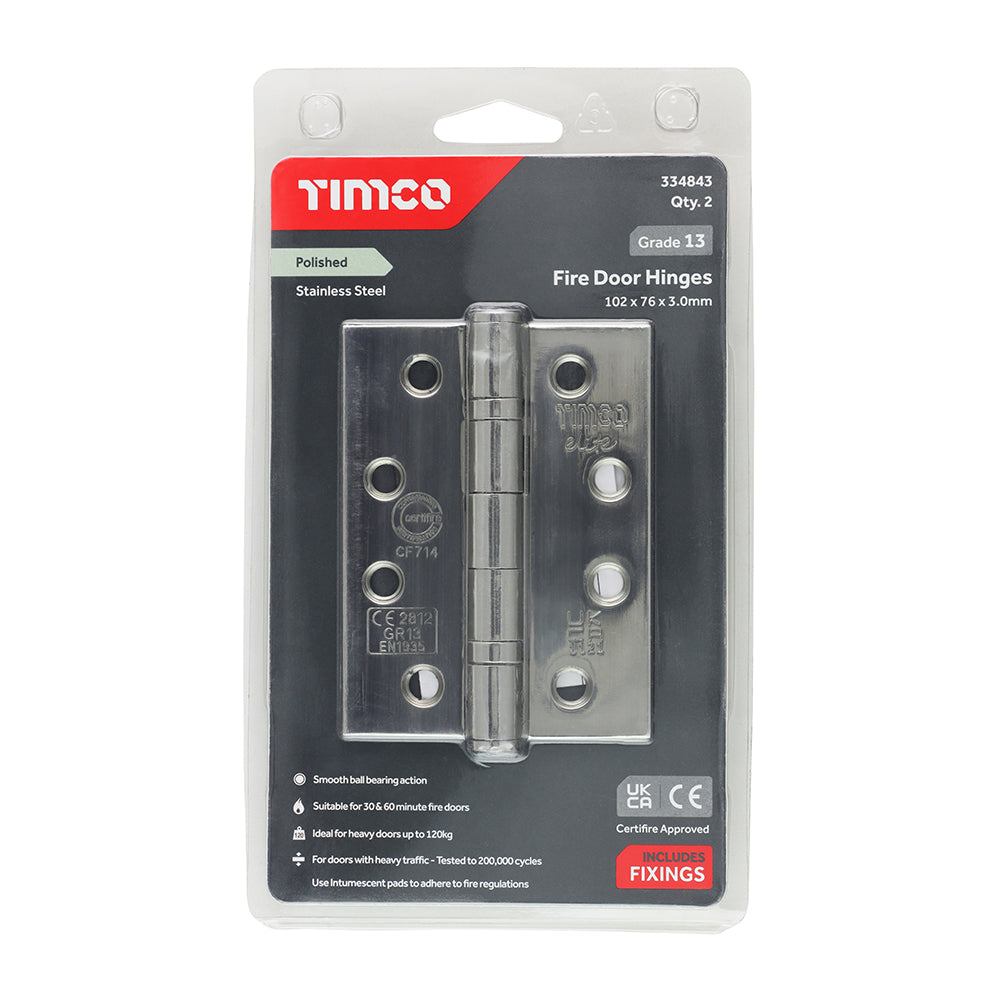

| 101 x 76 x 3 | Blister Pack (1 pair) | 334843 |
| 101 x 76 x 3 | Blister Pack of 1.5 pairs | 334080 |
| 101 x 76 x 3 | Box (1 pair) | 334457 |
| 101 x 76 x 3 | Box of 1.5 pairs | 334444 |
