TIMCO 7 Fire Door Hinge

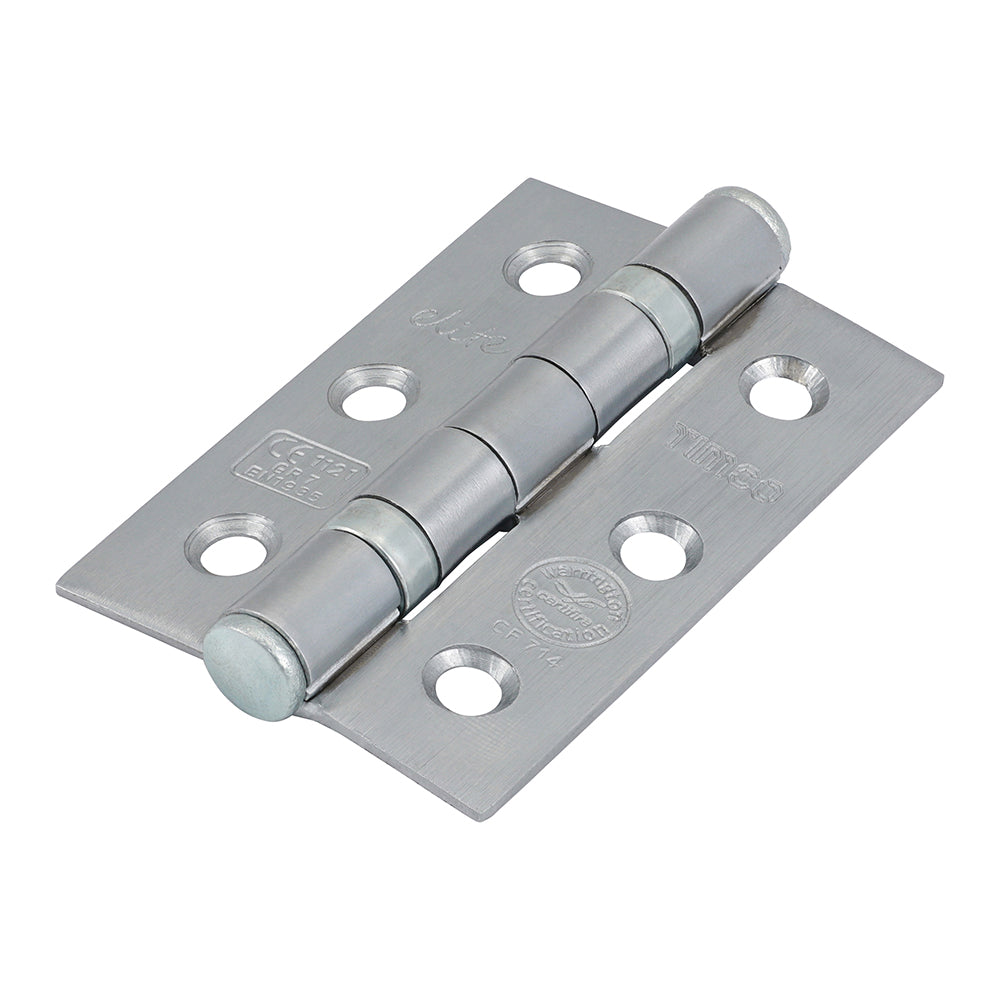

TIMCO Grade 7 Ball Bearing Fire Door Hinge – Electro brass, polished chrome, satin chrome, satin nickel
A grade 7 ball bearing butt hinge for fire doors, made from steel. It suits doors up to 40kg, including 30 and 60 minute fire doors, and is tested to 200,000 cycles for heavy-traffic doors. Sold by the pair, boxed or in a TIMpac.
Key features
- Smooth ball bearing action
- Suitable for 30 and 60 minute fire doors
- Tested to 200,000 cycles – for heavy traffic doors
- CE approved – BS EN 1935
- Made from steel
Typical applications
- Fire doors (30 and 60 minute)
- Heavy-traffic doors
Technical information
| Property | Value |
|---|---|
| Hinge grade | 7 |
| Size (L x W) | 76 x 50mm |
| Thickness | 2.0mm |
| Knuckle Ø | 11.0mm |
| Rec. screw | 4.5mm |
| Max. door weight | 40kg |
| Material | Steel |
| Finish | Electro brass, polished chrome, satin chrome, satin nickel |
Fit with intumescent hinge pads (not included) when hanging fire doors, to meet fire regulations.
Available sizes and packs
| Finish | Size | Pack | Code |
|---|---|---|---|

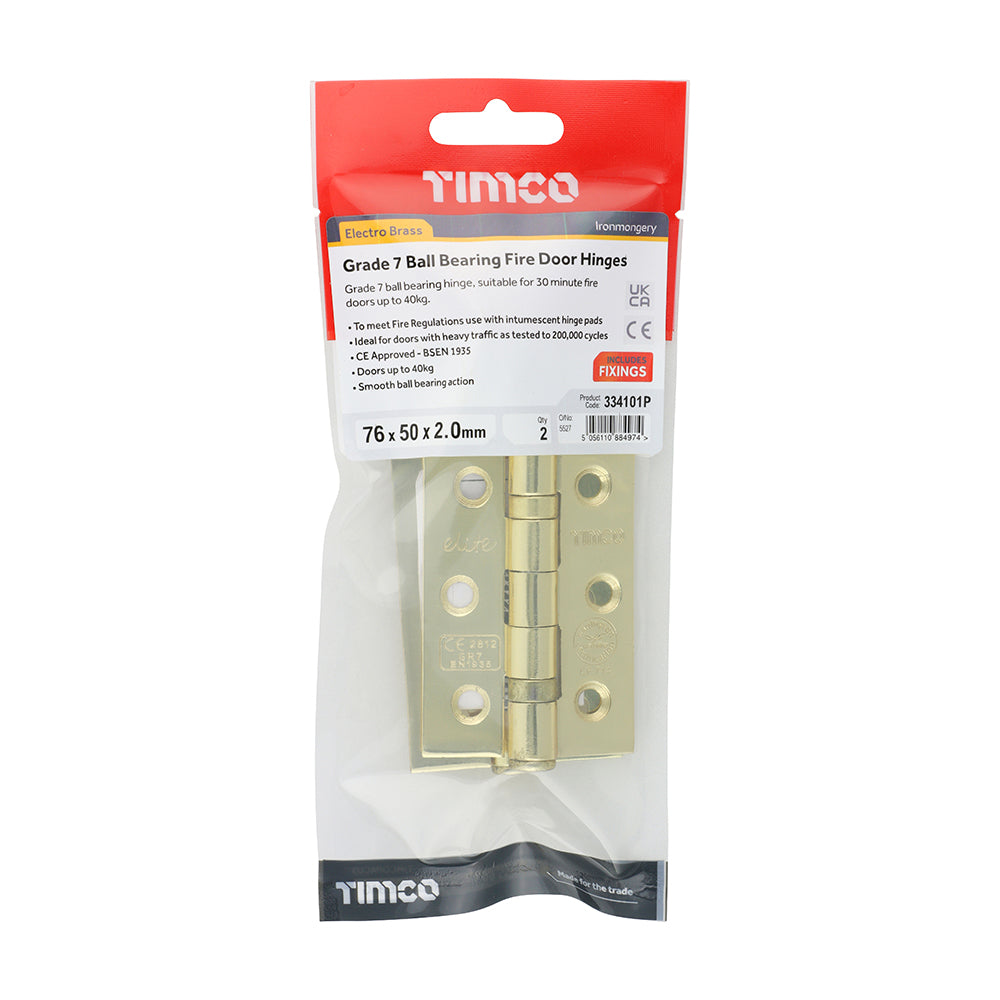

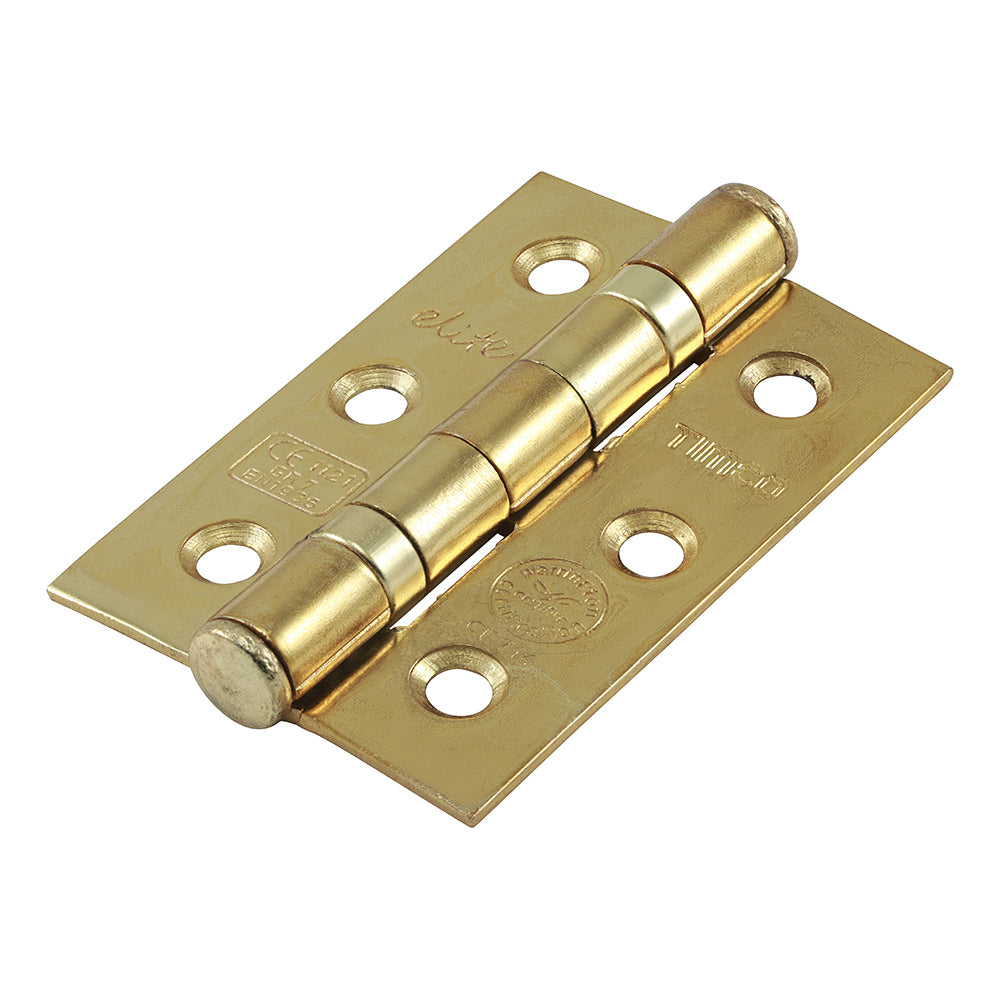

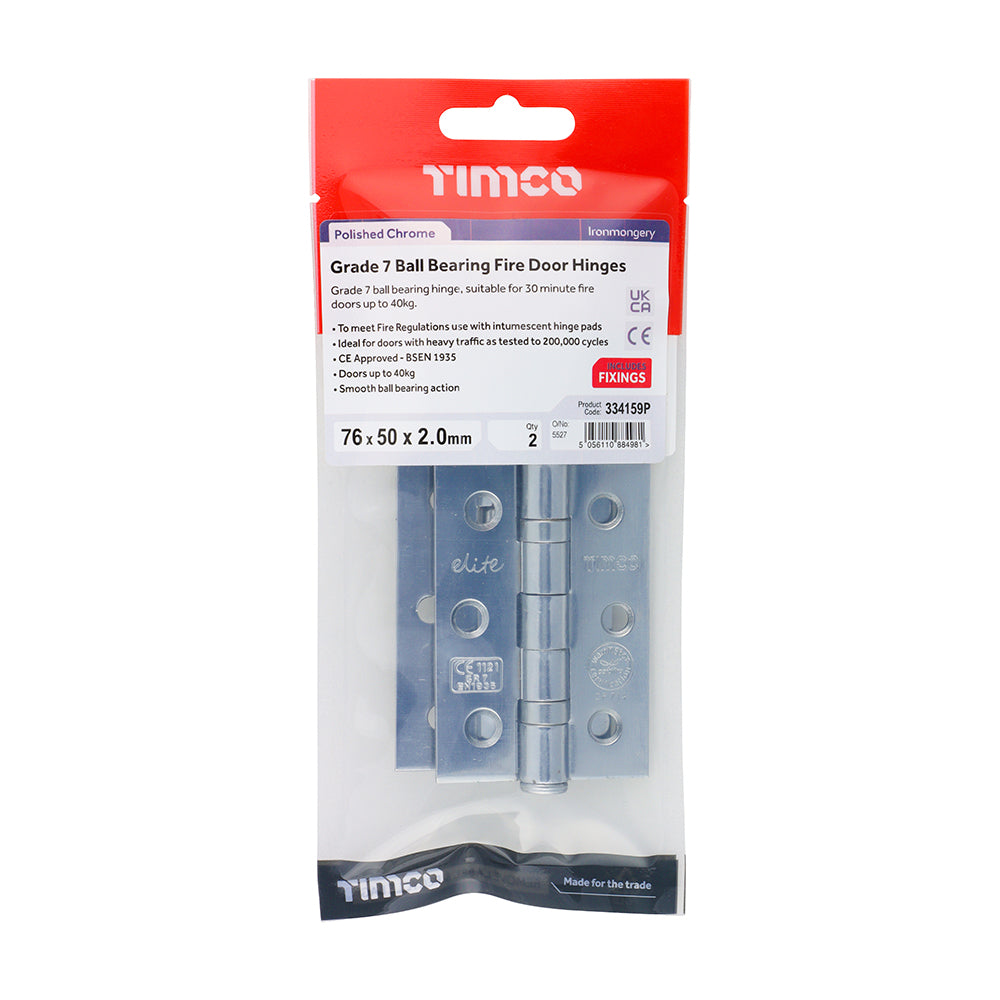

| E. Brass | 76 x 50 x 2.0 | TIMpac (1 pair) | 334101P |

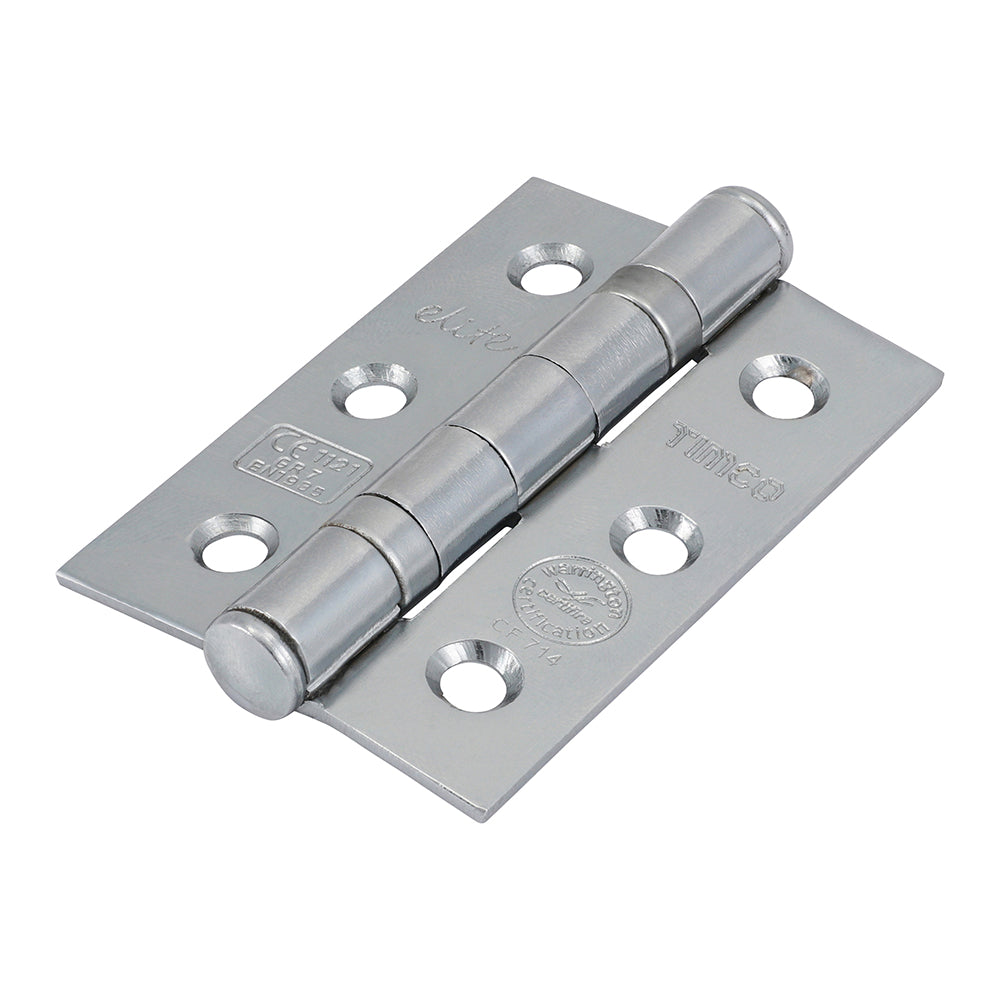

| PC | 76 x 50 x 2.0 | TIMpac (1 pair) | 334159P |

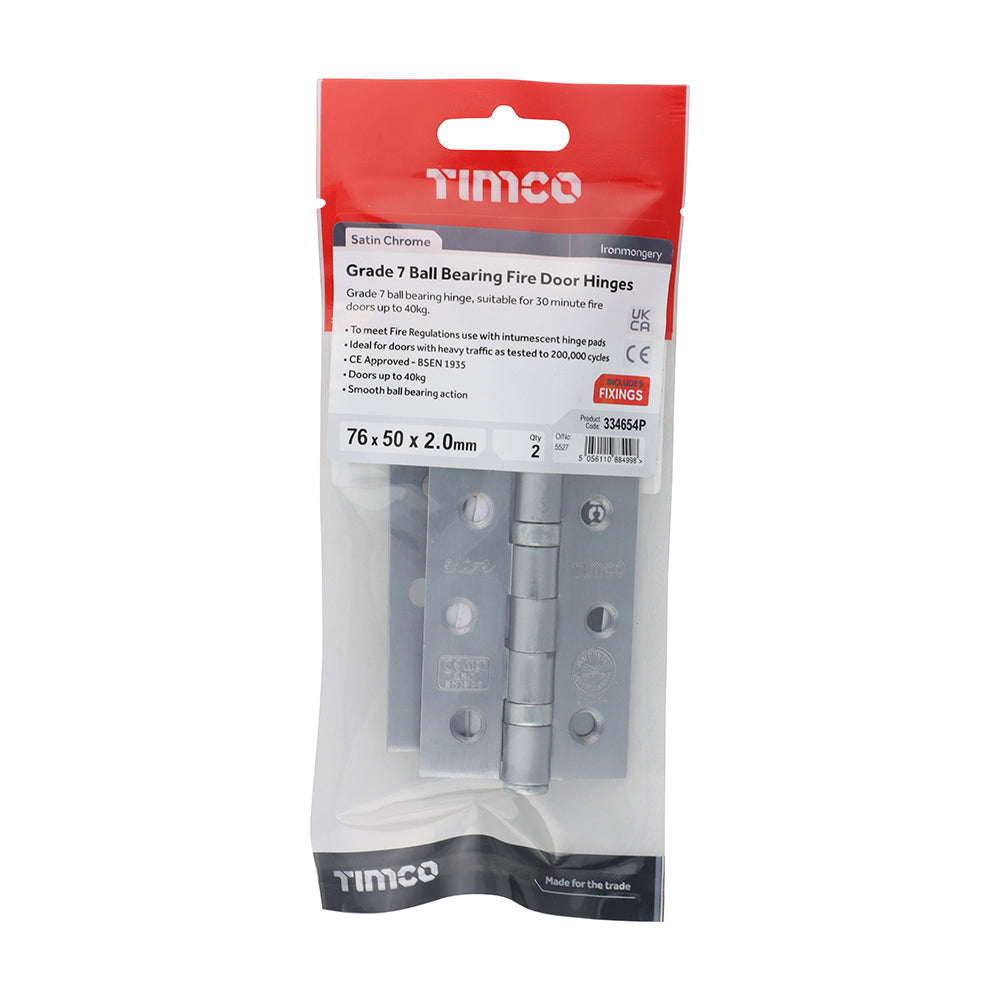

| SC | 76 x 50 x 2.0 | TIMpac (1 pair) | 334654P |

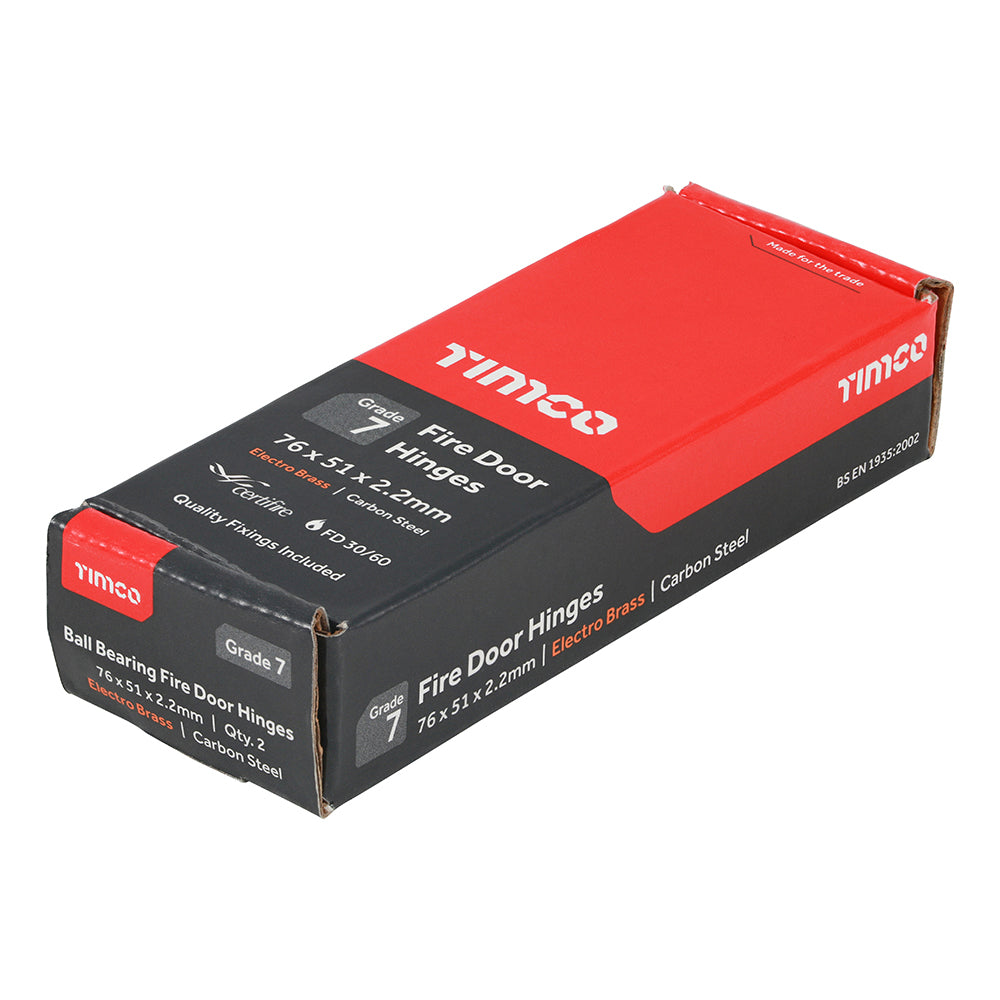

| E. Brass | 76 x 50 x 2.0 | Box (1 pair) | 334101 |

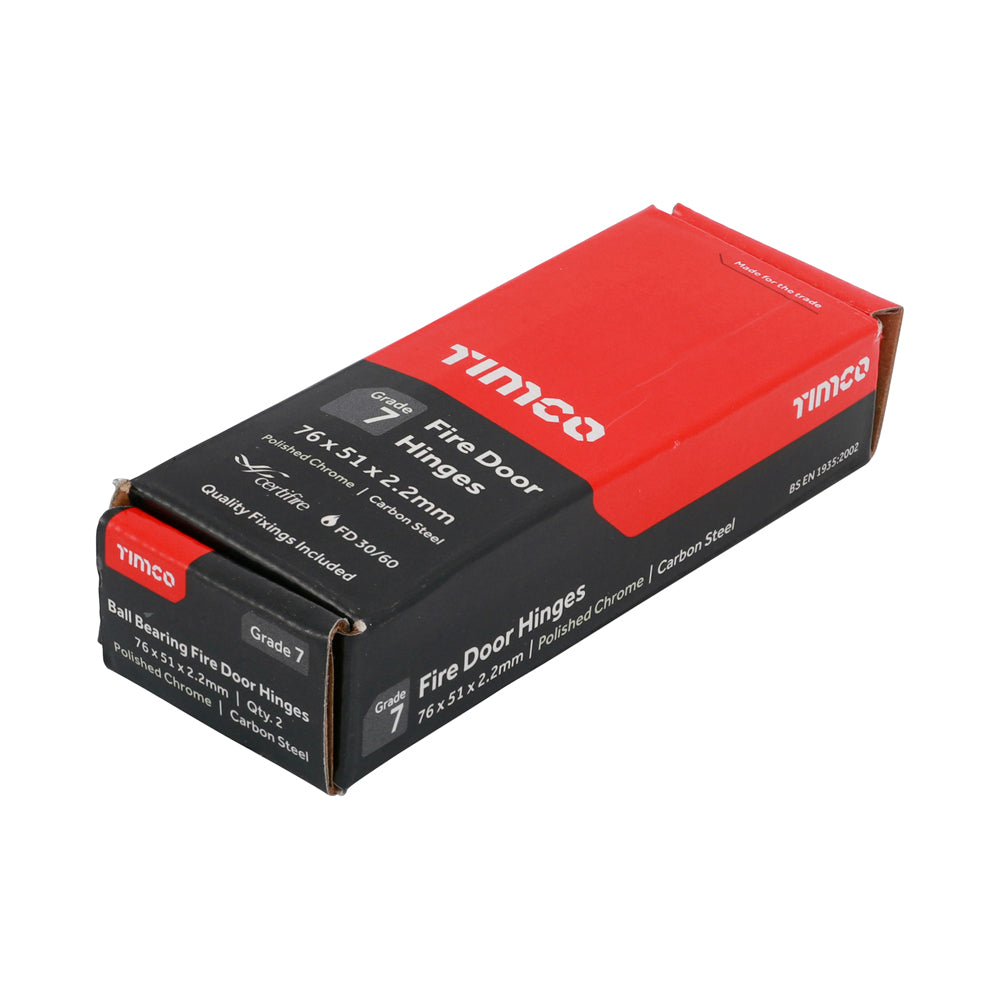

| PC | 76 x 50 x 2.0 | Box (1 pair) | 334159 |

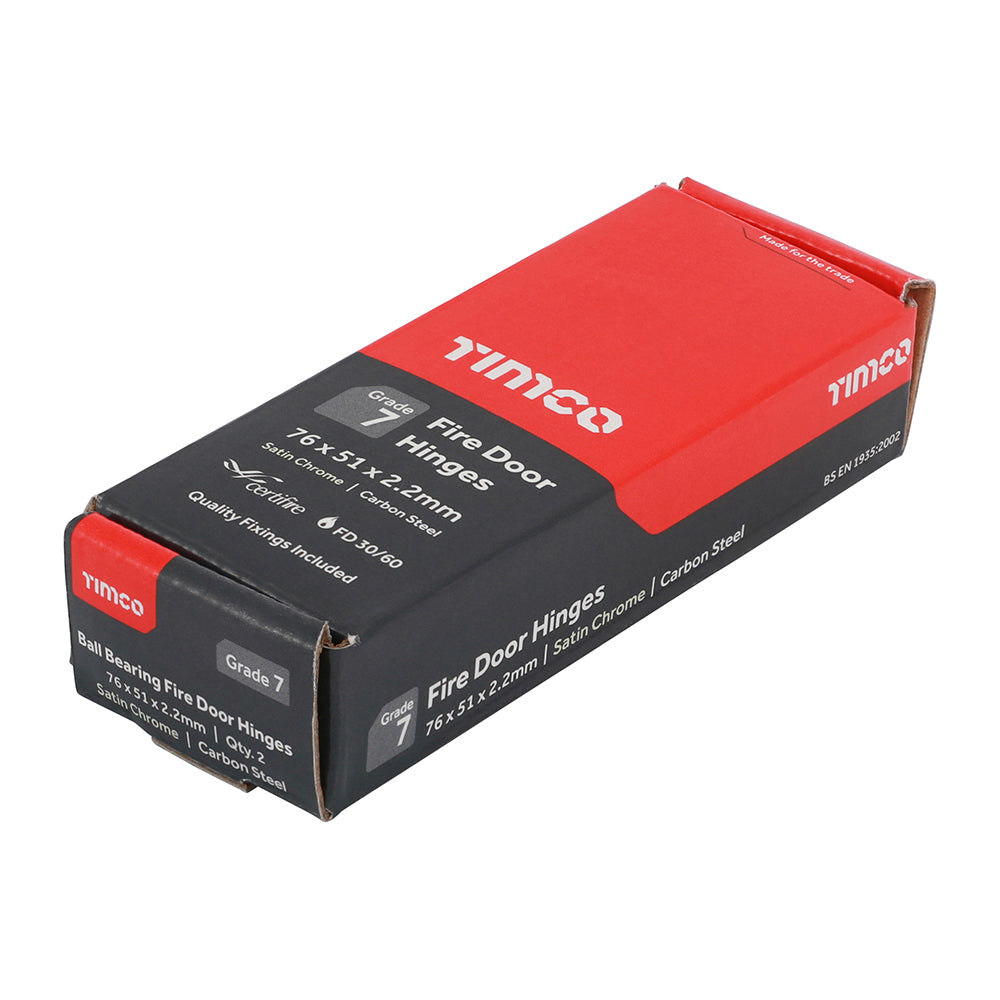

| SC | 76 x 50 x 2.0 | Box (1 pair) | 334654 |

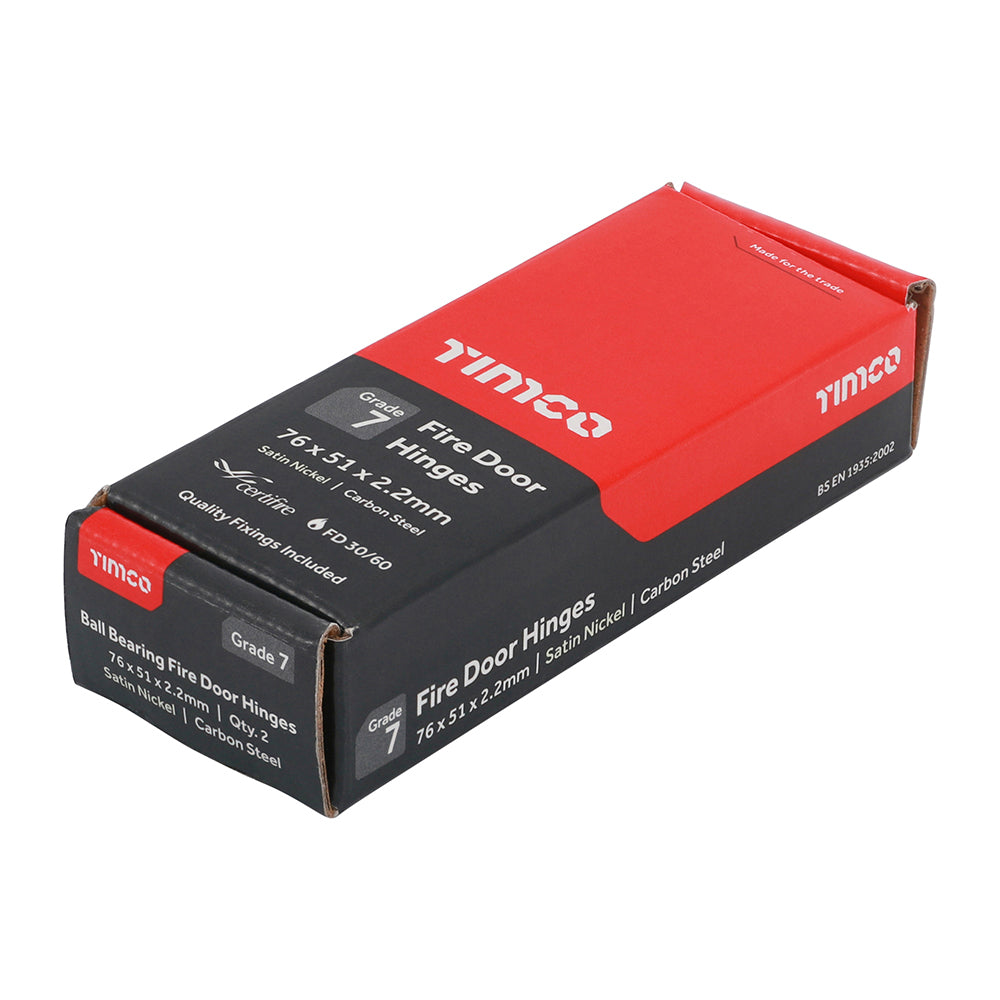

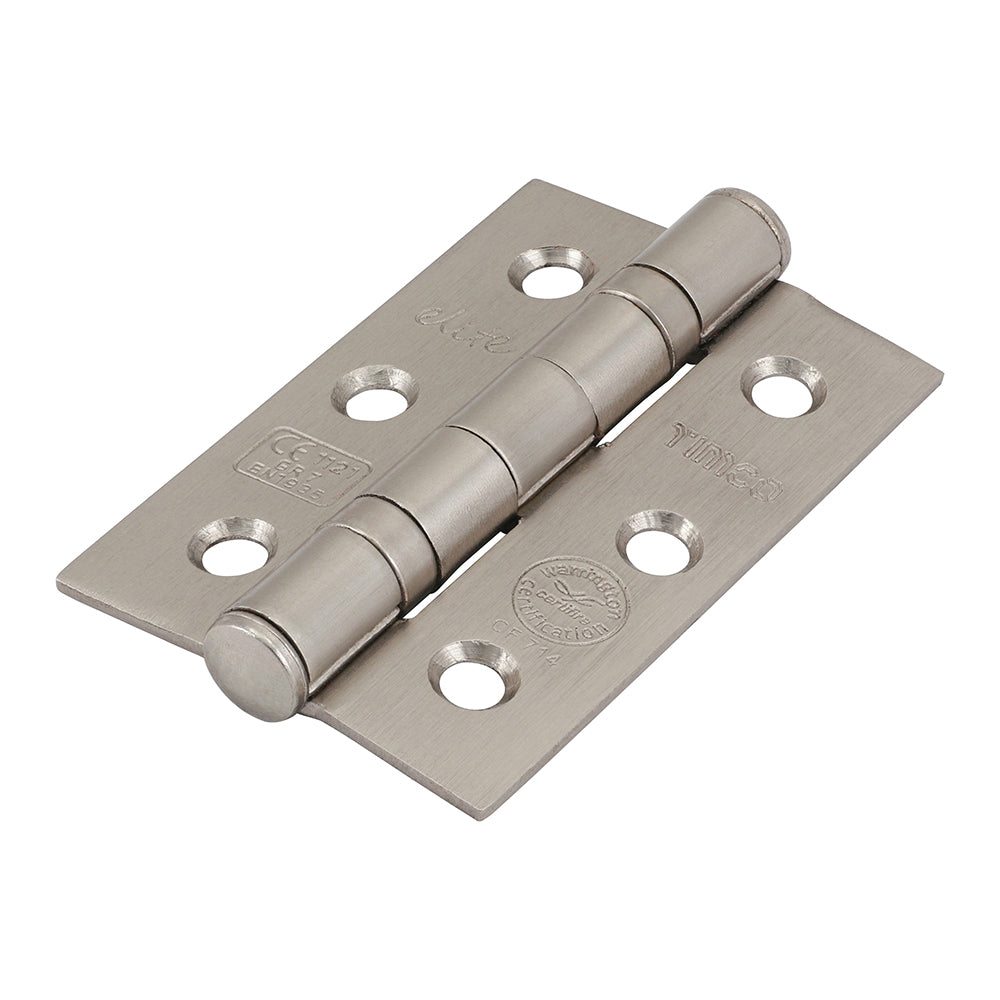

| SN | 76 x 50 x 2.0 | Box (1 pair) | 334789 |
