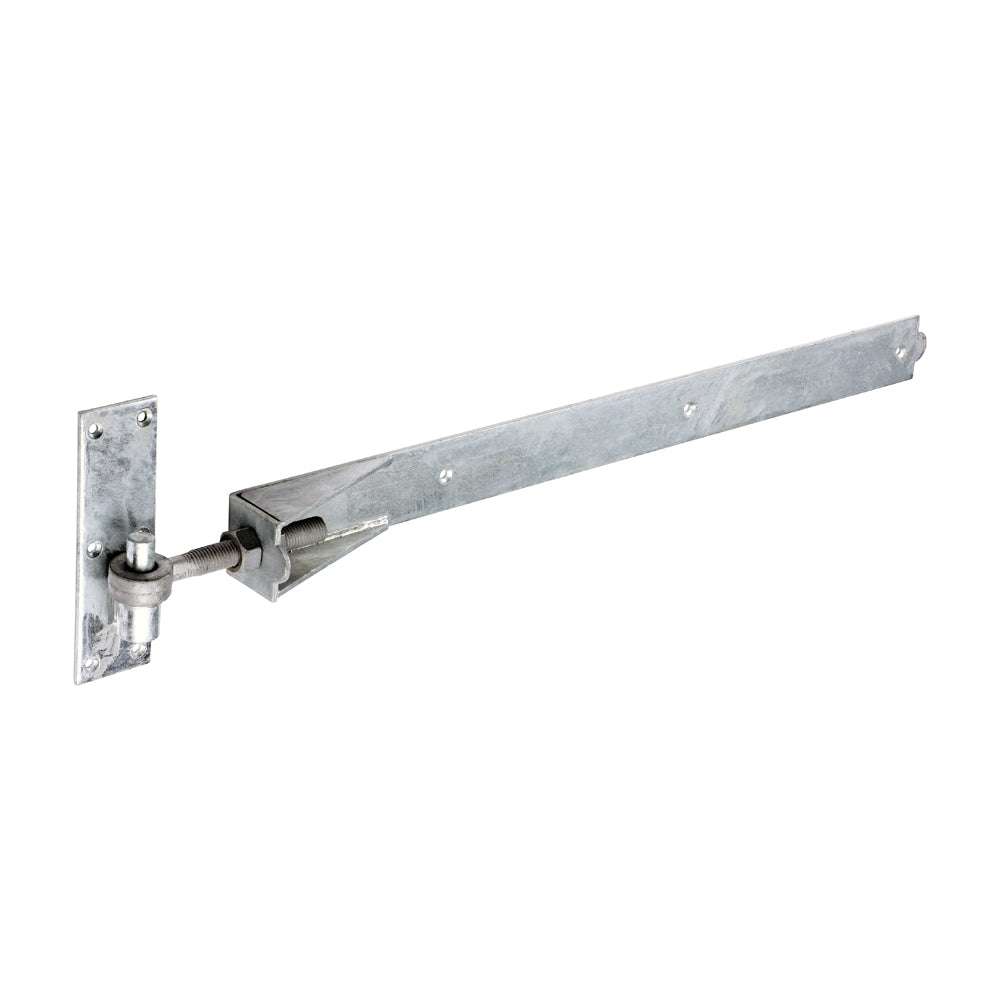

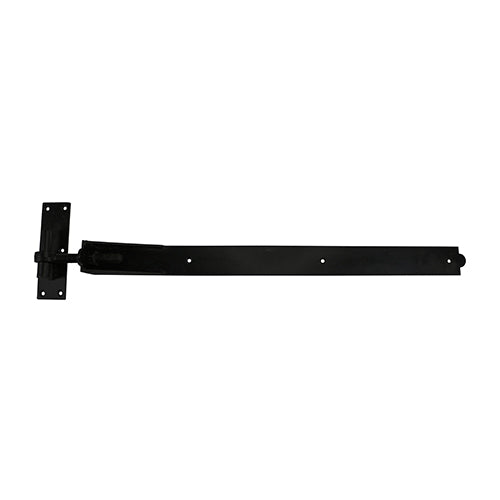

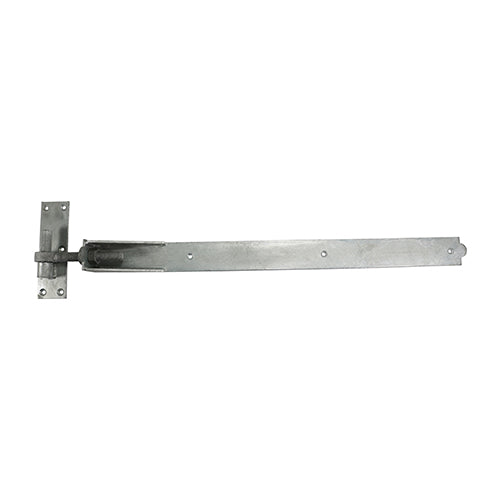

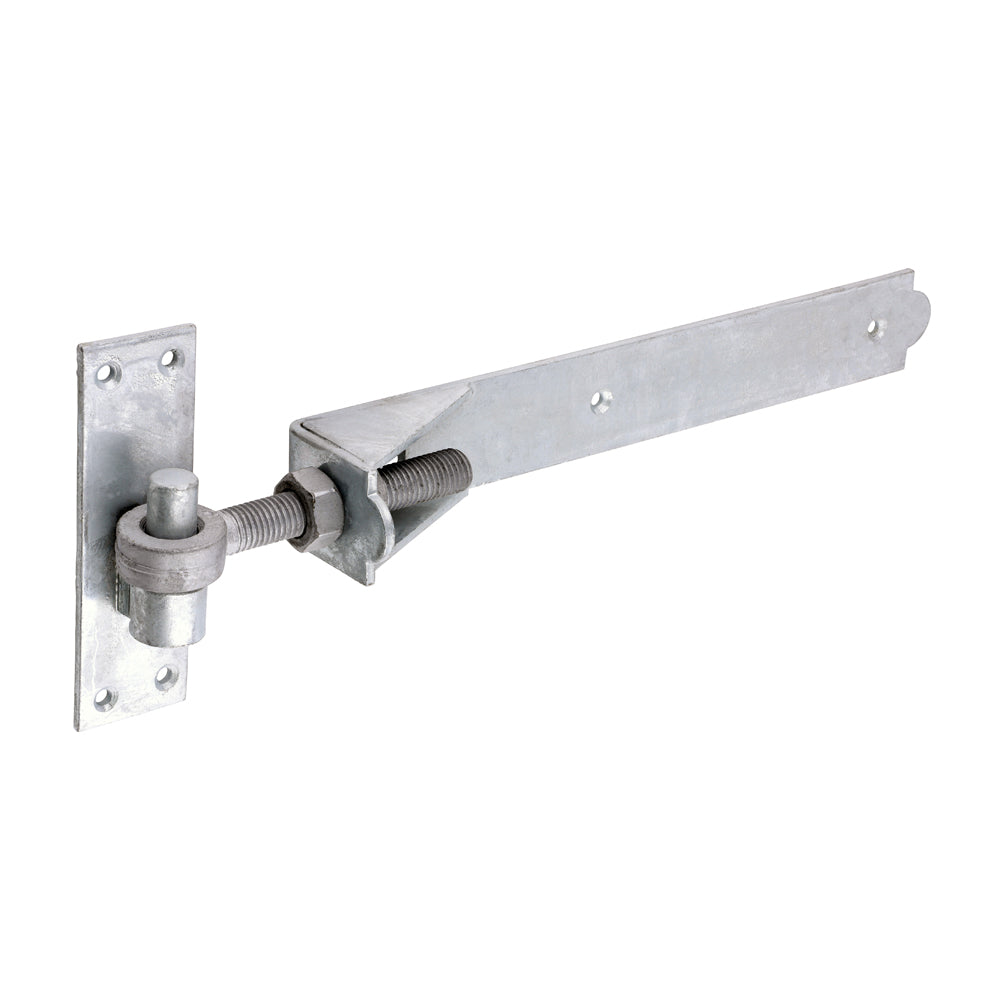

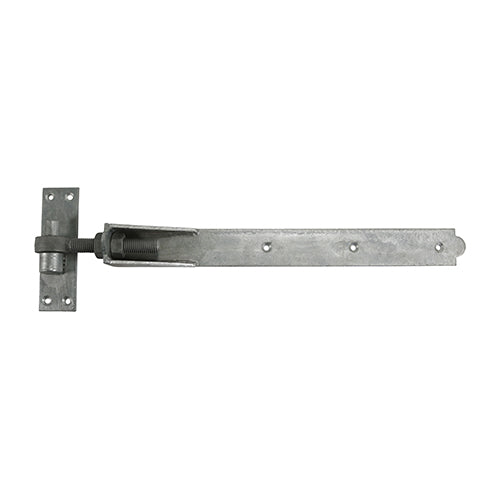

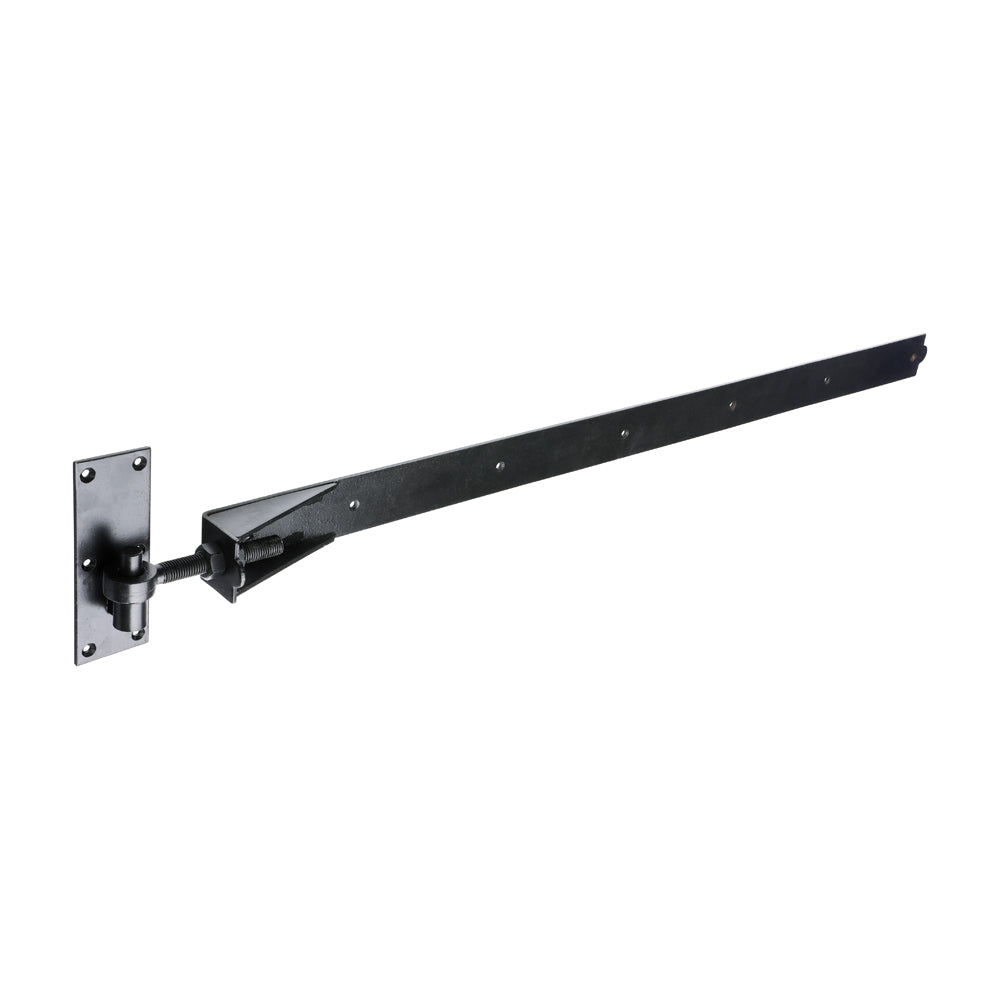

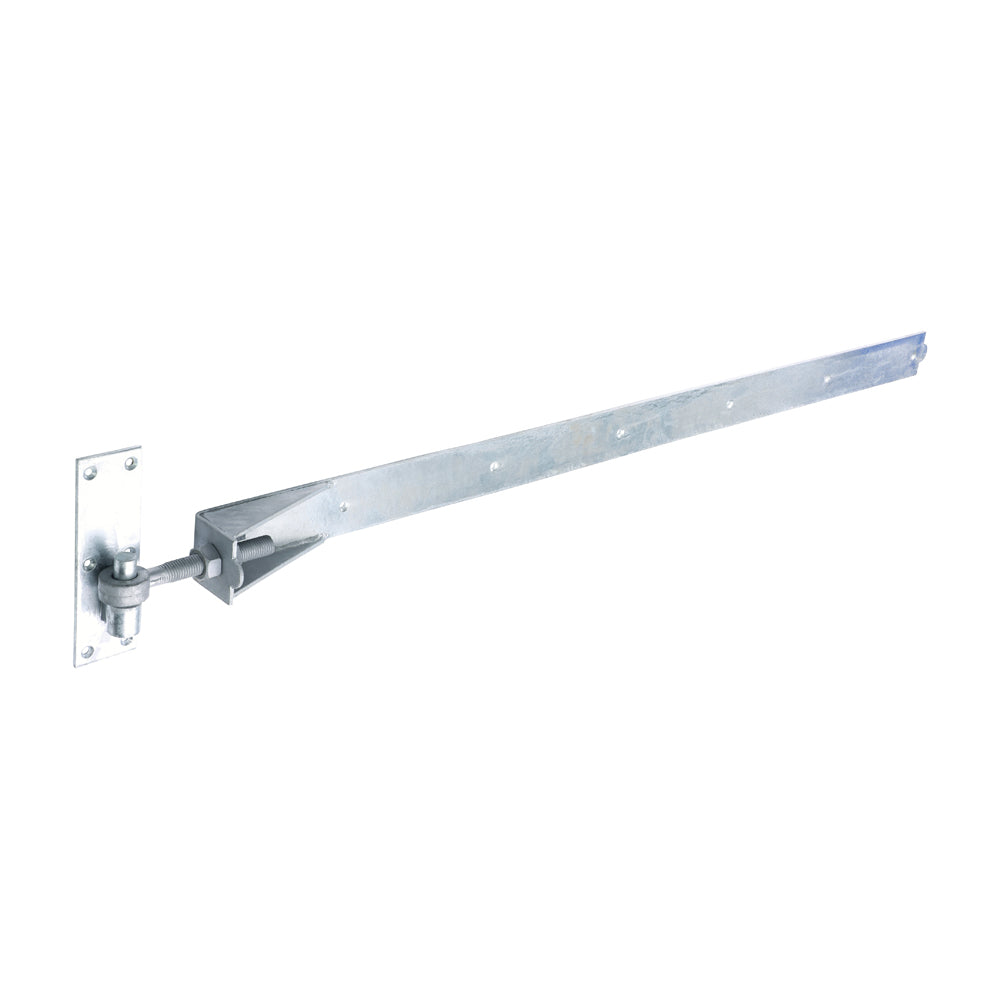

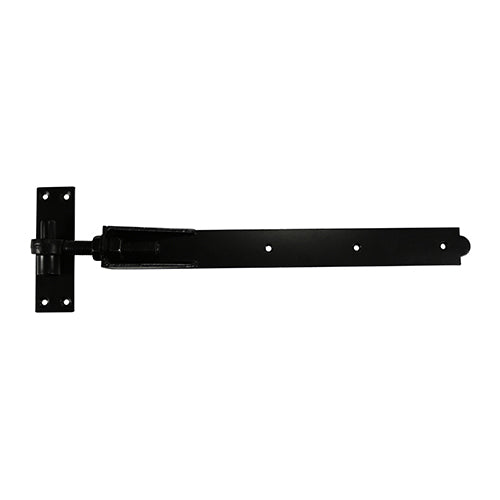

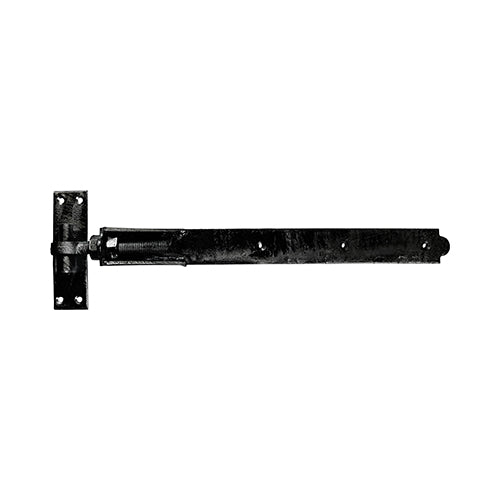

TIMCO Adjustable Band Hook Plate
TIMCO Adjustable Band & Hook on Plate – pair
Adjustable hook and band hinges for hanging doors or gates flush with the frame or post. Ideal for heavy weight, high use doors, gates, garages and stables in domestic, commercial and agricultural settings. An adjustable eye bolt allows the gate to be aligned during fitting, or later if it moves. Sold as a pair with fixings included.
Key features
- Adjustable eye bolt for gate alignment
- 5.0mm band; 19mm (¾") pin
- M10 carriage bolt and 6.0mm screw fixing
- Epoxy black or hot dipped galvanised
- Fixings included
- Doors and gates over 7ft high should be fitted with a third hinge to prevent warping.
Typical applications
- Heavy gates and doors
- Garages and stables
Sizes
| Band length | Band width | Hook plate (L x W) | Screw holes (pair) |
|---|---|---|---|
| 350mm (14") | 50mm | 160 x 50mm | 12 |
| 450mm (18") | 50mm | 160 x 50mm | 14 |
| 600mm (24") | 50mm | 200 x 60mm | 14 |
| 750mm (30") | 60mm | 200 x 60mm | 14 |
| 900mm (36") | 60mm | 200 x 60mm | 18 |
| 1200mm (48") | 70mm | 200 x 60mm | 20 |
Available sizes and packs
| Finish | Size | Pack | Code |
|---|---|---|---|
| Black | 350mm | Plain Bag (1 pair) | ABH350B |
| Black | 450mm | Plain Bag (1 pair) | ABH450B |
| Black | 600mm | Plain Bag (1 pair) | ABH600B |
| Black | 750mm | Plain Bag (1 pair) | ABH750B |
| Black | 900mm | Plain Bag (1 pair) | ABH900B |
| Black | 1200mm | Plain Bag (1 pair) | ABH1200B |
| HDG | 350mm | Plain Bag (1 pair) | ABH350G |
| HDG | 450mm | Plain Bag (1 pair) | ABH450G |
| HDG | 600mm | Plain Bag (1 pair) | ABH600G |
| HDG | 750mm | Plain Bag (1 pair) | ABH750G |
| HDG | 900mm | Plain Bag (1 pair) | ABH900G |
| HDG | 1200mm | Plain Bag (1 pair) | ABH1200G |
