TIMCO Ceiling Anchor - Zinc
TIMCO Ceiling Anchor – Zinc

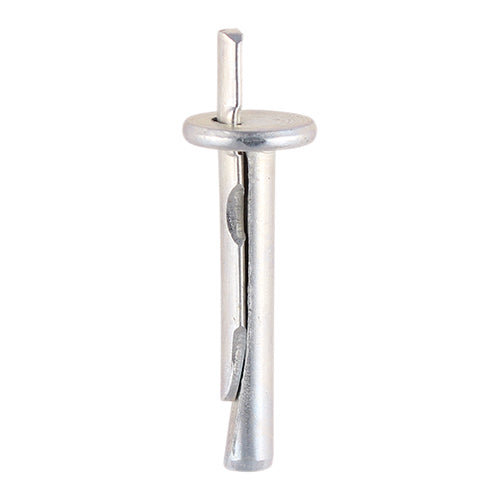

A quick, light-duty TIMCO hammer-set anchor for fixing sheet metal, plastic or timber to concrete or masonry. It is made from steel, which makes it ideal for overhead work.
Key features
- Steel hammer-set anchor
- Ideal for overhead applications
- Sizes 6.0 x 40mm and 6.0 x 65mm
- Box of 100
Typical applications
- Fixing sheet metal, plastic or timber to concrete ceilings and soffits
Technical information
| Property | Value |
|---|---|
| Substrate tested | Concrete ≥ 25N/mm² |
| Drill hole Ø | 6mm |
| Fixture clearance hole Ø | 6.5mm |
| Min. embedment depth | 35mm |
| Min. drill hole depth | 45mm |
| Max. rec. load | 72kg (0.72kN) |
How to fit
- Drill a hole of the required diameter.
- Push the anchor through the fixture into the hole.
- Hammer the wedge into the anchor to secure it.
Sizes
| Size Ø x L (mm) | Max. fixture thickness (mm) |
|---|---|
| 6.0 x 40 | 5 |
| 6.0 x 65 | 30 |
Available sizes and packs
| Size (mm) | Max. fixture thickness (mm) | Pack | Code |
|---|---|---|---|
| 6.0 x 40 | 5 | Box of 100 | 0640CAM |
| 6.0 x 65 | 30 | Box of 100 | 0665CAM |
