TIMCO Chemical Anchor Stud
TIMCO Chemical Anchor Stud

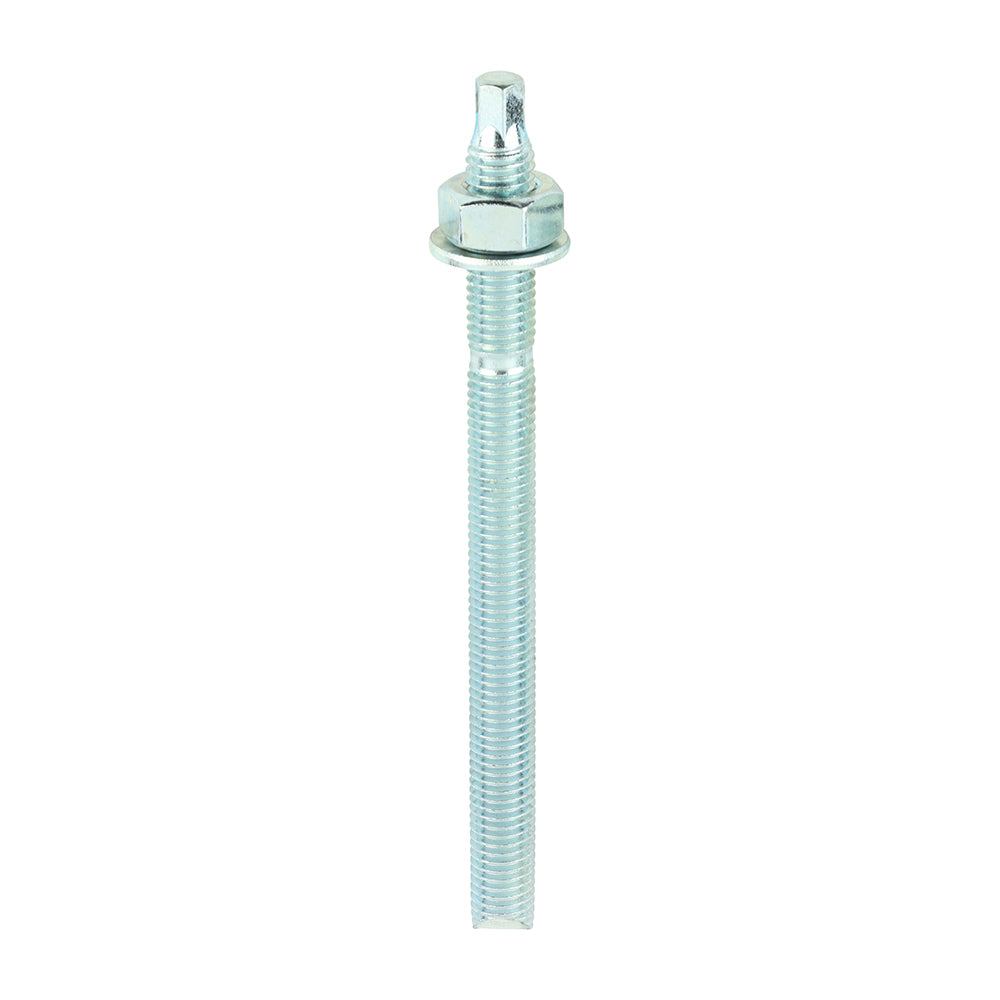

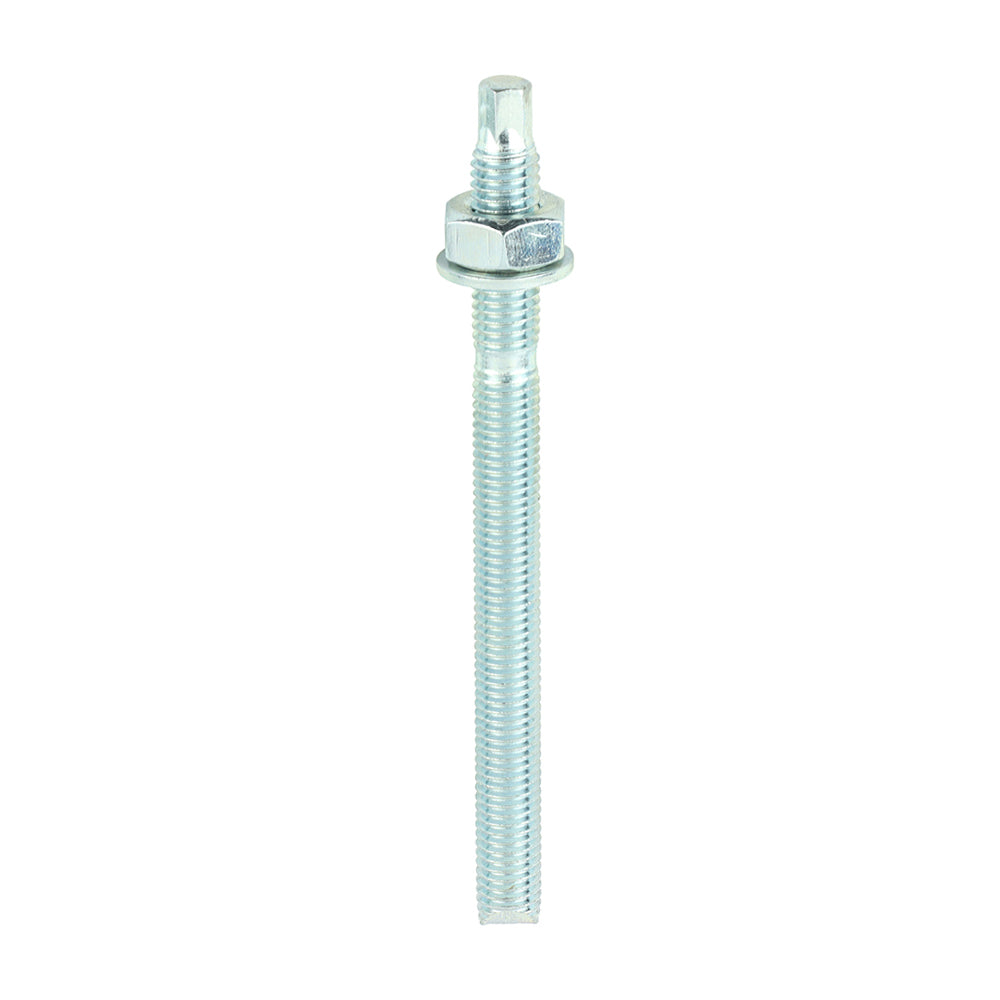

TIMCO threaded studs designed for fixing with chemical resins. The chisel point stops the rod turning as you tighten it, and an embedment depth mark shows how far to set it.
Key features
- Chisel point stops the rod turning when tightening
- External hex drive
- Embedment depth mark
- Grade 5.8 steel
- Zinc plated and passivated, or hot-dip galvanised

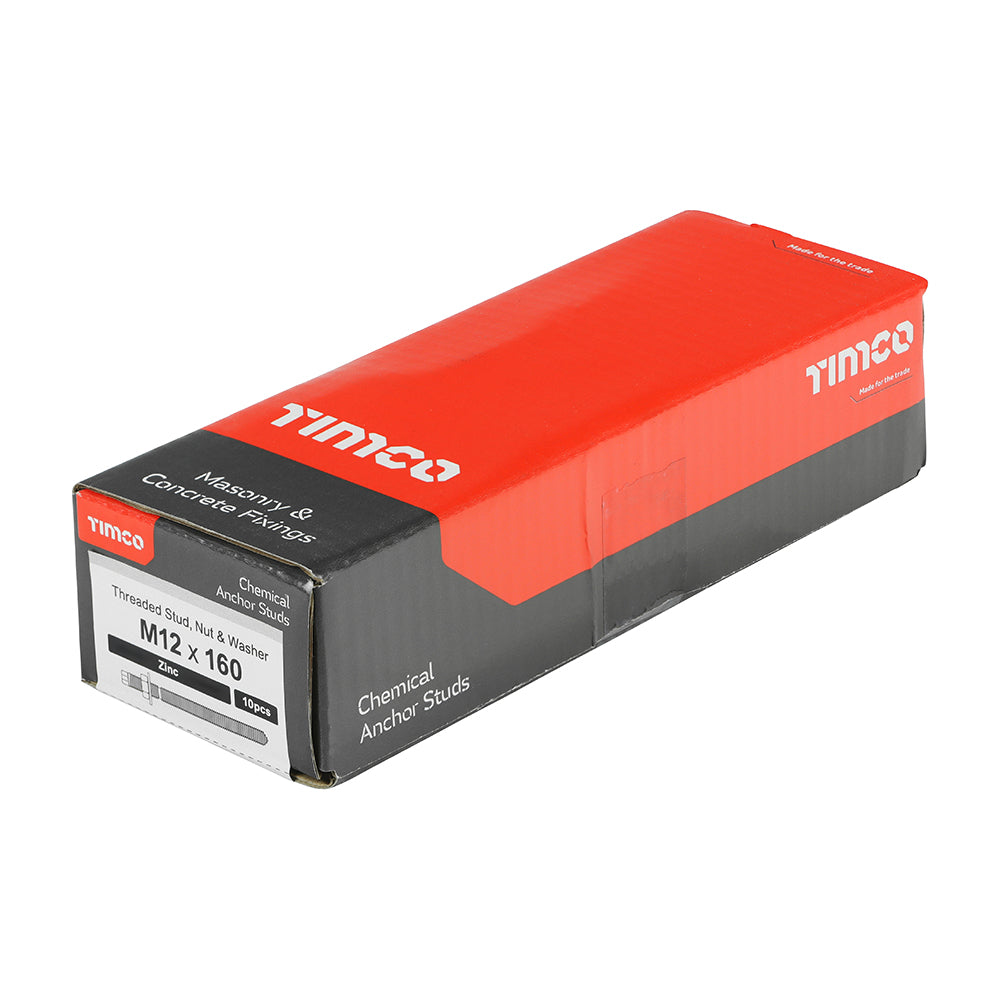

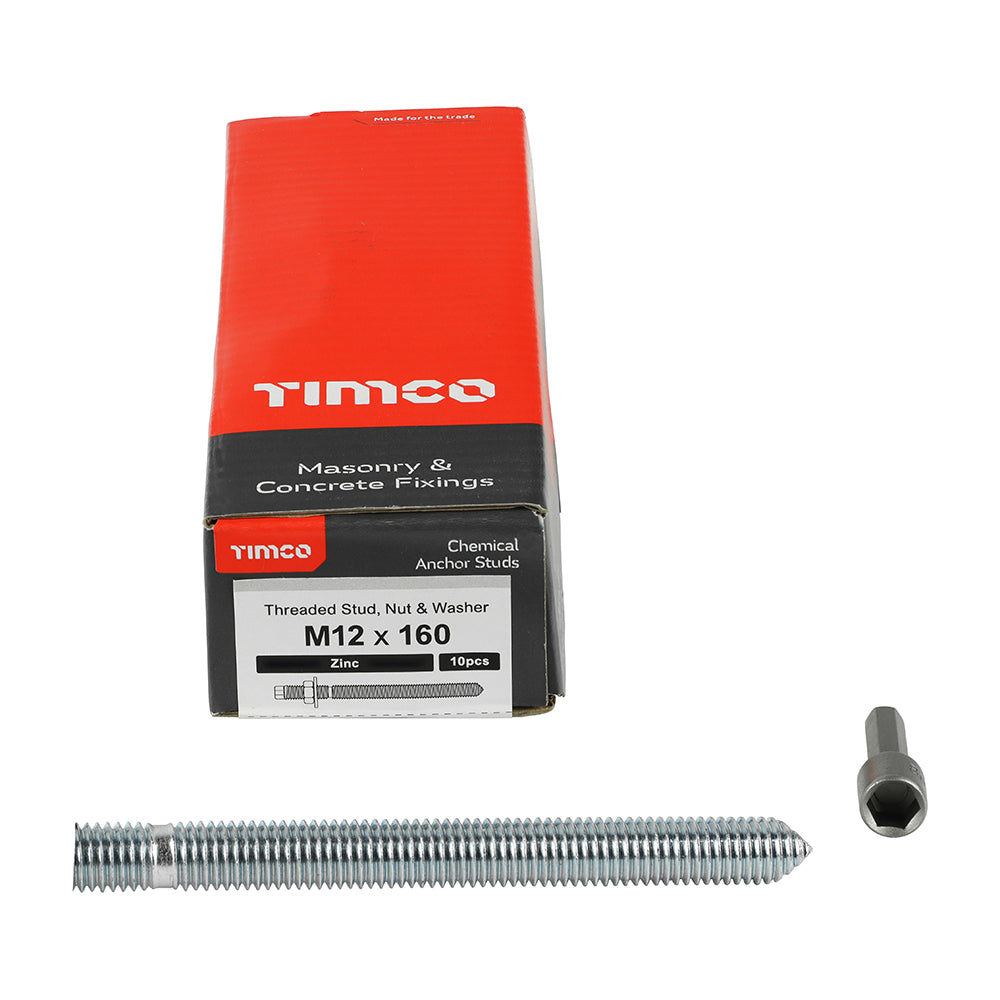

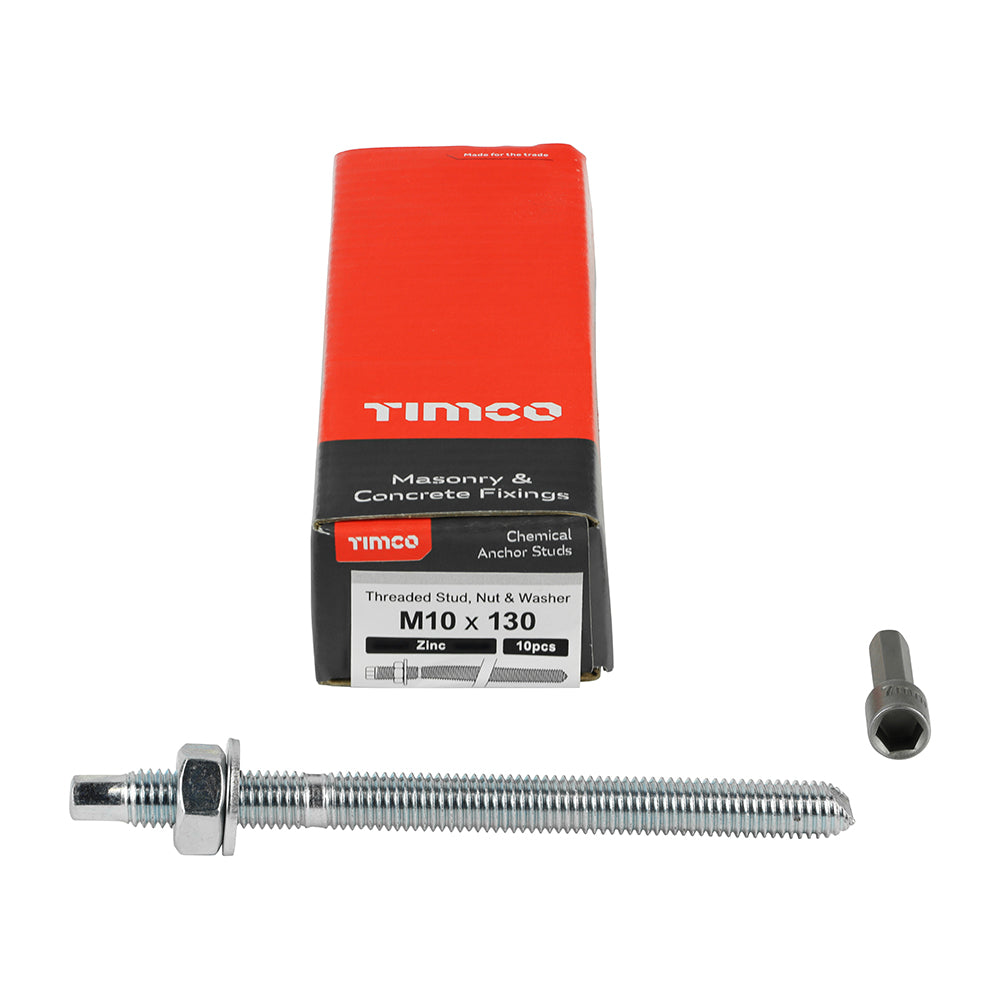

- Boxes include a nut setter
Typical applications
- Resin anchoring into concrete, stone and brick
- Use with TIMCO chemical resins
Sizes
| Size (mm) | Max. fixture thickness (mm) | Min. embedment depth (mm) | Drill hole Ø (mm) | Fixture clearance hole Ø (mm) |
|---|---|---|---|---|
| M8 x 110 | 13 | 80 | 10 | 10 |
| M10 x 130 | 20 | 90 | 12 | 12 |
| M12 x 160 | 25 | 110 | 14 | 14 |
| M16 x 190 | 35 | 125 | 18 | 18 |
Available sizes and packs
| Finish | Size | Pack | Code |
|---|---|---|---|

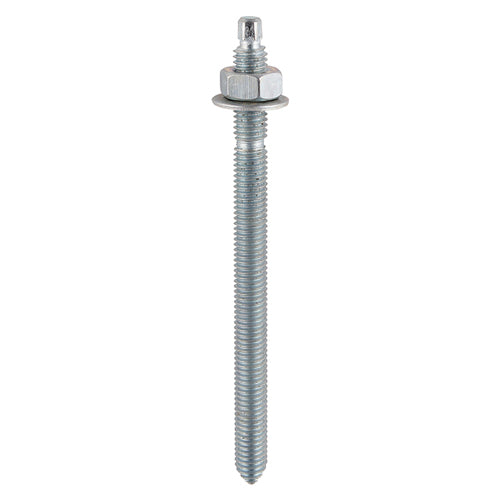

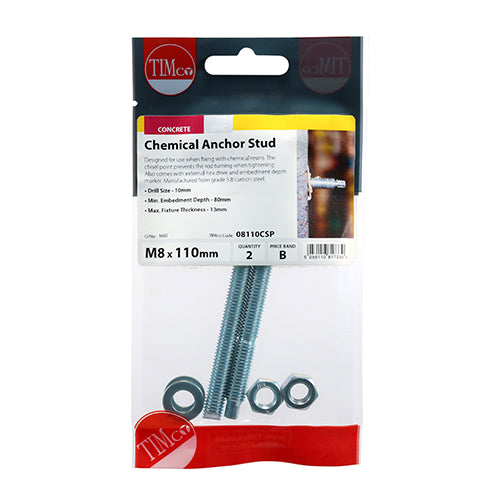

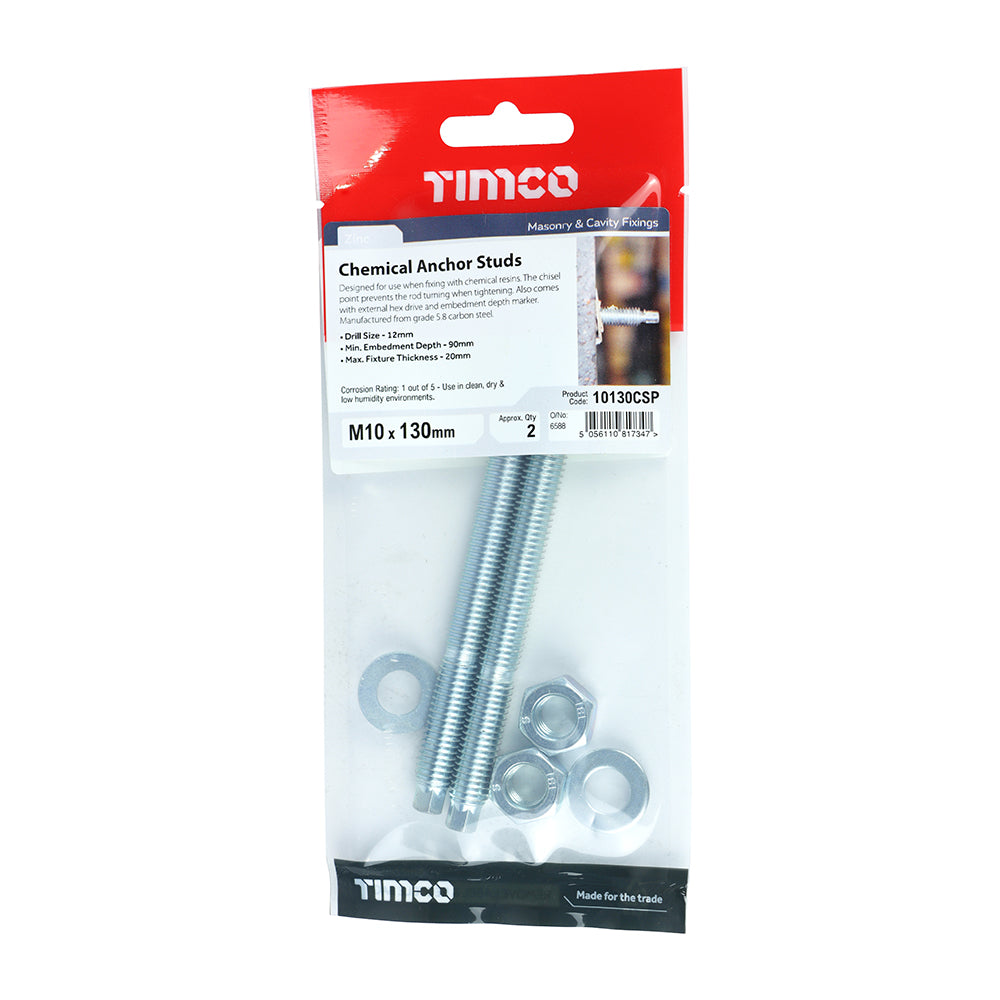

| BZP | M8 x 110 | TIMpac of 2 | 08110CSP |
| BZP | M10 x 130 | TIMpac of 2 | 10130CSP |

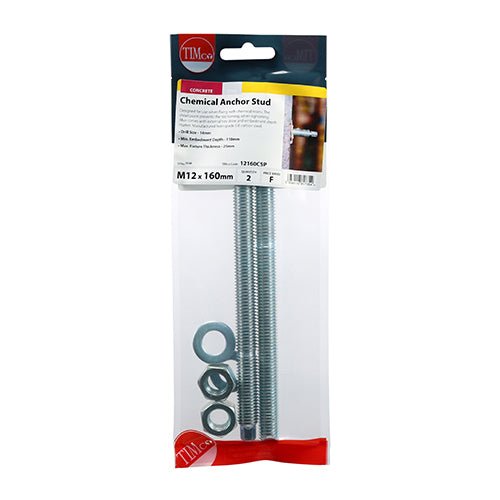

| BZP | M12 x 160 | TIMpac of 2 | 12160CSP |

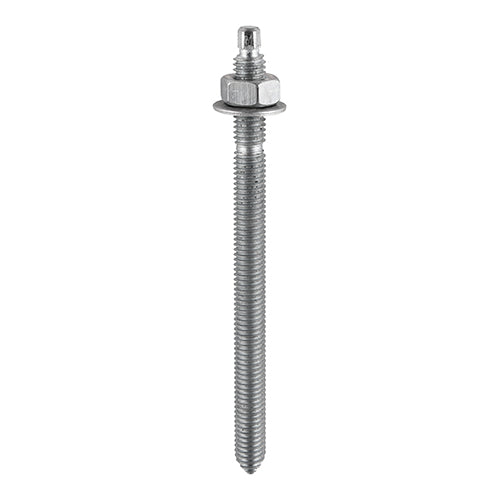

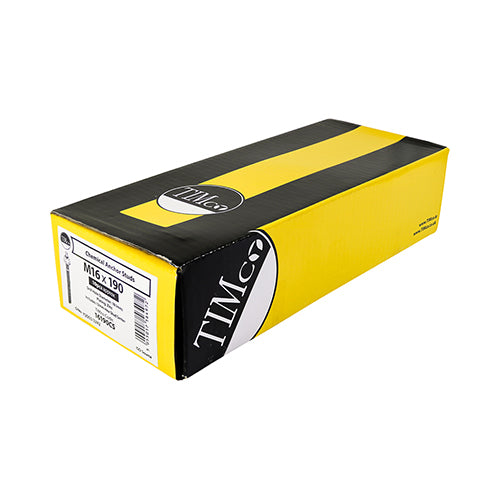

| HDG | M8 x 110 | Box of 10 | 08110CSG |
| HDG | M10 x 130 | Box of 10 | 10130CSG |
| HDG | M12 x 160 | Box of 10 | 12160CSG |
| HDG | M16 x 190 | Box of 10 | 16190CSG |
| HDG | M20 x 260 | Box of 4 | 20270CSG |
| Zinc | M8 x 110 | Box of 10 | 08110CS |

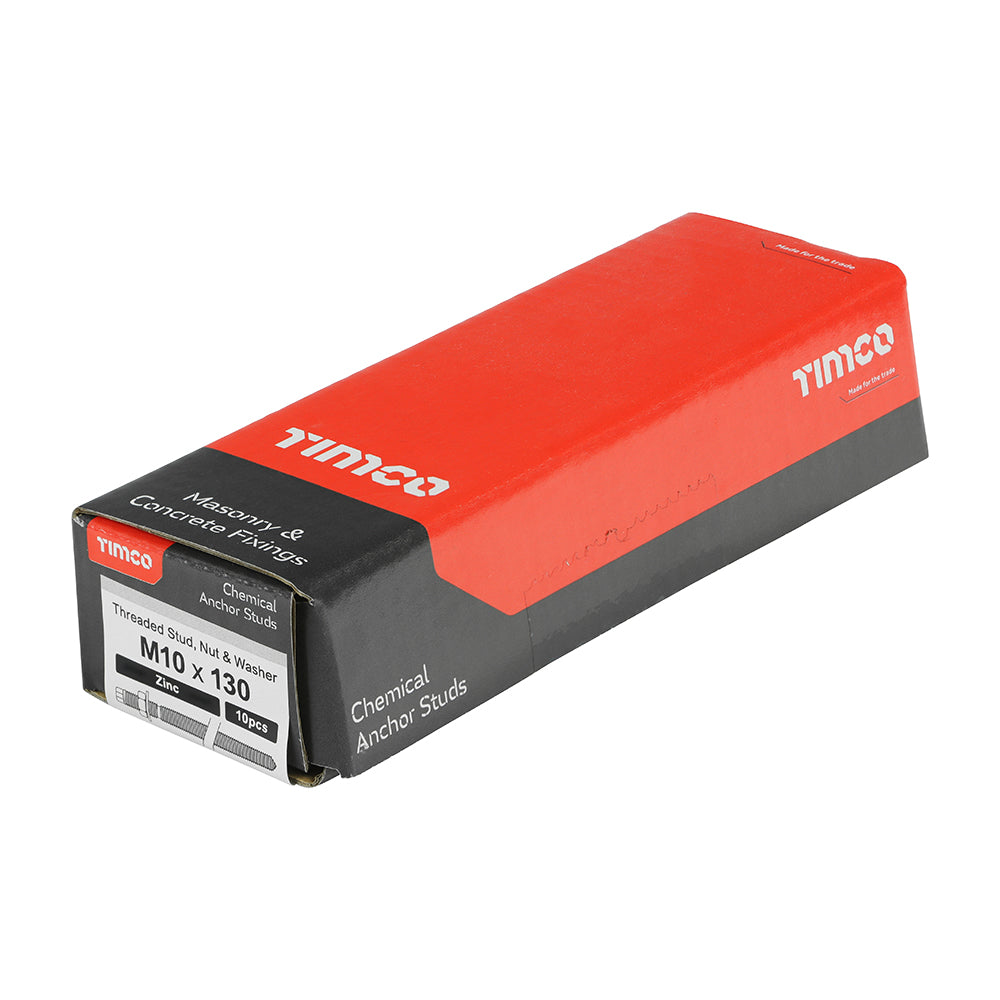

| Zinc | M10 x 130 | Box of 10 | 10130CS |
| Zinc | M12 x 160 | Box of 10 | 12160CS |
| Zinc | M16 x 190 | Box of 10 | 16190CS |
| Zinc | M20 x 260 | Box of 4 | 20270CS |
