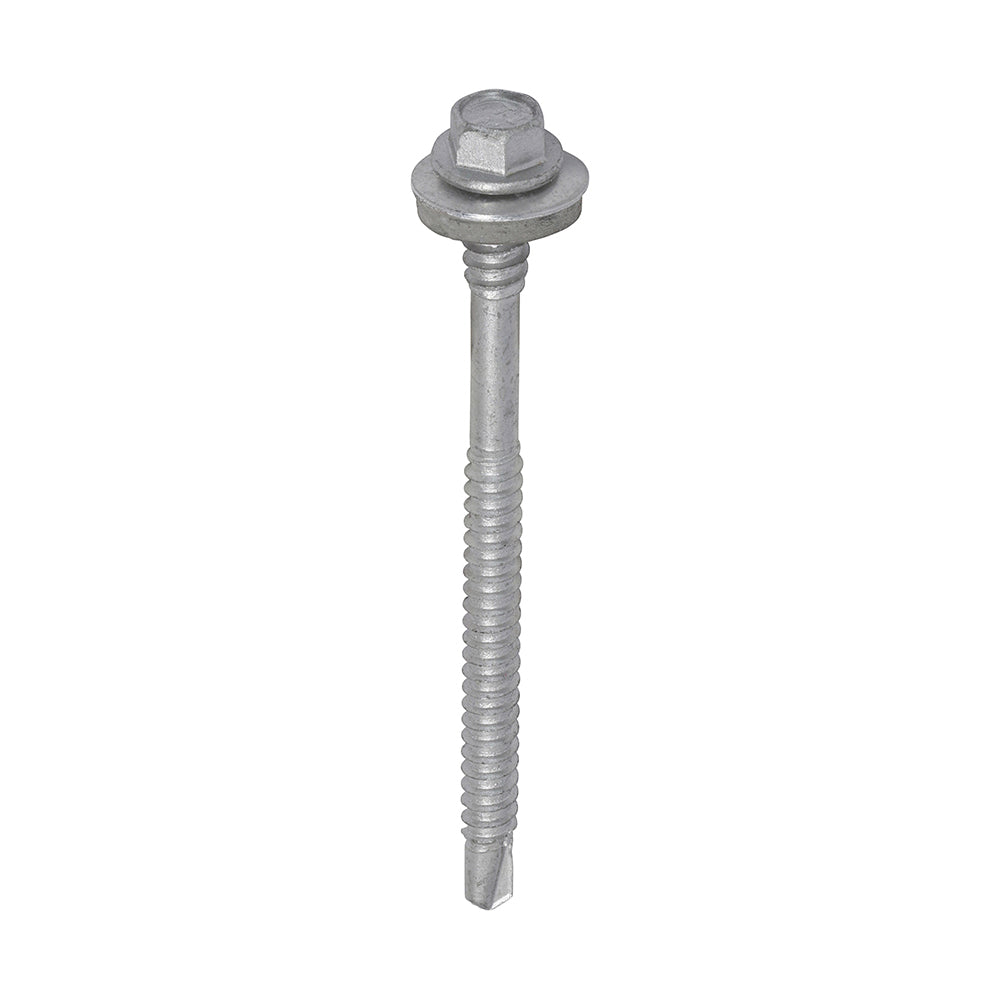

TIMCO Comp Screw Hex W16 S/DRILL EXT
TIMCO Comp Screw Hex W16 S/DRILL EXT - 5.5/6.3 x 82 / Box of 100 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Customer Services
Customer Services
Got a query? Call 0330 055 8210
We're open from 8am to 5pm, Monday to Thursday, and 8am to 4:30pm on Friday.
Delivery and Shipping
Delivery and Shipping
Delivery is £12.50 + VAT to UK Mainland. Orders over £100.00 + VAT qualify for free delivery, except for certain products—these will be clearly shown at checkout.
Orders placed by 3pm (stock permitting) are dispatched the same working day on a next working day service (not guaranteed).
Some areas, like Northern Scotland, may take 2–3 working days.
Northern Ireland, Channel Islands and Isle of Man at extra cost – contact us for a quote
We're open:
Mon–Thurs: 8am–5pm
Friday: 8am–4:30pm
Call us: 0330 055 8210

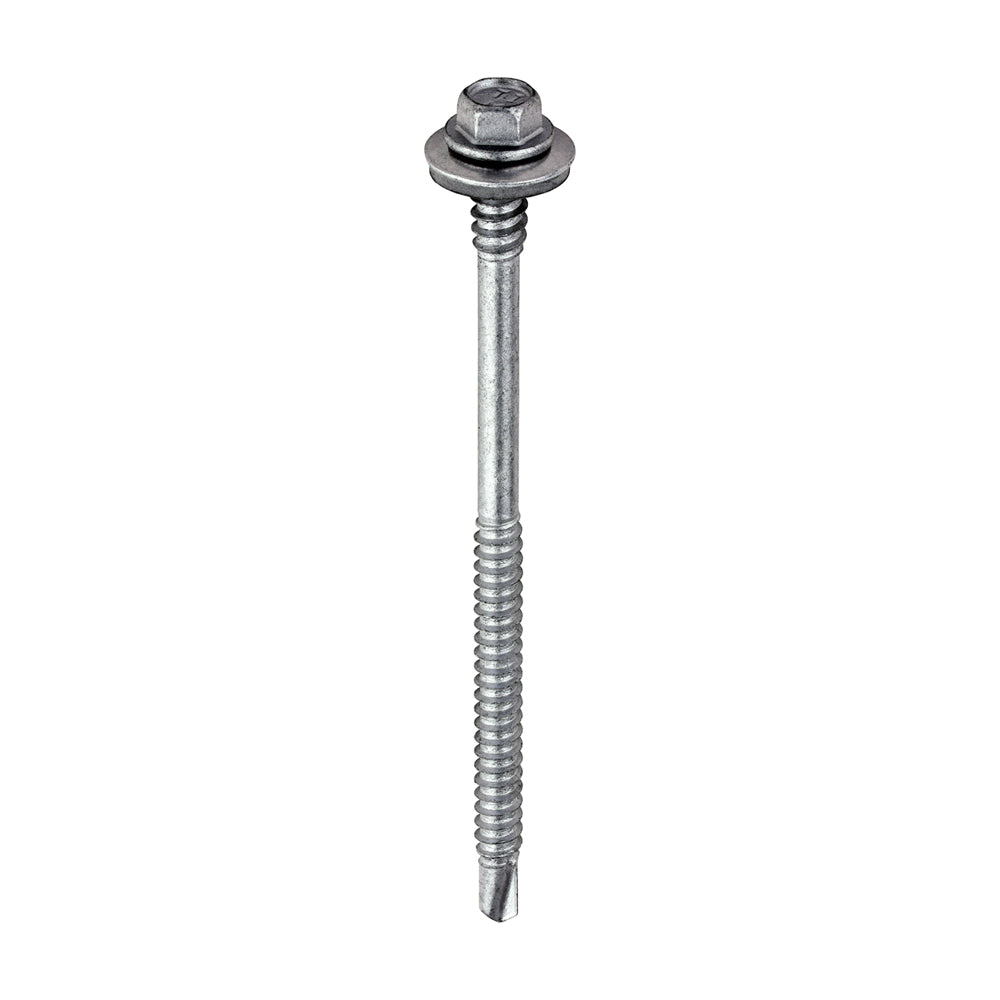

TIMCO Comp Screw Hex W16 S/DRILL EXT
TIMCO Composite Panel Screw Hex W16 – exterior, for composite panel to light section steel

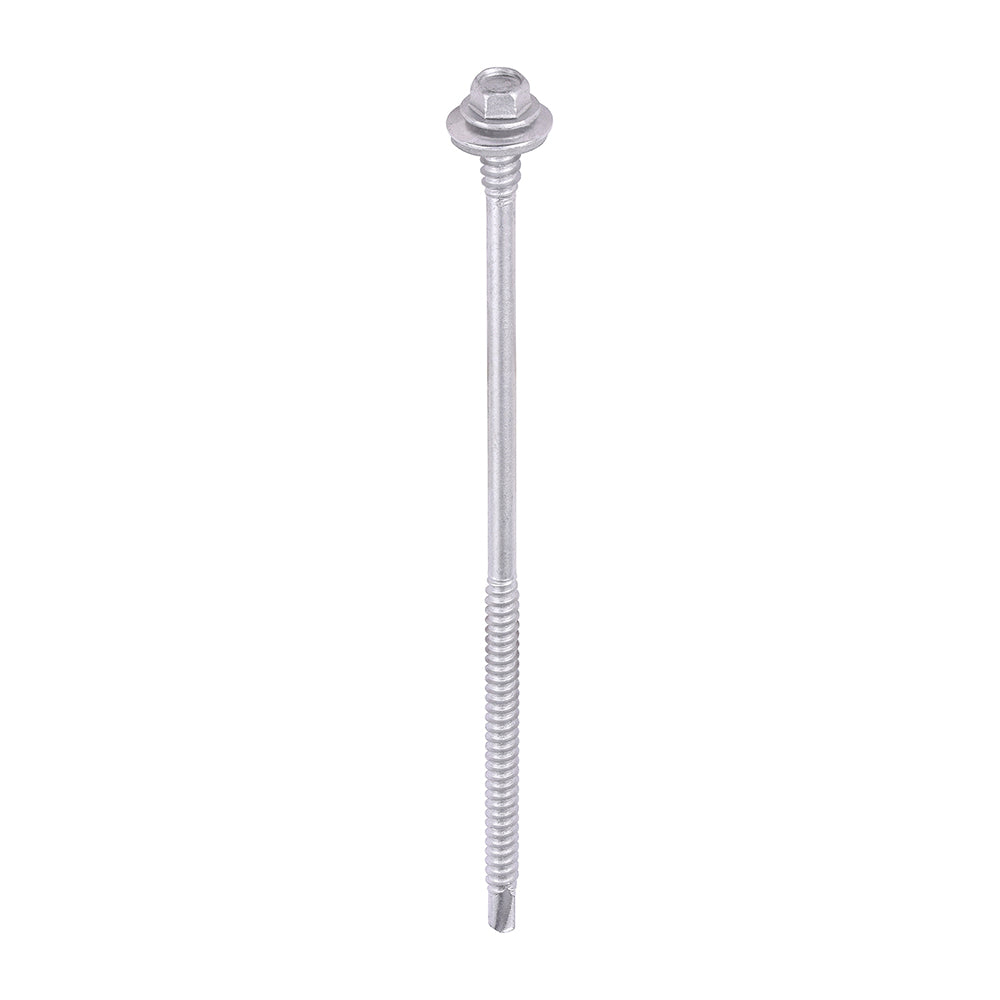

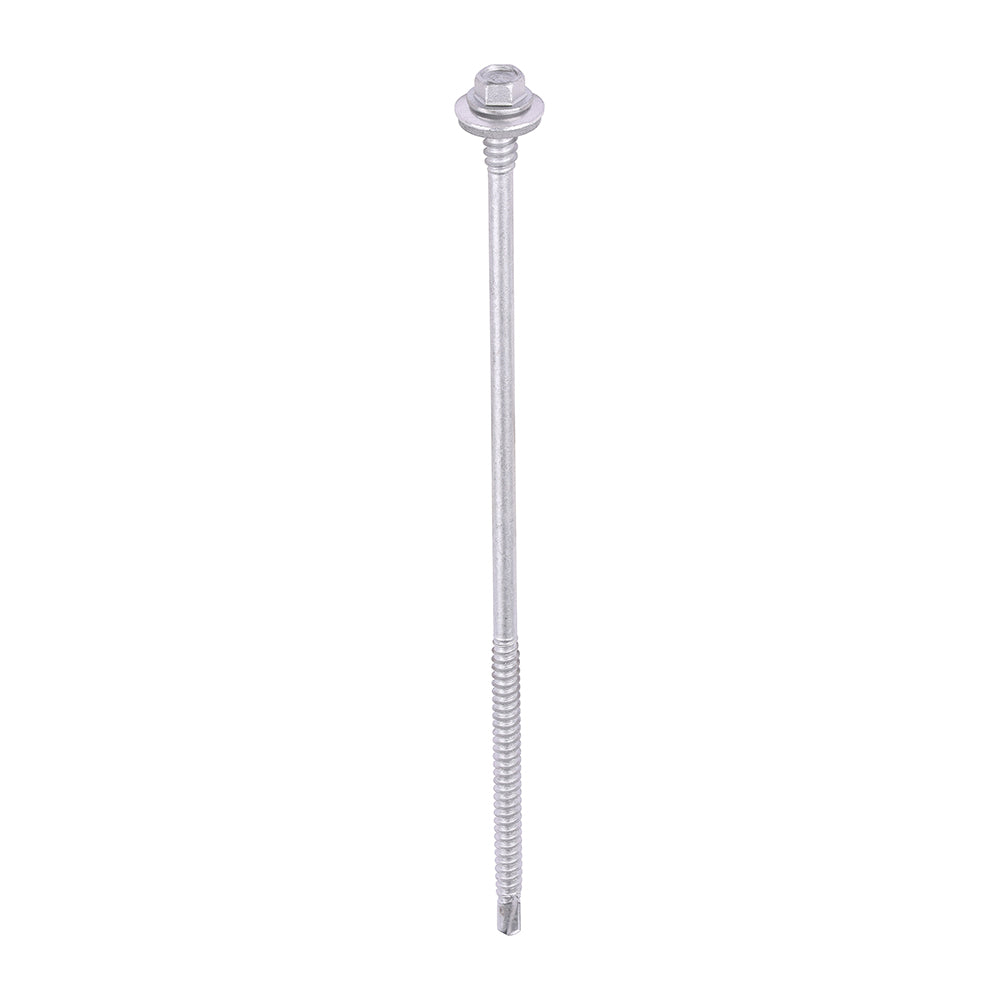

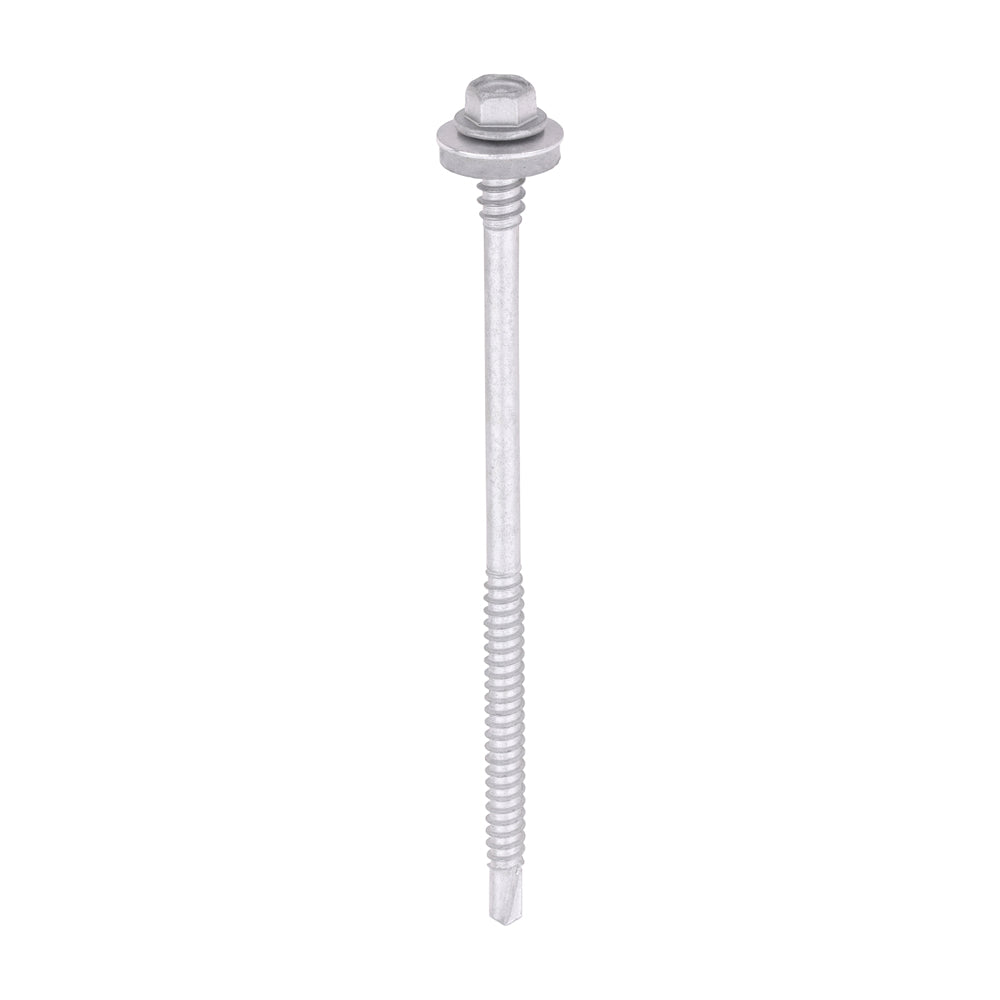

A hex head self-drilling screw specifically designed to attach composite panel to light section steel (up to 5mm). It has a self-drilling point and a hex head with a fixed washer and 16mm EPDM washer. Exterior silver organic finish, boxed.
Key features
- Self-drilling point – drills steel up to 5mm
- Hex head with 12mm fixed washer and 16mm EPDM washer – 8mm socket
- Sizes for panel thicknesses from 32mm to 160mm
Typical applications
- Fixing composite panels to light section steel
Technical information
| Property | Value |
|---|---|
| Head | Hex with fixed washer |
| Socket size | 8mm |
| Fixed washer Ø | 12mm |
| EPDM washer | 16mm |
| Max. drill thickness | 5mm |
| Finish | Exterior silver organic |
| Corrosion rating | 3 of 5 – urban and industrial areas with a low salt atmosphere |
Panel thickness by size
| Size (mm) | Panel thickness (mm) |
|---|---|
| 5.5/6.3 x 82 | 32–62 |
| 5.5/6.3 x 98 | 48–78 |
| 5.5/6.3 x 115 | 65–95 |
| 5.5/6.3 x 150 | 100–130 |
| 5.5/6.3 x 180 | 130–160 |
Available sizes and packs
| Size | Pack | Code |
|---|---|---|
| 5.5/6.3 x 82 | Box of 100 | LH82W16B |
| 5.5/6.3 x 98 | Box of 100 | LH98W16B |
| 5.5/6.3 x 115 | Box of 100 | LH115W16B |
| 5.5/6.3 x 150 | Box of 100 | LH150W16B |
| 5.5/6.3 x 180 | Box of 50 | LH180W16B |
