TIMCO Drop In Anchor - Lipped - BZP

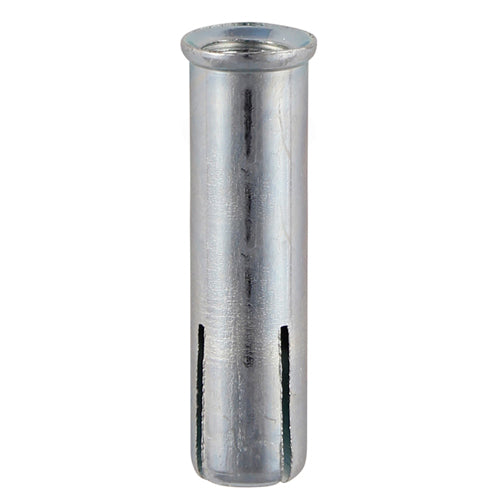

TIMCO Drop-In Anchor – Lipped – BZP
An internally threaded, hammer-set TIMCO expansion anchor for heavy-duty fixing into concrete, also known as a wedge anchor. The lip stops the anchor going in too far.
Key features
- Internally threaded expansion anchor
- Lip stops over-insertion
- Hammer set with a TIMCO setting tool
- M8 and M10
- Zinc plated
Typical applications
- Heavy-duty fixings into concrete
How to fit
- Drill the hole.
- Clean out the hole.
- Place the anchor in the hole.
- Insert the setting tool and hammer to set the anchor.
Technical data (concrete ≥ 25N/mm²)
| Thread | Anchor length (mm) | Drill hole Ø (mm) | Embedment depth (mm) | Rec. tightening torque (Nm) | Max. rec. load (kg) |
|---|---|---|---|---|---|
| M8 | 30 | 10.0 | 30 | 5 | 222 |
| M10 | 30 | 12.0 | 30 | 7 | 316 |

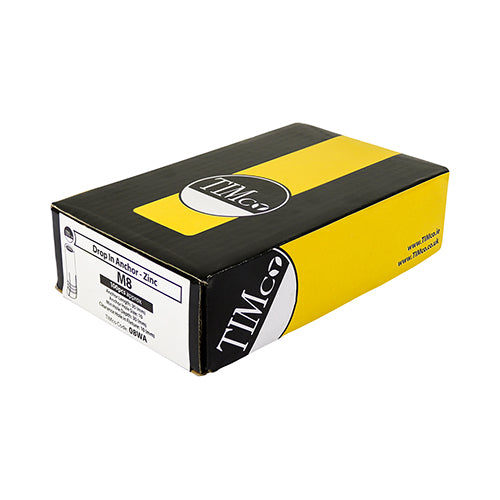

Available sizes and packs
| Size | Pack | Code |
|---|---|---|
| M8 | Box of 100 | 08LWA |
| M10 | Box of 50 | 1030LWA |
