TIMCO Metal Expansion Plug - ZYP

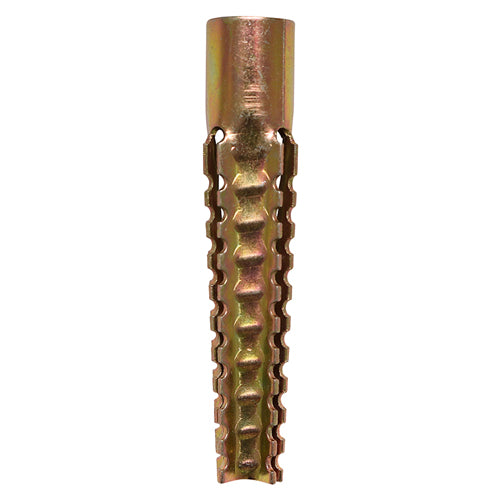

TIMCO Metal Expansion Plug – ZYP
An all-steel TIMCO fixing for lightweight aggregate blocks. It is ideal where regulations restrict the use of plastic anchors or plugs, such as fire escape routes.
Key features
- All-steel, non-flammable fixing
- For lightweight aggregate blocks
- Conforms to BS 7671:2018
- Zinc and yellow passivated (ZYP)
Typical applications
- Fire escape routes and other areas where plastic plugs are restricted
Technical data (7N/mm² concrete block)
| Size Ø x L (mm) | For screw Ø (mm) | Drill hole Ø (mm) | Min. embedment (mm) | Max. rec. load (kg) |
|---|---|---|---|---|
| 6.0 x 32 | 4.5–5.0 | 6.0 | 32 | 20 |
| 8.0 x 38 | 5.0–6.0 | 8.0 | 38 | 40 |
| 8.0 x 60 | 5.0–6.0 | 8.0 | 38 | 40 |
| 10.0 x 60 | 6.0–8.0 | 10.0 | 60 | 50 |
Drill hole size depends on the strength of the material. When fixing into concrete, drill a larger hole so the plug is not damaged as it goes in.
Available sizes and packs
| Size | Pack | Code |
|---|---|---|
| 6.0 x 32 | Box of 100 | 632MEP |
| 8.0 x 38 | Box of 50 | 838MEP |
| 8.0 x 60 | Box of 50 | 860MEP |
| 10.0 x 60 | Box of 50 | 1060MEP |
