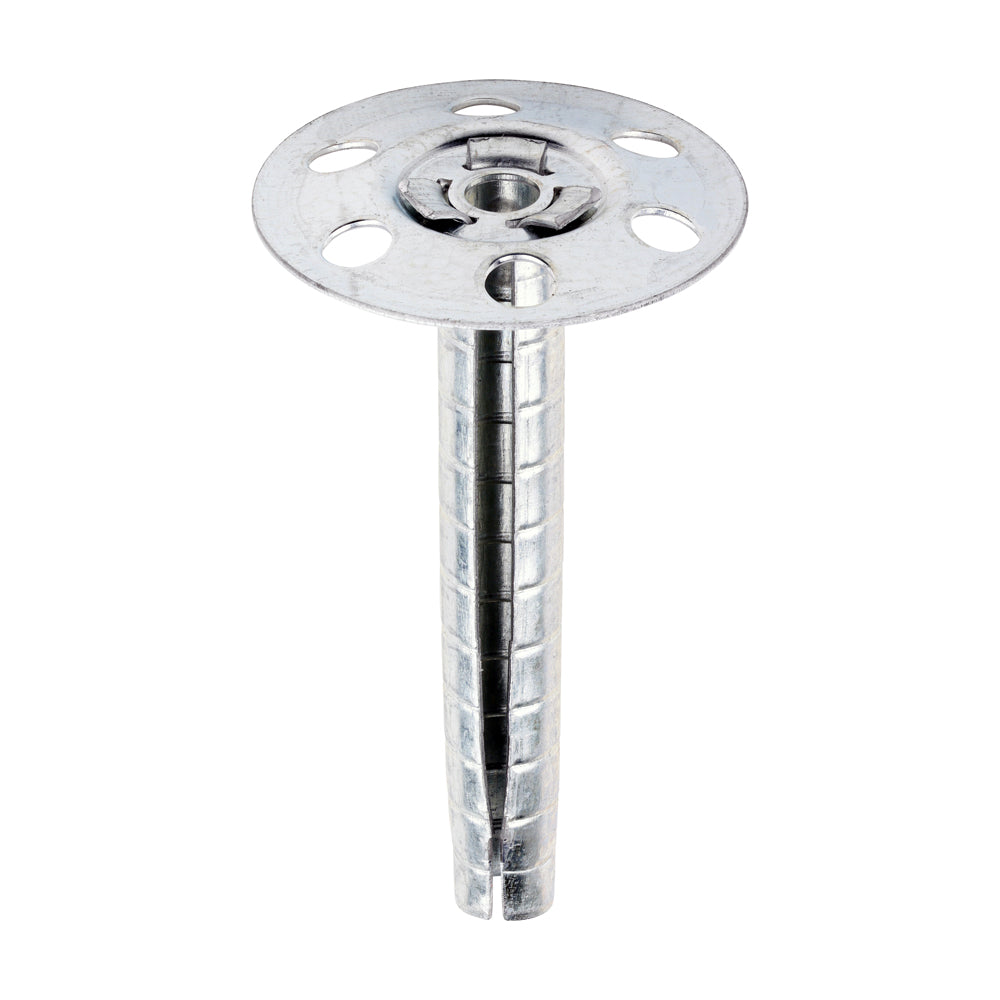

TIMCO Metal Insulation Fixing GALV
TIMCO Metal Insulation Fixing
TIMCO metal insulation fixings anchor insulation material to concrete and masonry. You drill the hole, then hammer the fixing through the insulation. To reduce the risk of thermal transmission, finish them with TIMCO plastic cover caps.
Key features
- Hammer-in fixing through the insulation
- 8mm drill hole
- Lengths 60mm to 300mm, for insulation up to 250mm thick
- Use with TIMCO MIFC plastic cover caps
Typical applications
- Fixing insulation boards and slabs to concrete, brick and block
Technical information
| Property | Value |
|---|---|
| Substrate tested | Concrete ≥ 25N/mm² |
| Drill hole Ø | 8mm |
| Min. embedment depth | 50mm |
| Min. drill hole depth | 60mm |
| Max. rec. load | 20kg (0.20kN) |
How to fit
- Drill a hole of the required diameter.
- Hammer the fixing through the insulation into the hole.
Sizes
| Size Ø x L (mm) | Max. fixture thickness (mm) |
|---|---|
| 8.0 x 60 | 10 |
| 8.0 x 90 | 40 |
| 8.0 x 110 | 60 |
| 8.0 x 140 | 90 |
| 8.0 x 170 | 120 |
| 8.0 x 200 | 150 |
| 8.0 x 250 | 200 |
| 8.0 x 300 | 250 |
Available sizes and packs
| Size | Pack | Code |
|---|---|---|
| 8.0 x 60 | Bag of 100 | MIF60 |
| 8.0 x 90 | Bag of 100 | MIF90 |
| 8.0 x 110 | Bag of 100 | MIF110 |
| 8.0 x 140 | Bag of 100 | MIF140 |
| 8.0 x 170 | Bag of 50 | MIF170 |
| 8.0 x 200 | Bag of 50 | MIF200 |
| 8.0 x 250 | Bag of 50 | MIF250 |
| 8.0 x 300 | Bag of 50 | MIF300 |
