TIMCO Multi-Fix Concrete Screw - PAN

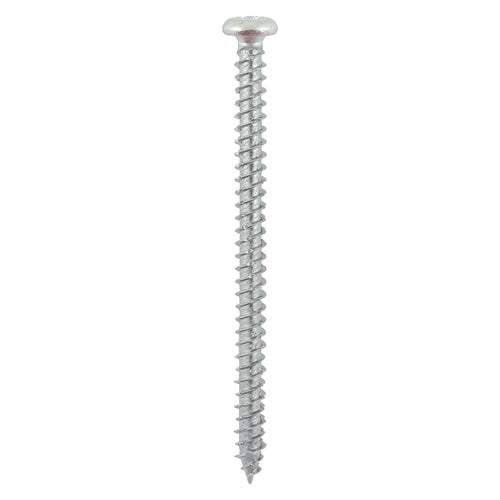

TIMCO Multi-Fix Concrete Screw – Pan Head
A fast, effective light-duty TIMCO anchor for fixing into concrete, brick, stone, concrete block and wood. It works as a through fixing and replaces traditional nylon frame and hammer fixings. It is zinc plated, and the pan head improves clamping.
Key features
- Through fixing, so no plug is needed
- Pan head for better clamping
- Zinc plated
- TX30 drive, with the driver bit included in each box
- All-steel, non-flammable fixing
Typical applications
- Through fixings into concrete, brick, stone, block and wood
- In place of nylon frame and hammer fixings
Technical information
| Property | Value |
|---|---|
| Substrate tested | Concrete ≥ 25N/mm² |
| Drill hole Ø | 6mm |
| Fixture clearance hole Ø | 8mm |
| Min. embedment depth | 35mm (40–70mm lengths), 50mm (80mm and longer) |
| Max. rec. load in concrete | 107kg (40–70mm lengths), 182kg (80mm and longer) |
Sizes
| Size (mm) | Max. fixture thickness (mm) |
|---|---|
| 7.5 x 80 | 30 |
| 7.5 x 100 | 50 |
| 7.5 x 120 | 70 |
Available sizes and packs
| Size | Pack | Code |
|---|---|---|
| 7.5 x 80 | Box of 100 | 7580MFPAN |
| 7.5 x 100 | Box of 100 | 75100MFPAN |
| 7.5 x 120 | Box of 100 | 75120MFPAN |
