TIMCO Multi-Fix Concrete Screw - SO

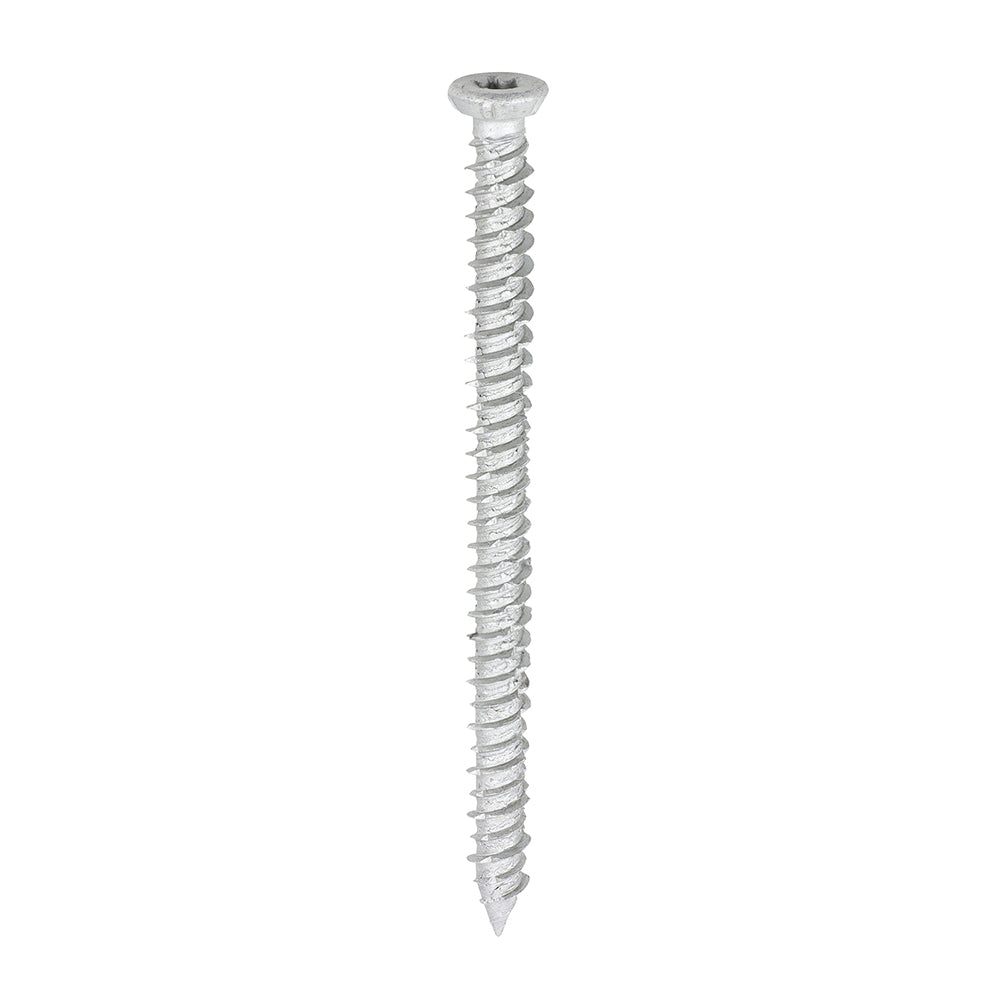

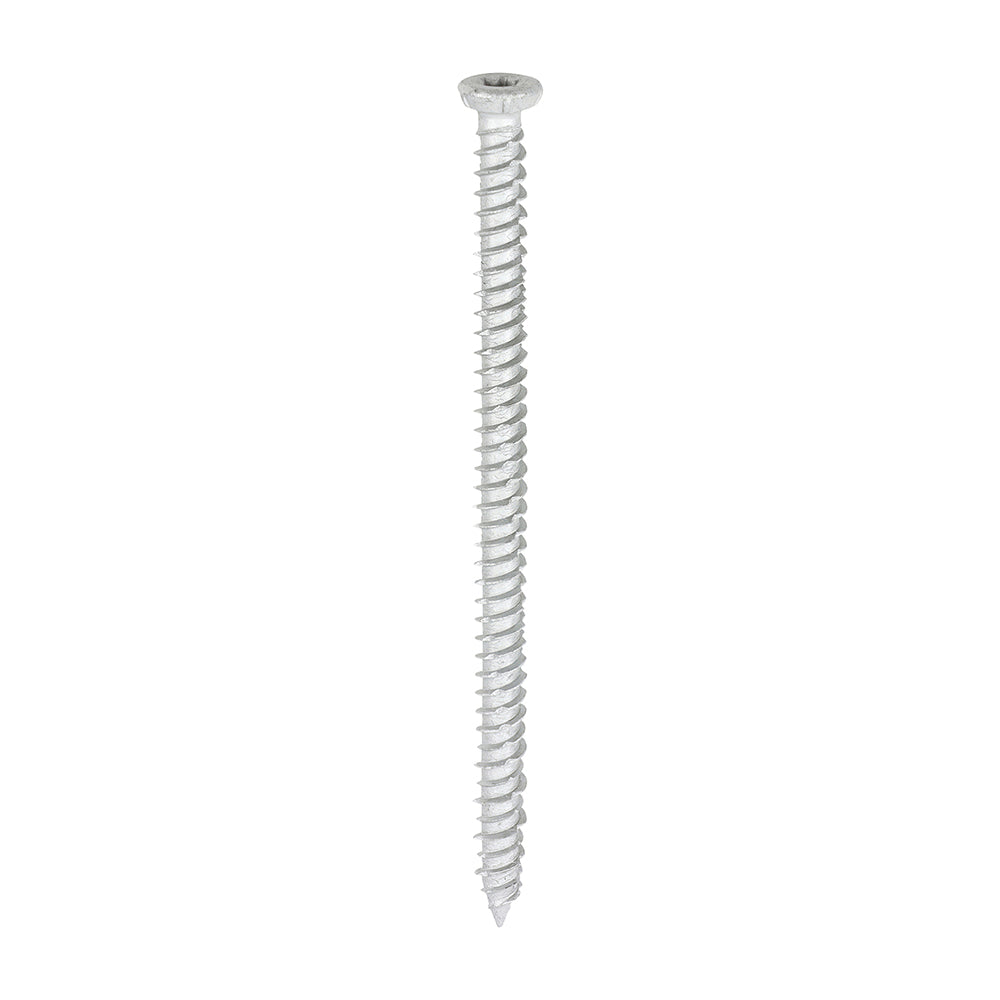

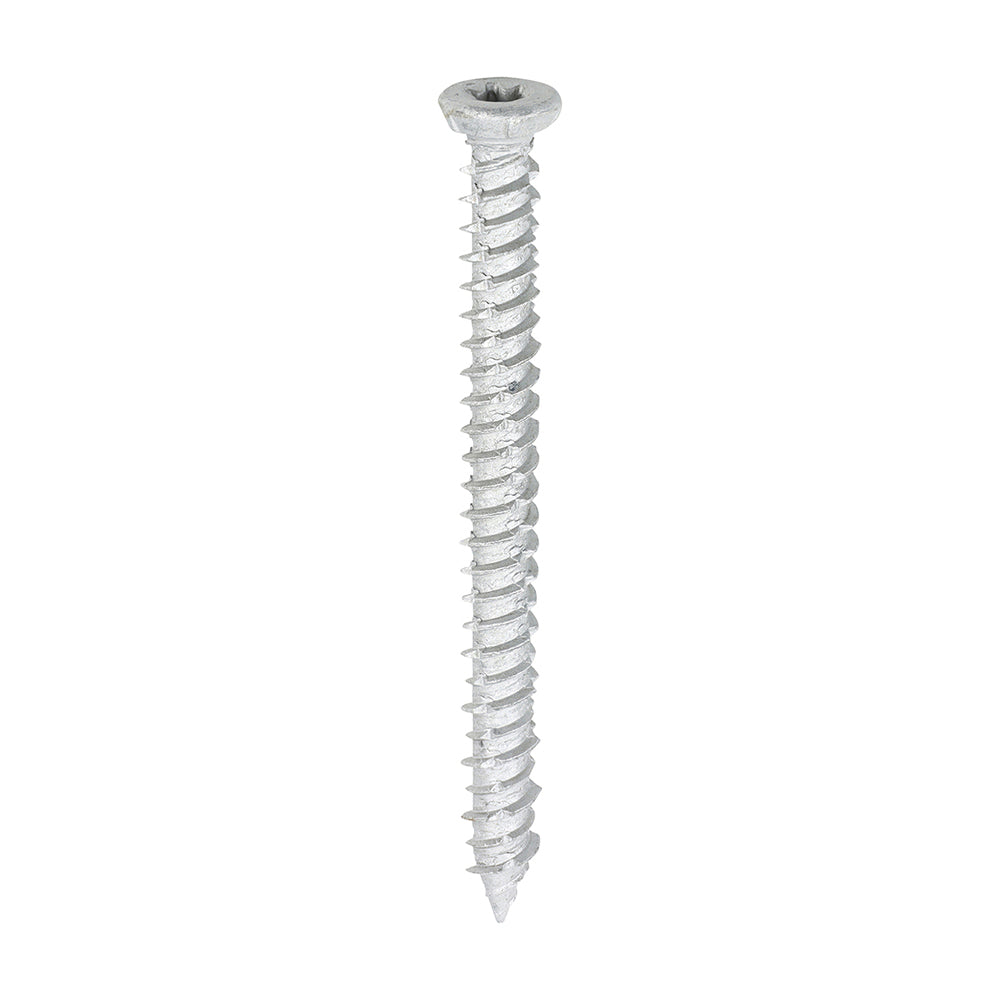

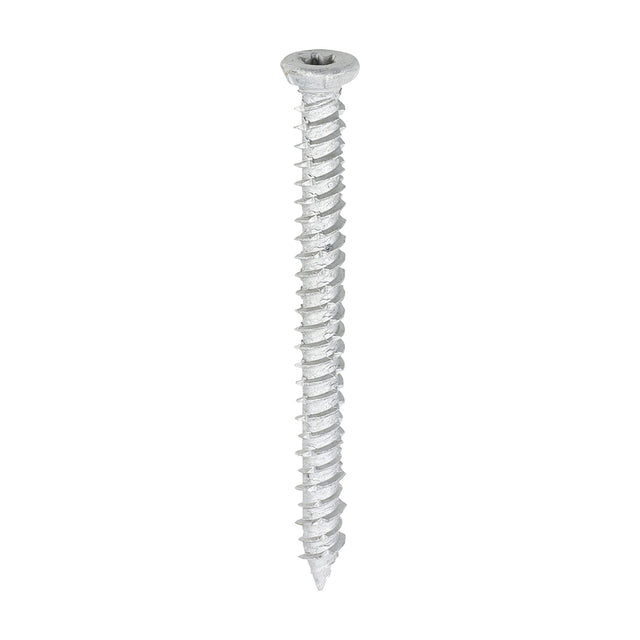

TIMCO Multi-Fix Concrete Screw – Countersunk, Exterior (SO)
A fast, effective light-duty TIMCO anchor for fixing into concrete, brick, stone, concrete block and wood. It works as a through fixing and replaces traditional nylon frame and hammer fixings. This version has a countersunk head and an exterior silver organic coating.
Key features
- Through fixing, so no plug is needed
- Countersunk head with TX30 drive
- Exterior silver organic (SO) finish
- All-steel, non-flammable fixing
- Conforms to BS 7671:2018

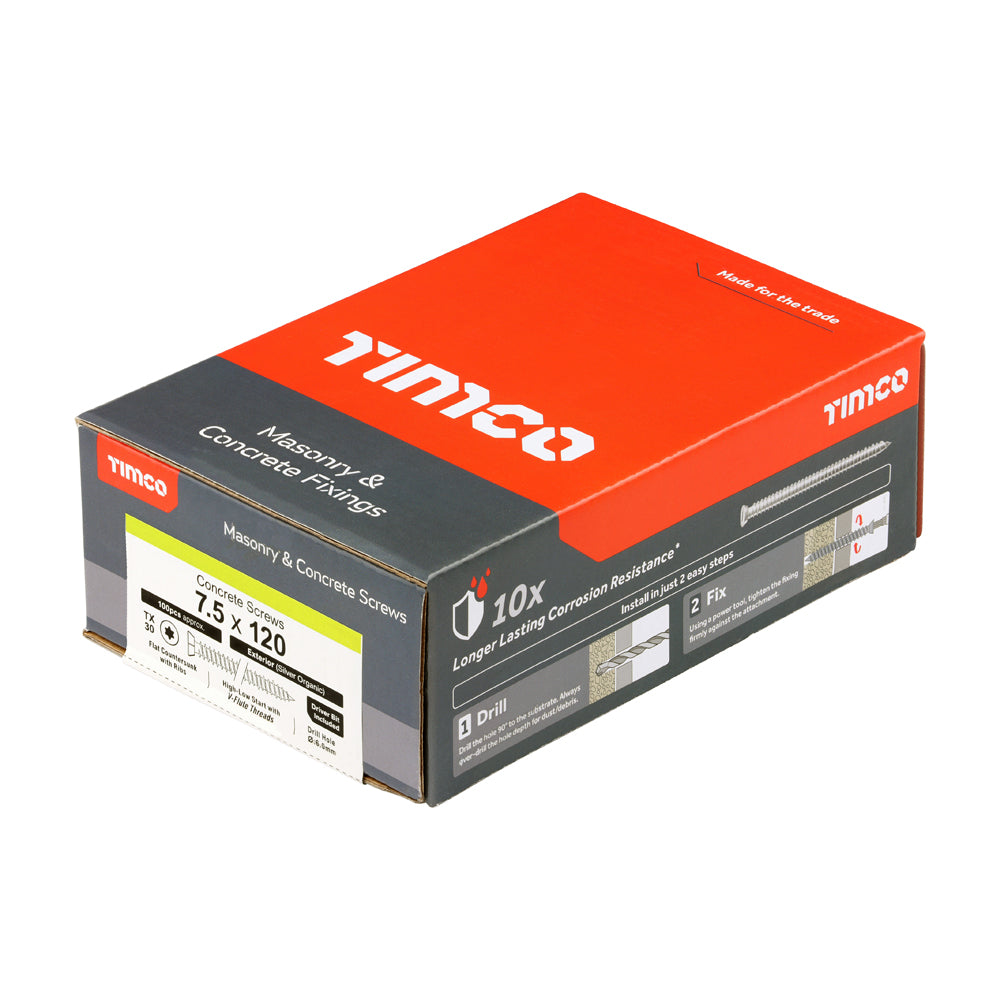

- TX30 driver bit included in each box
Typical applications
- Through fixings into concrete, brick, stone, block and wood
- In place of nylon frame and hammer fixings
Technical information
| Property | Value |
|---|---|
| Substrate tested | Concrete ≥ 25N/mm² |
| Drill hole Ø | 6mm |
| Fixture clearance hole Ø | 8mm |
| Min. embedment depth | 35mm (40–70mm lengths), 50mm (80mm and longer) |
| Max. rec. load in concrete | 107kg (40–70mm lengths), 182kg (80mm and longer) |
Sizes
| Size (mm) | Max. fixture thickness (mm) |
|---|---|
| 7.5 x 80 | 30 |
| 7.5 x 100 | 50 |
| 7.5 x 120 | 70 |
Works with TIMCO cover caps made for countersunk screws.
Available sizes and packs
| Size | Pack | Code |
|---|---|---|
| 7.5 x 80 | Box of 100 | 80TCONR |
| 7.5 x 100 | Box of 100 | 100TCONR |
| 7.5 x 120 | Box of 100 | 120TCONR |
