TIMCO | SKU: 725500

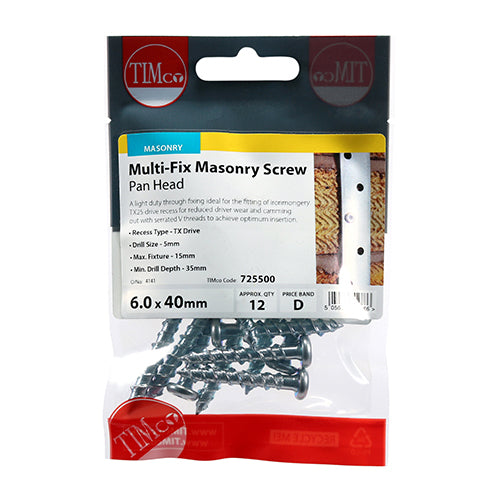

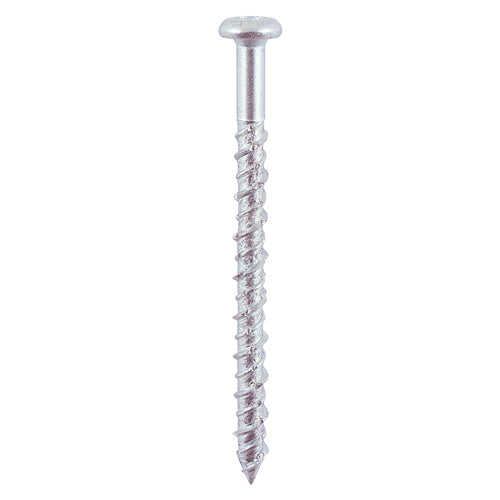

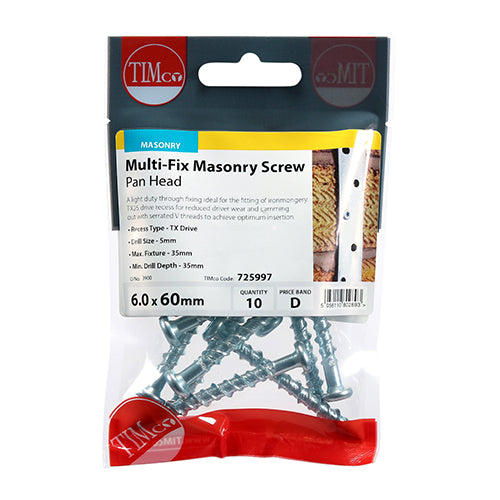

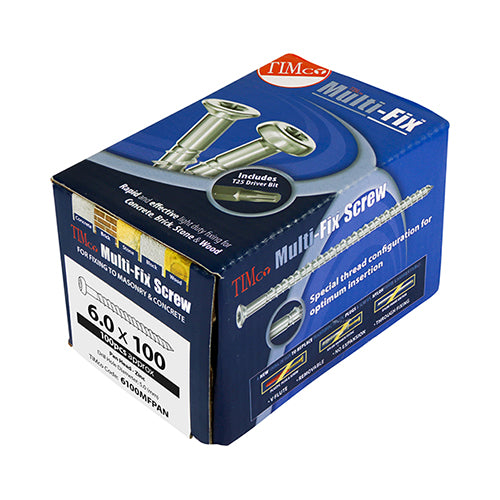

TIMCO Multi-Fix Masonry Screw - PAN

£2.76

Size

6.0 x 40 6.0 x 60 6.0 x 80 6.0 x 100

Pack

TIMpac of 12 TIMpac of 10 Box of 100

Product variants

Customer Services

Got a query? Call 0330 055 8210

We're open from 8am to 5pm, Monday to Thursday, and 8am to 4:30pm on Friday.

Delivery and Shipping

Delivery is £12.50 + VAT to UK Mainland. Orders over £100.00 + VAT qualify for free delivery, except for certain products—these will be clearly shown at checkout.

Orders placed by 3pm (stock permitting) are dispatched the same working day on a next working day service (not guaranteed).

Some areas, like Northern Scotland, may take 2–3 working days.

Northern Ireland, Channel Islands and Isle of Man at extra cost – contact us for a quote

We're open:
Mon–Thurs: 8am–5pm
Friday: 8am–4:30pm

Call us: 0330 055 8210

TIMCO Multi-Fix Masonry Screw – Pan Head

A fast, effective zinc-plated TIMCO masonry screw with a pan head. It drives straight into brick, block and concrete without a plug and is a light-duty fixing ideal for ironmongery.

Key features

TX25 drive, which reduces wear and cam-out
Serrated V-threads for optimum insertion
High-low start thread for quick pick-up
Non-expansion, so it can fix close to an edge
All-steel, non-flammable fixing
Conforms to BS 7671
Driver bit included in boxes

Typical applications

Handrails
Shelf brackets
Security lighting
Metal strapping and banding

Technical information

Property	Value
Substrate tested	Concrete ≥ 25N/mm²
Drill hole Ø	5mm
Fixture clearance hole Ø	6.5mm
Min. embedment depth	25mm (40–80mm lengths), 37mm (100mm length)
Max. rec. load	100kg (40–80mm lengths), 150kg (100mm length)

Sizes

Size (mm)	Max. fixture thickness (mm)
6.0 x 40	15
6.0 x 60	35
6.0 x 80	55
6.0 x 100	63

Available sizes and packs

Size	Pack	Code
6.0 x 40	TIMpac of 12	725500
6.0 x 60	TIMpac of 10	725997
6.0 x 40	Box of 100	640MFPAN
6.0 x 60	Box of 100	660MFPAN
6.0 x 80	Box of 100	680MFPAN
6.0 x 100	Box of 100	6100MFPAN
