TIMCO | SKU: 434015

TIMCO Narrow Butt Hinge U/C ZINC

£1.29

Size

75 x 48 100 x 58 127 x 65 150 x 75

Product variants

Customer Services

Got a query? Call 0330 055 8210

We're open from 8am to 5pm, Monday to Thursday, and 8am to 4:30pm on Friday.

Delivery and Shipping

Delivery is £12.50 + VAT to UK Mainland. Orders over £100.00 + VAT qualify for free delivery, except for certain products—these will be clearly shown at checkout.

Orders placed by 3pm (stock permitting) are dispatched the same working day on a next working day service (not guaranteed).

Some areas, like Northern Scotland, may take 2–3 working days.

Northern Ireland, Channel Islands and Isle of Man at extra cost – contact us for a quote

We're open:
Mon–Thurs: 8am–5pm
Friday: 8am–4:30pm

Call us: 0330 055 8210

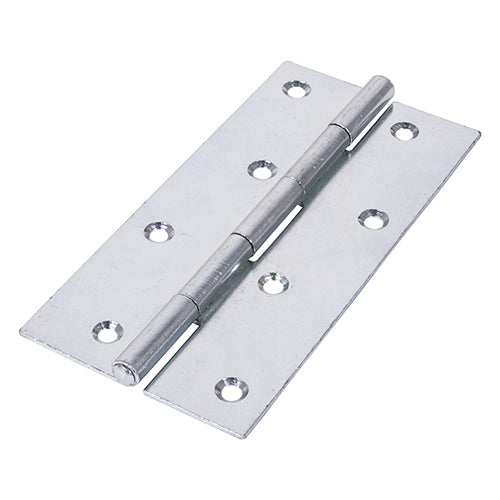

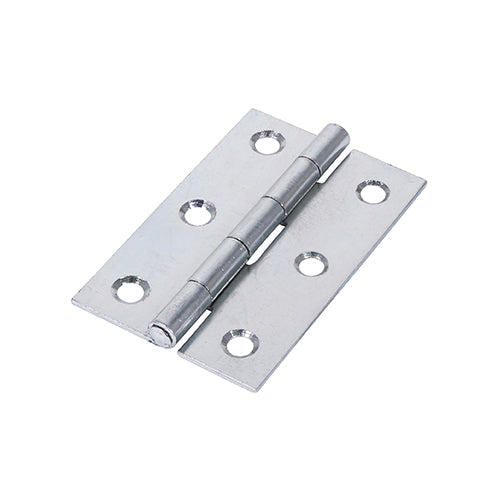

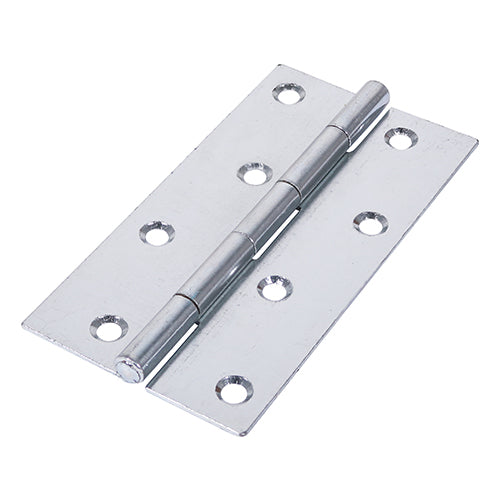

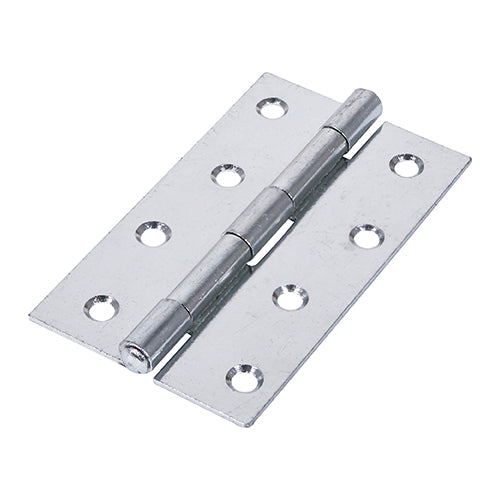

TIMCO Narrow Uncranked Butt Hinge (5050) – zinc

A narrow economy butt hinge for a variety of uses. Its narrow leaves suit thinner doors, and the fixed pin works with inward and outward opening doors. Zinc plated steel, sold by the pair (fixings not included).

Key features

Narrow leaves for thinner doors
Fixed pin – for inward and outward opening doors
Zinc plated steel

Typical applications

Thinner doors
General joinery

Technical information

Property	Value
Sizes (L x W)	75 x 48, 100 x 58, 127 x 65, 150 x 75mm
Thickness	1.5 / 1.5 / 1.7 / 2.0mm
Knuckle Ø	7.2 / 8.3 / 8.8 / 9.0mm
Rec. screw	4.0mm / 8g (75, 100mm); 5.0mm / 10g (127, 150mm)
Max. door weight	20 / 30 / 40 / 50kg
Finish	Zinc
