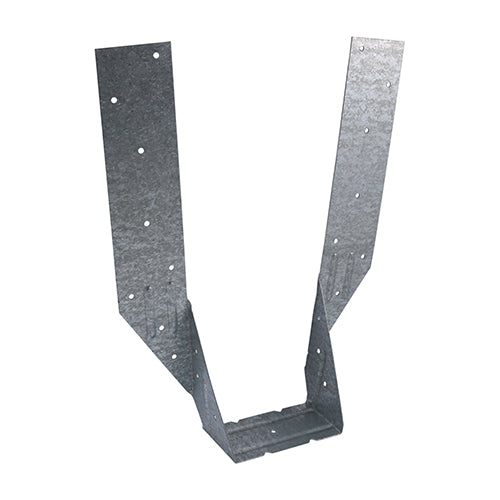

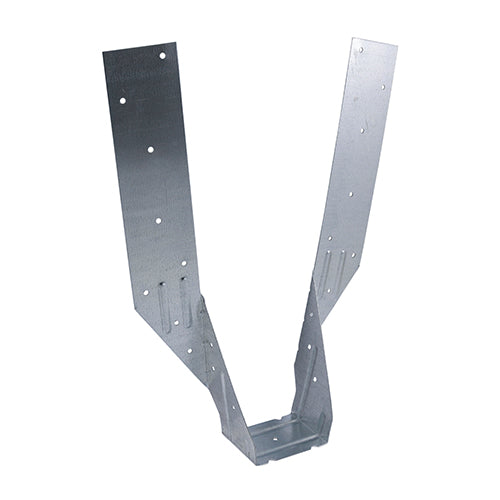

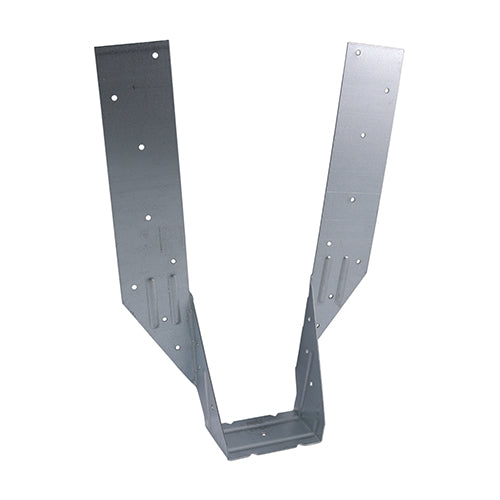

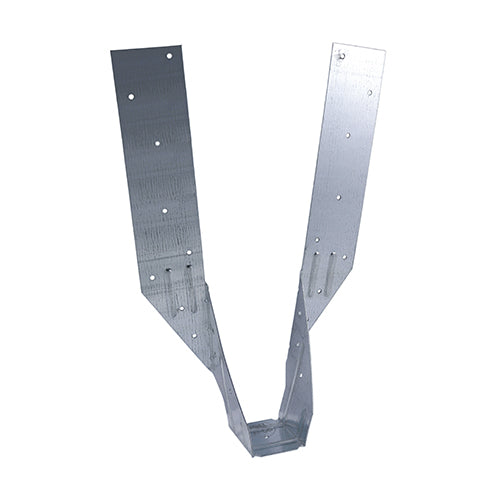

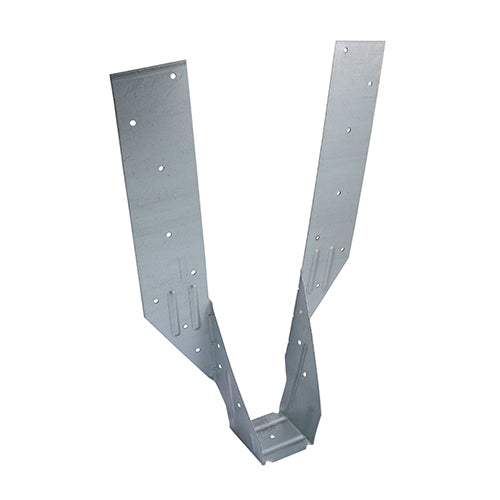

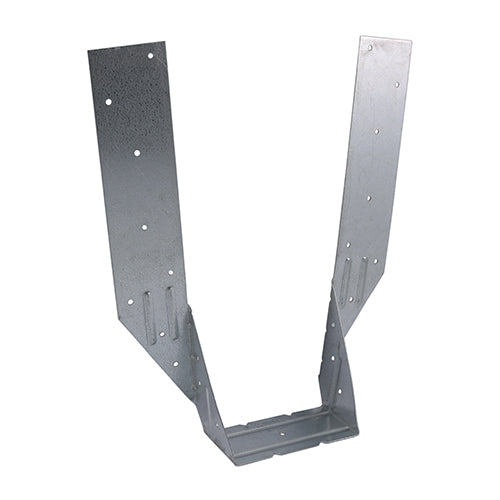

TIMCO No Tag Timber Hanger
TIMCO No Tag Timber Hanger – galvanised timber-to-timber joist hanger
A TIMCO timber-to-timber joist hanger whose design needs fewer nails, for faster installation. Its longer legs mean every width can take a joist up to 220mm deep.
Made from 0.8mm galvanised steel.
Key features
- Fewer nails needed for quicker fitting
- Longer legs – takes joists up to 220mm deep
- 60mm bearing
- 23 nail holes
- 0.8mm galvanised steel
- Widths 44, 47, 63, 75, 90 and 100mm
Technical information
| Property | Value |
|---|---|
| Bearing | 60mm |
| Nail holes | 23 |
| Characteristic value | 14.41kN (Eurocode 5) |
| Safe working load – short term | 7.21kN |
| Safe working load – medium term | 6.86kN |
| Safe working load – long term | 6.0kN |
| Material | Galvanised steel, 0.8mm |
Installation guidelines
- Make sure the back plate of the hanger sits flat against the timber.
- Square-cut the joist so it sits tight to the back of the hanger.
- Fix the joist through every hole with 3.75 x 30mm galvanised square twist nails. For stainless steel applications use 2.36 x 30mm stainless steel annular ringshank nails.
Dimensions
| Code | W x L x B (mm) | Joist W x H (mm) |
|---|---|---|
| 44TH | 44 x 281 x 60 | 44 x 125 to 220 |
| 47TH | 47 x 279 x 60 | 47 x 125 to 220 |
| 63TH | 63 x 271 x 60 | 63 x 125 to 220 |
| 75TH | 75 x 265 x 60 | 75 x 125 to 220 |
| 90TH | 90 x 258 x 60 | 90 x 125 to 220 |
| 100TH | 100 x 253 x 60 | 100 x 125 to 220 |
Characteristic values to Eurocode 5. Safe working loads are short, medium and long term values as given in the TIMCO brochure.
Available sizes and packs
| Size | Pack | Min. order | Code |
|---|---|---|---|
| 44 x 125 to 220 | Each | 20 | 44TH |
| 47 x 125 to 220 | Each | 20 | 47TH |
| 63 x 125 to 220 | Each | 20 | 63TH |
| 75 x 125 to 220 | Each | 20 | 75TH |
| 90 x 125 to 220 | Each | 20 | 90TH |
| 100 x 125 to 220 | Each | 10 | 100TH |
