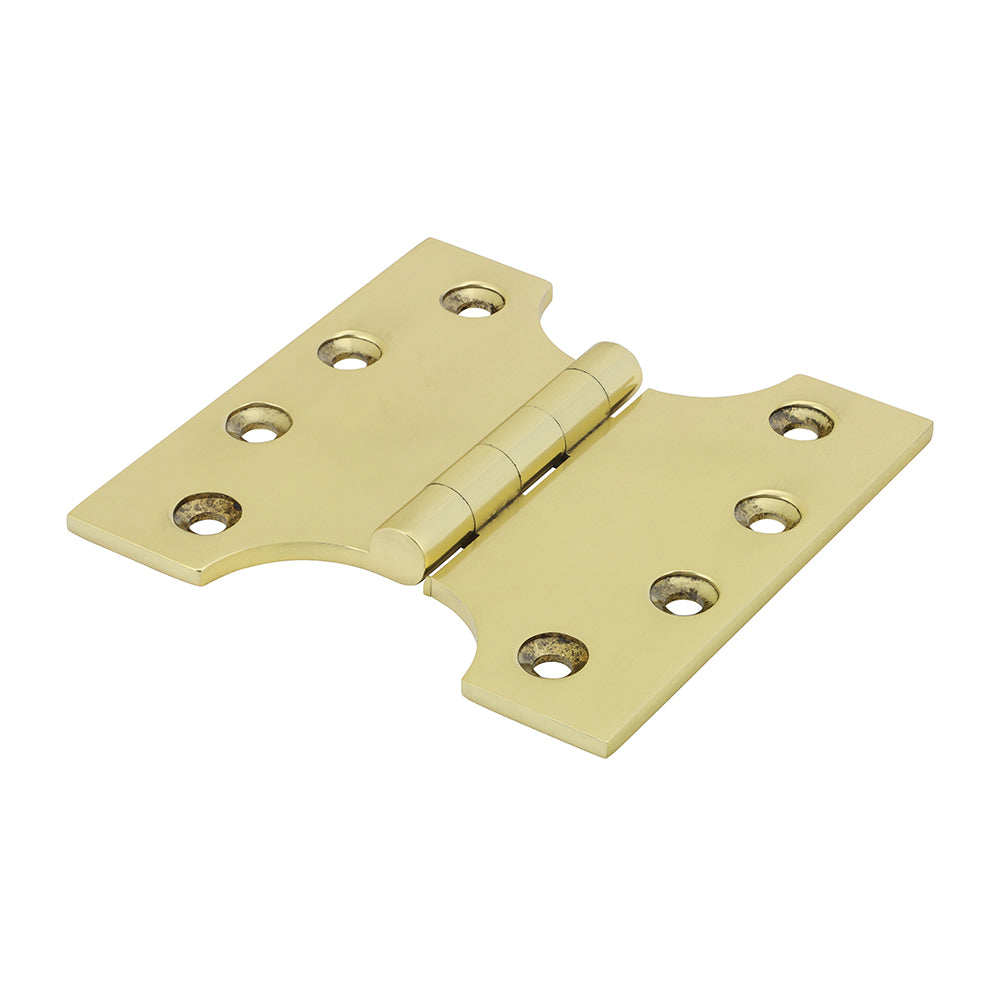

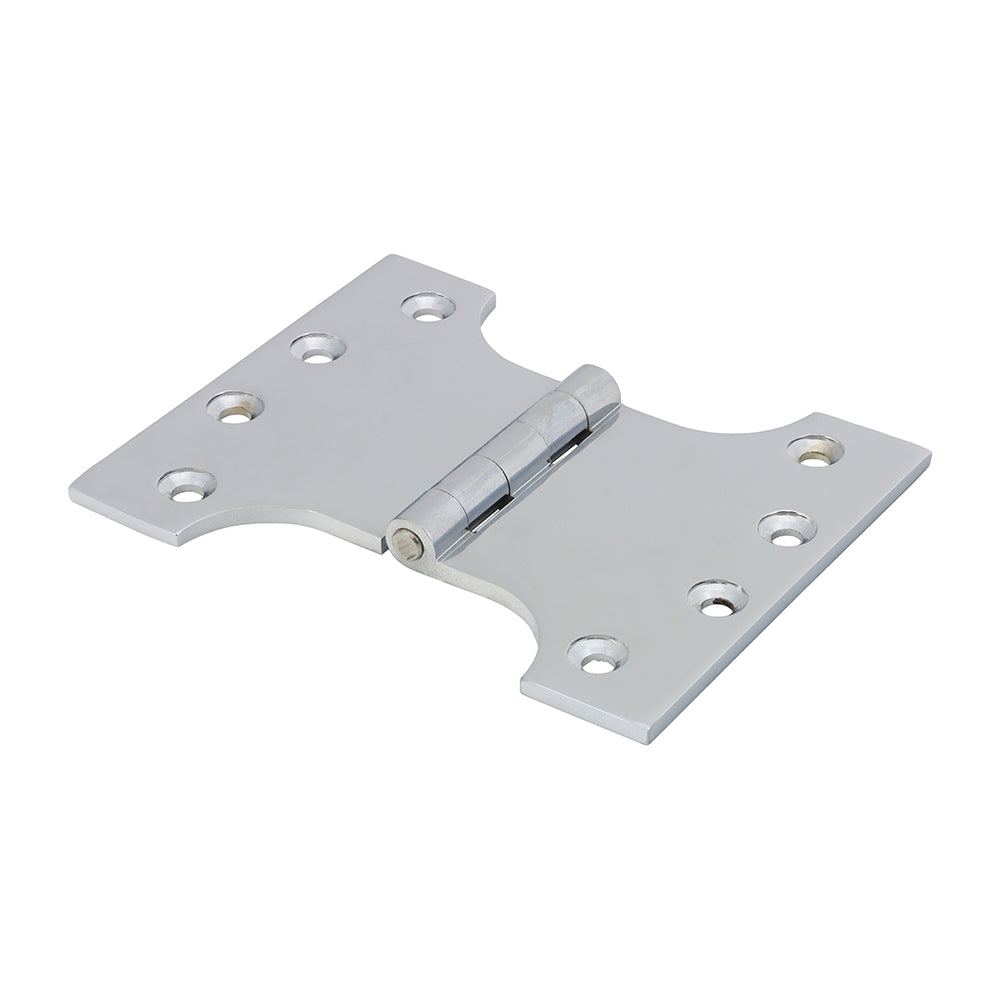

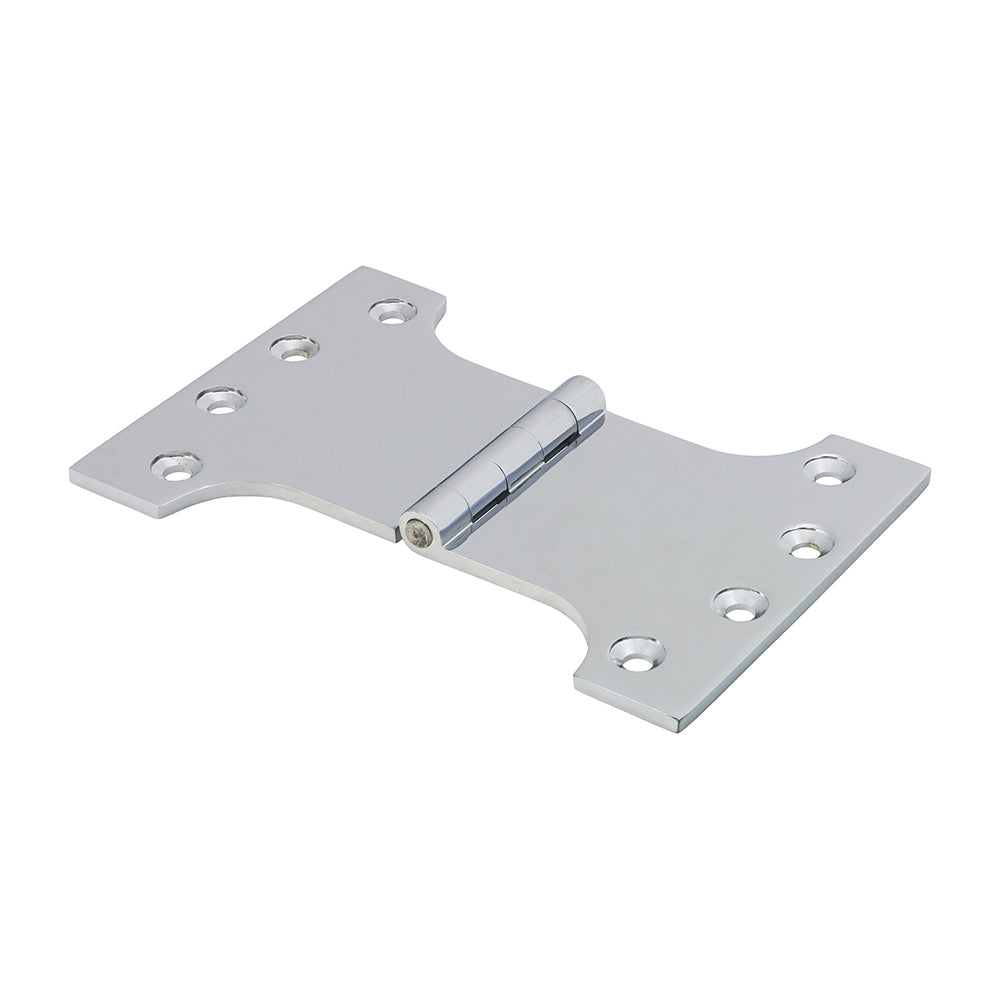

TIMCO Parliament Hinge
TIMCO Parliament Hinge – extruded brass, opens to 180°
A parliament hinge, commonly used where projecting architraves stop a door from opening fully. The projecting knuckle lets the door open to 180°, making the most of the doorway and room space. Made from high quality extruded brass that will not rust and gives a superior finish. Sold by the pair, boxed with fixings included.
Key features
- Projecting knuckle – door opens to 180°
- Clears projecting architraves
- High quality extruded brass – no rust
- Doors up to 30kg
Typical applications
- Doors with projecting architraves
Technical information
| Property | Value |
|---|---|
| Sizes (L x W) | 102 x 100, 102 x 125, 102 x 150mm |
| Projection | 50 / 75 / 100mm |
| Thickness | 4.00mm |
| Knuckle Ø | 11.0mm |
| Rec. screw | 5.0mm / 10g |
| Max. door weight | 30kg |
| Finishes | Polished brass, polished chrome, satin chrome |
Available sizes and packs
| Finish | Size | Pack | Code |
|---|---|---|---|
| PB | 102 x 100 | Box (1 pair) | 234813 |

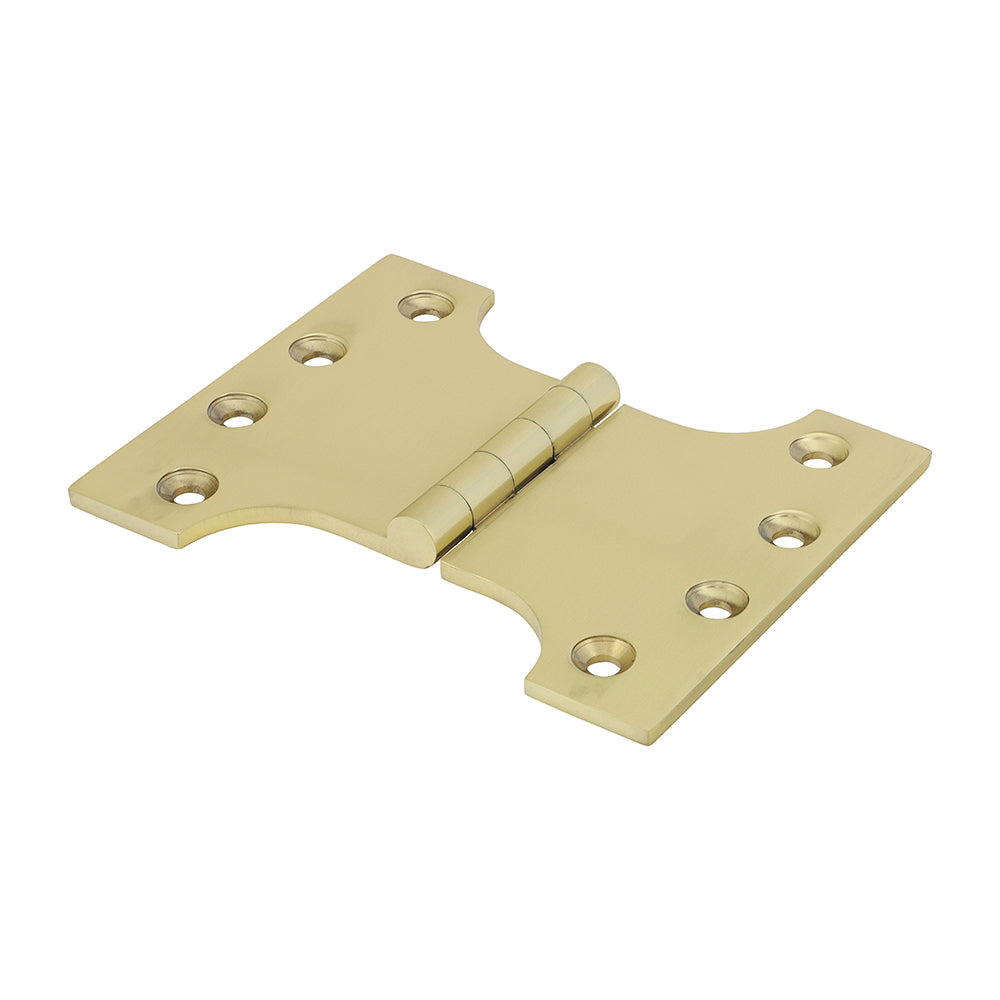

| PB | 102 x 125 | Box (1 pair) | 234297 |

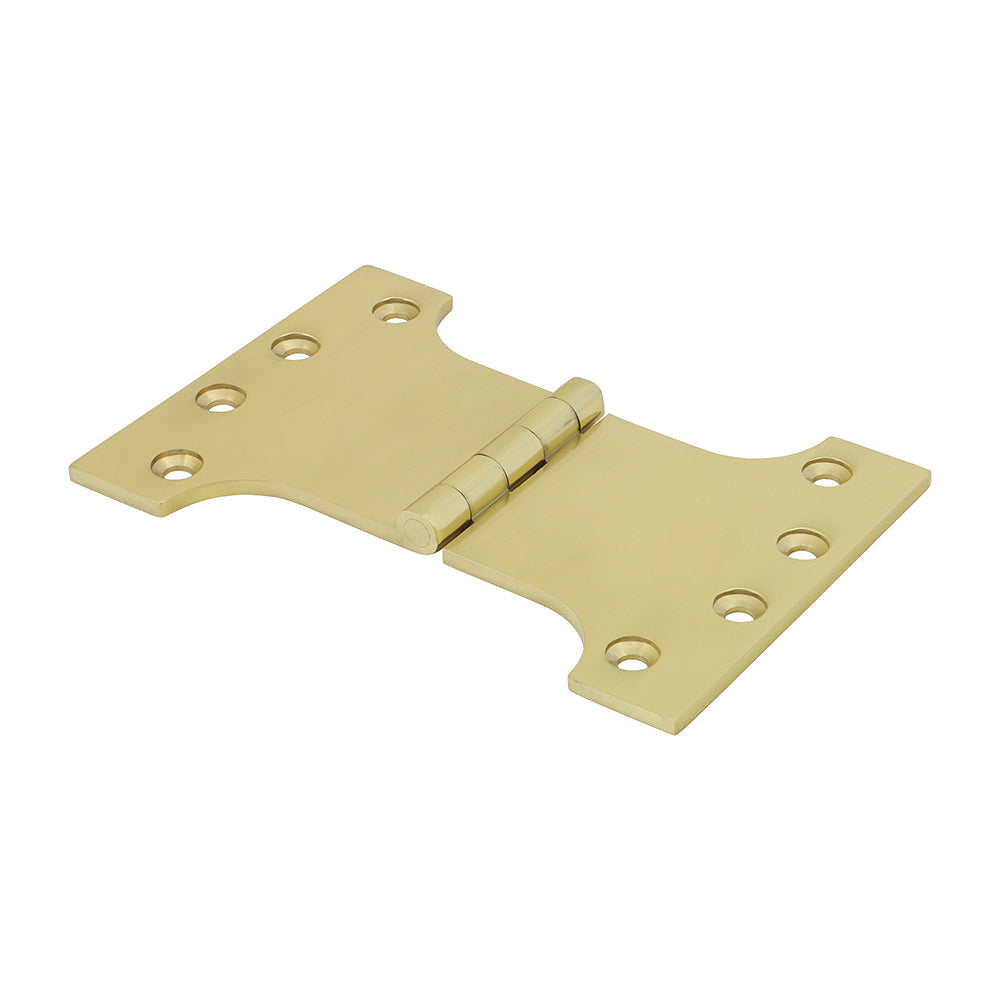

| PB | 102 x 150 | Box (1 pair) | 234460 |
| PC | 102 x 100 | Box (1 pair) | 234337 |
| PC | 102 x 125 | Box (1 pair) | 234919 |
| PC | 102 x 150 | Box (1 pair) | 234364 |

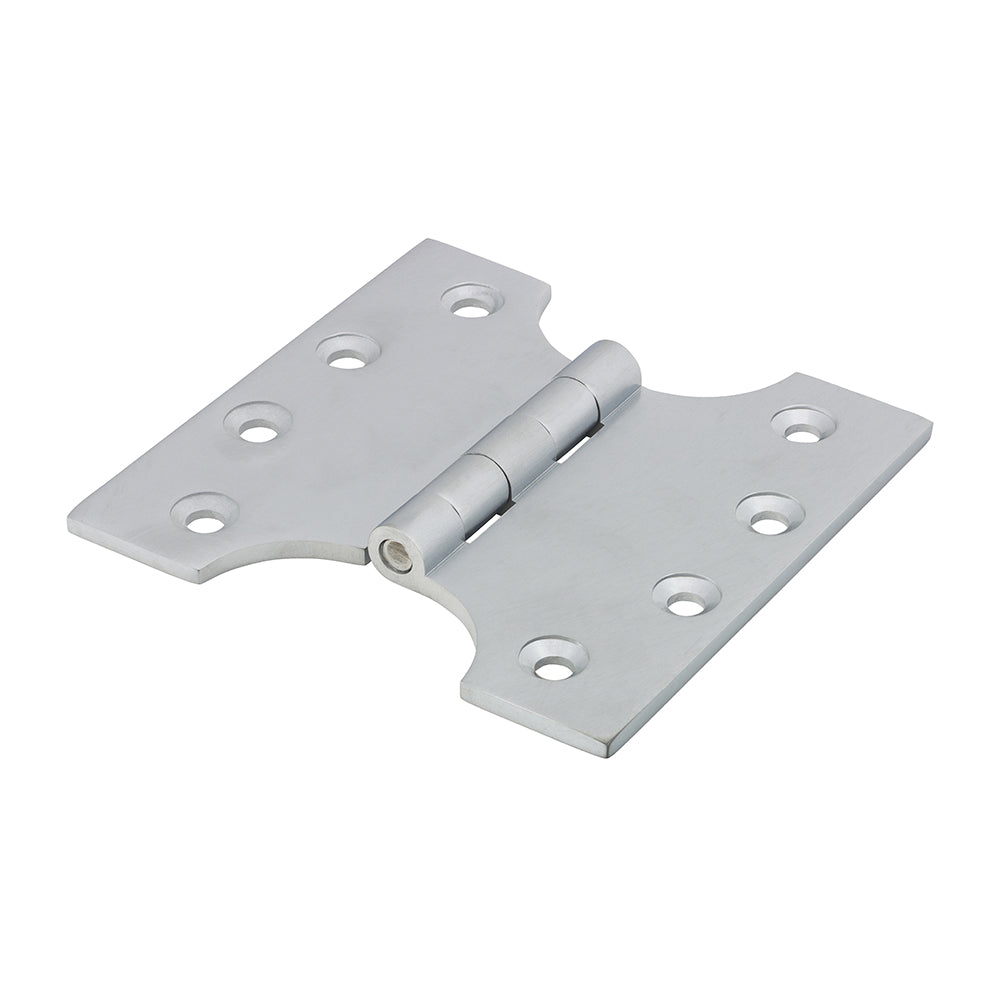

| SC | 102 x 100 | Box (1 pair) | 234002 |

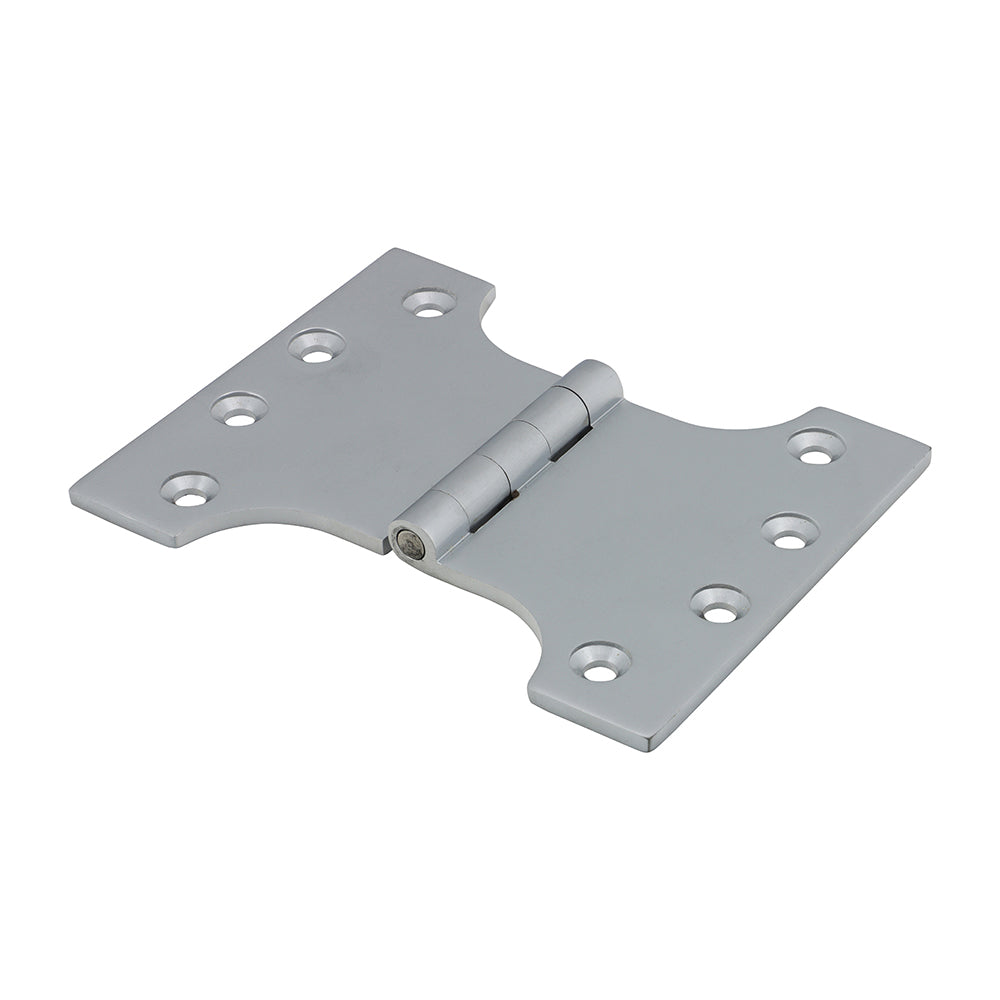

| SC | 102 x 125 | Box (1 pair) | 234500 |

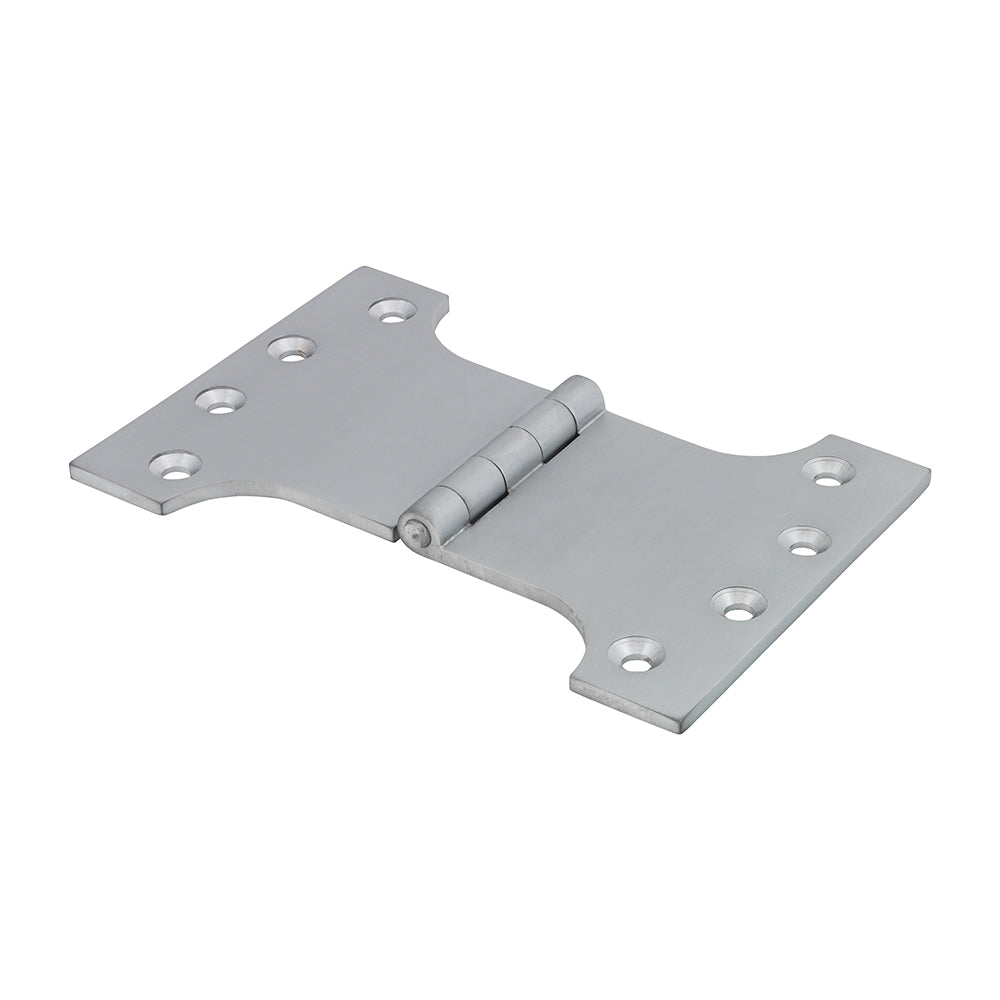

| SC | 102 x 150 | Box (1 pair) | 234222 |
