TIMCO Single Piece Masonry Hanger

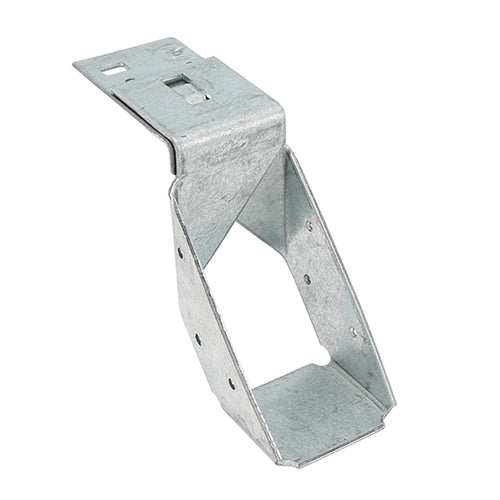

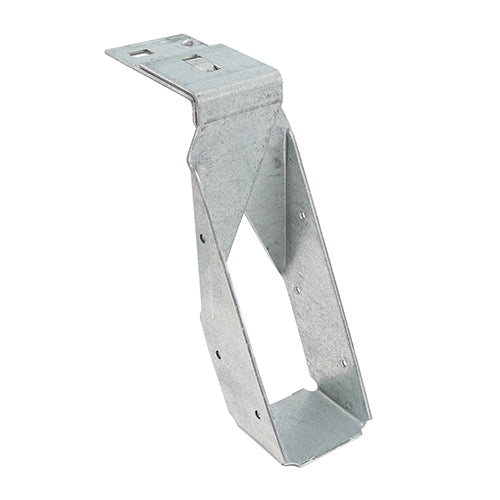

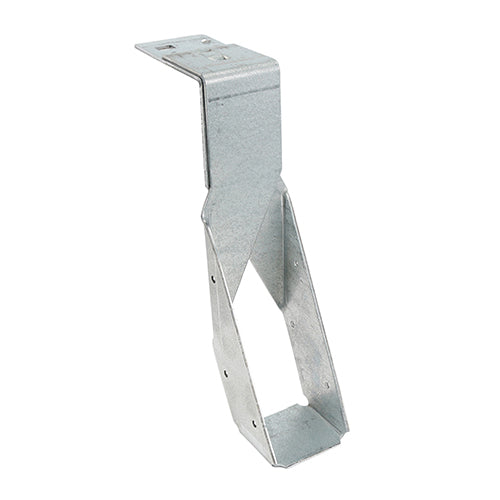

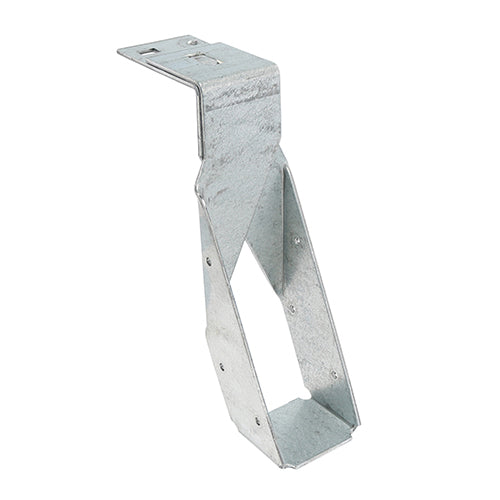

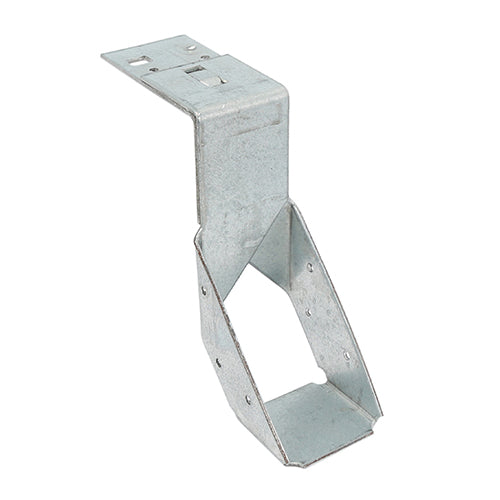

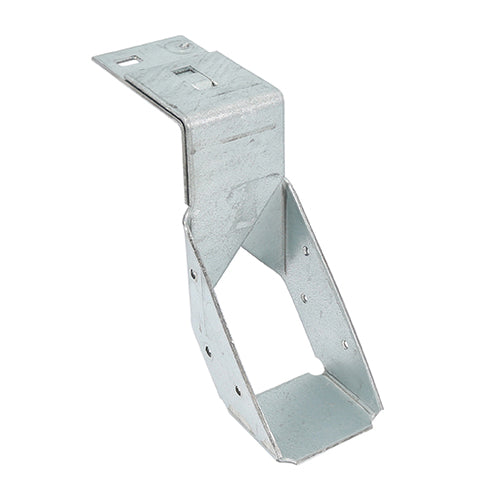

TIMCO Single Piece Masonry Hanger – galvanised joist hanger for masonry walls
A one-piece TIMCO joist hanger for building into masonry walls. It has a straight top flange and no welds, and is made from 2.4mm galvanised steel to EN 845-1.
Hangers above 150mm are made 10mm shorter to allow for notching and regularised timber.
Key features
- One-piece construction – straight top flange, no welds
- 2.4mm galvanised steel
- To EN 845-1
- 6 nail holes
- For 47mm wide joists, 100–225mm deep
Technical information
| Property | Value |
|---|---|
| Characteristic value | 9.7kN (Eurocode 6) |
| Safe working load | 5.4kN (BS 5628) |
| Bearing | 80mm (100–150mm hangers); 75mm (175–225mm hangers) |
| Material | Galvanised steel, 2.4mm |
Installation guidelines
- Make sure the back plate sits flat against the wall and is fixed securely.
- Build at least three block courses (675mm) above the hanger before the joist is loaded.
- Nail the side flanges with 3.75 x 30mm galvanised square twist nails.
- Let the mortar cure fully before any load is applied.
- Keep the gap between wall and joist to 6mm or less.
- Square-cut the joist so it sits tight to the back of the hanger.
Dimensions
| Code | W x H x B (mm) | Joist W x H (mm) |
|---|---|---|
| 47100MH | 47 x 100 x 80 | 47 x 100 |
| 47125MH | 47 x 125 x 80 | 47 x 125 |
| 47147MH | 47 x 140 x 80 | 47 x 150 |
| 47175MH | 47 x 165 x 75 | 47 x 175 |
| 47200MH | 47 x 190 x 75 | 47 x 200 |
| 47225MH | 47 x 215 x 75 | 47 x 225 |
Available sizes and packs
| Size | Pack | Min. order | Code |
|---|---|---|---|
| 47 x 100 | Each | 10 | 47100MH |
| 47 x 125 | Each | 10 | 47125MH |
| 47 x 150 | Each | 10 | 47147MH |
| 47 x 175 | Each | 10 | 47175MH |
| 47 x 200 | Each | 10 | 47200MH |
| 47 x 225 | Each | 10 | 47225MH |
