TIMCO Spring Toggle - BZP

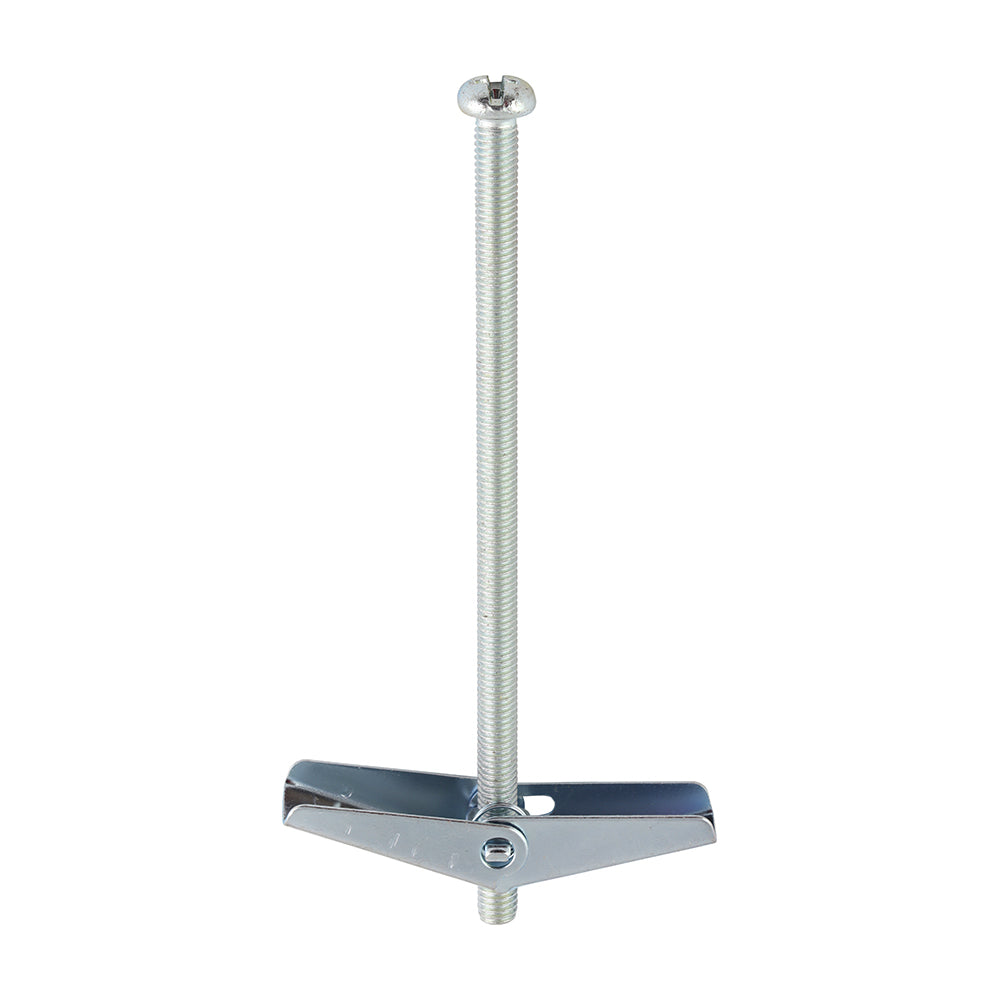

TIMCO Spring Toggle – BZP

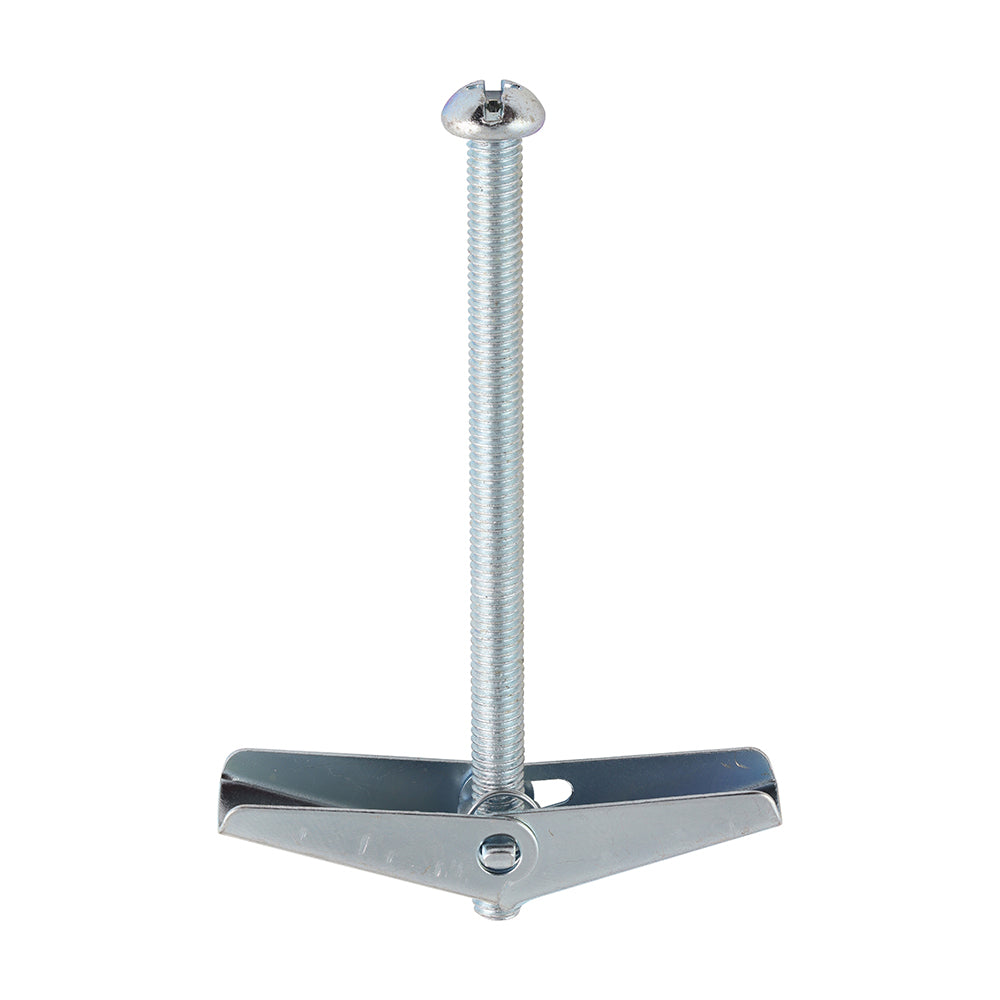

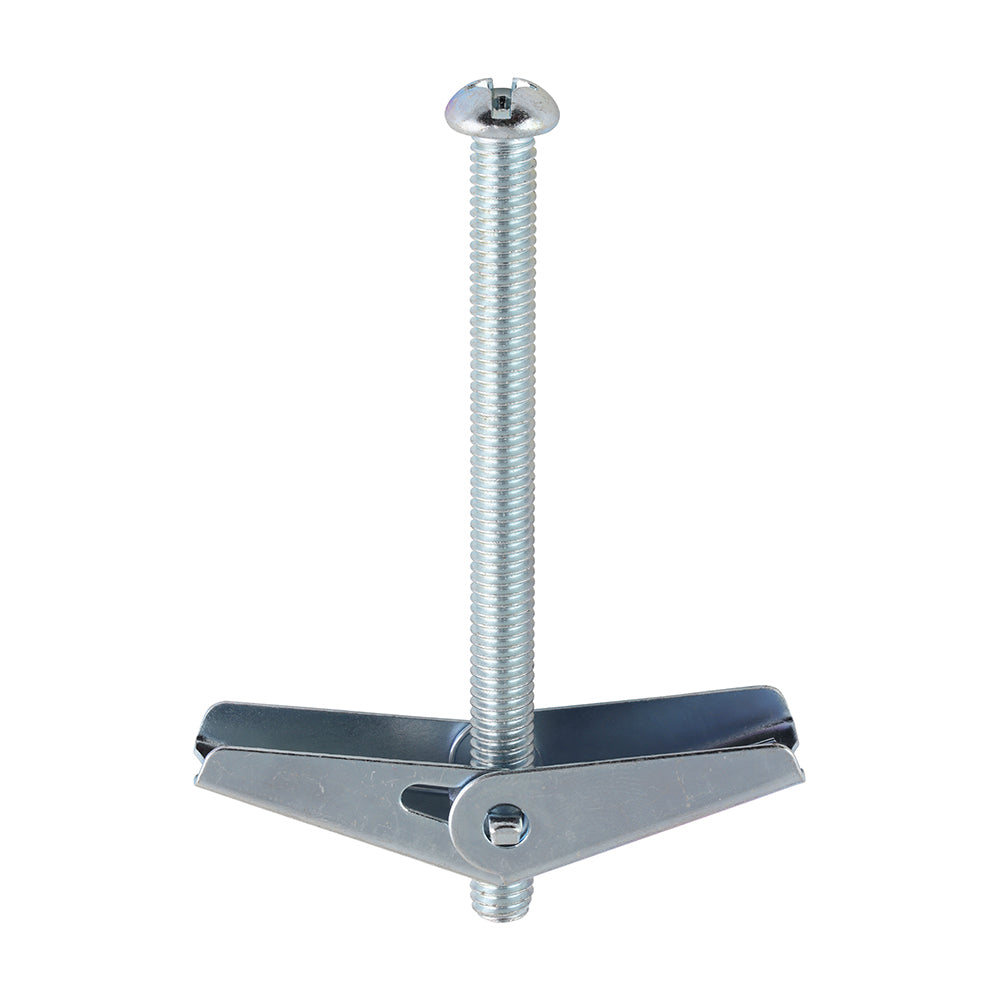

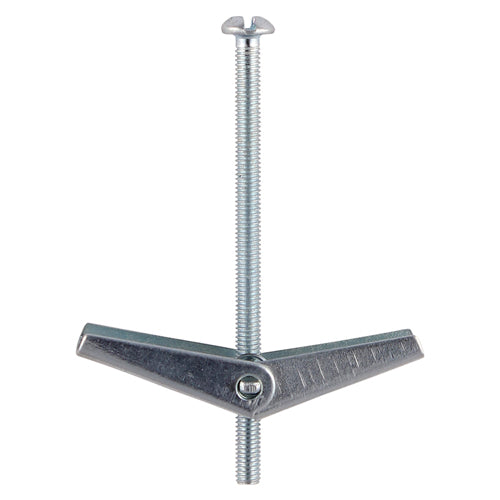

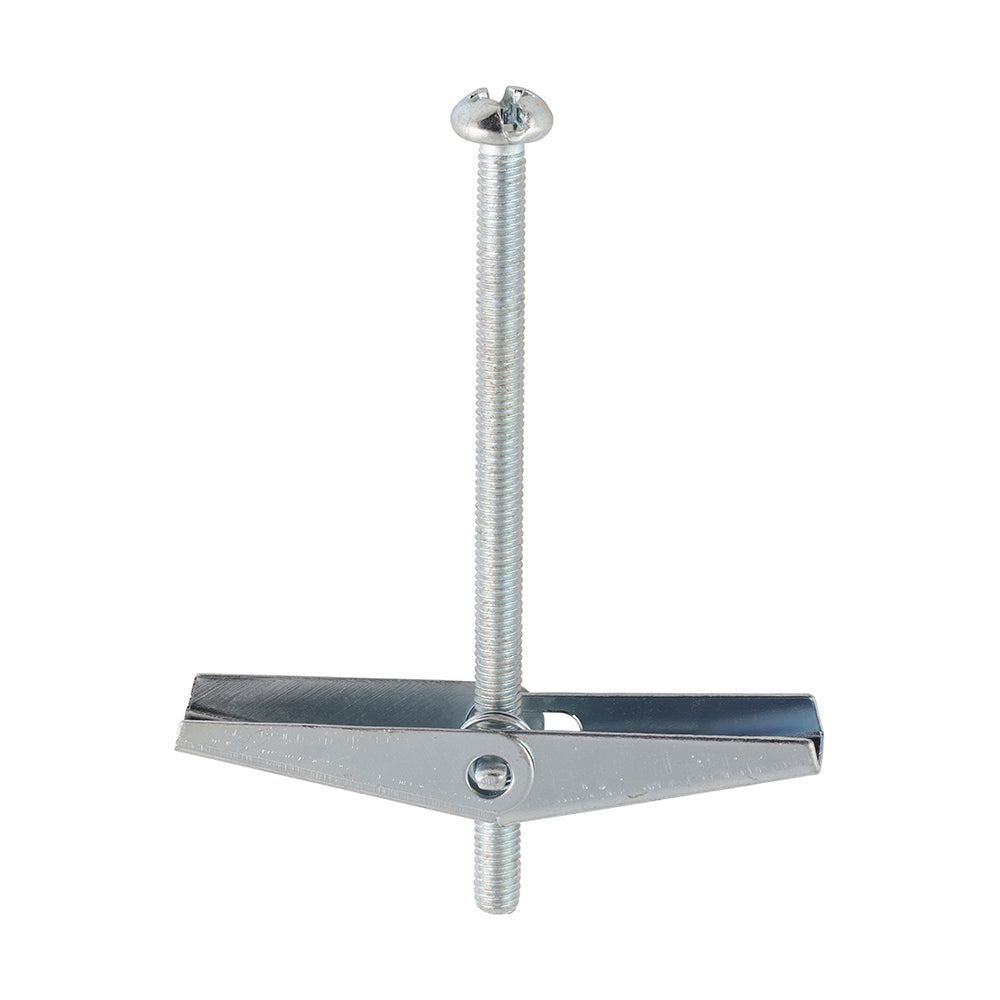

TIMCO spring toggles are cavity fixings ideal for overhead installations. The spring-loaded wings open behind the board and spread the load over a wider area, which makes them suited to heavier loads.
Key features
- Spring-loaded wings open behind the board
- Spreads the load over a wider area
- Sizes M3 to M6
- Box, TIMbag and TIMpac packs
Typical applications
- Ceiling and overhead fixings
- Heavier items on plasterboard
Technical information
| Property | Value |
|---|---|
| Substrate tested | 12.5mm plasterboard |
| Drill hole Ø | M3: 11mm, M5: 14mm, M6: 18mm |
| Min. cavity depth | M3: 20mm, M5 and M6: 30mm |
| Max. rec. load | M3: 11kg, M5: 22kg, M6: 26kg |
How to fit
- Drill a hole of the required diameter.
- Pass the screw through the fixture and into the wings.
- Push the toggle through the hole.
- Let the wings spring open, then tighten the screw until secure.
Sizes
| Screw Ø x L (mm) | Wall and fixture thickness (mm) |
|---|---|
| M3 x 50 | 30 |
| M5 x 50 | 20 |
| M5 x 75 | 45 |
| M5 x 100 | 70 |
| M6 x 75 | 45 |
Available sizes and packs
| Size | Pack | Code |
|---|---|---|

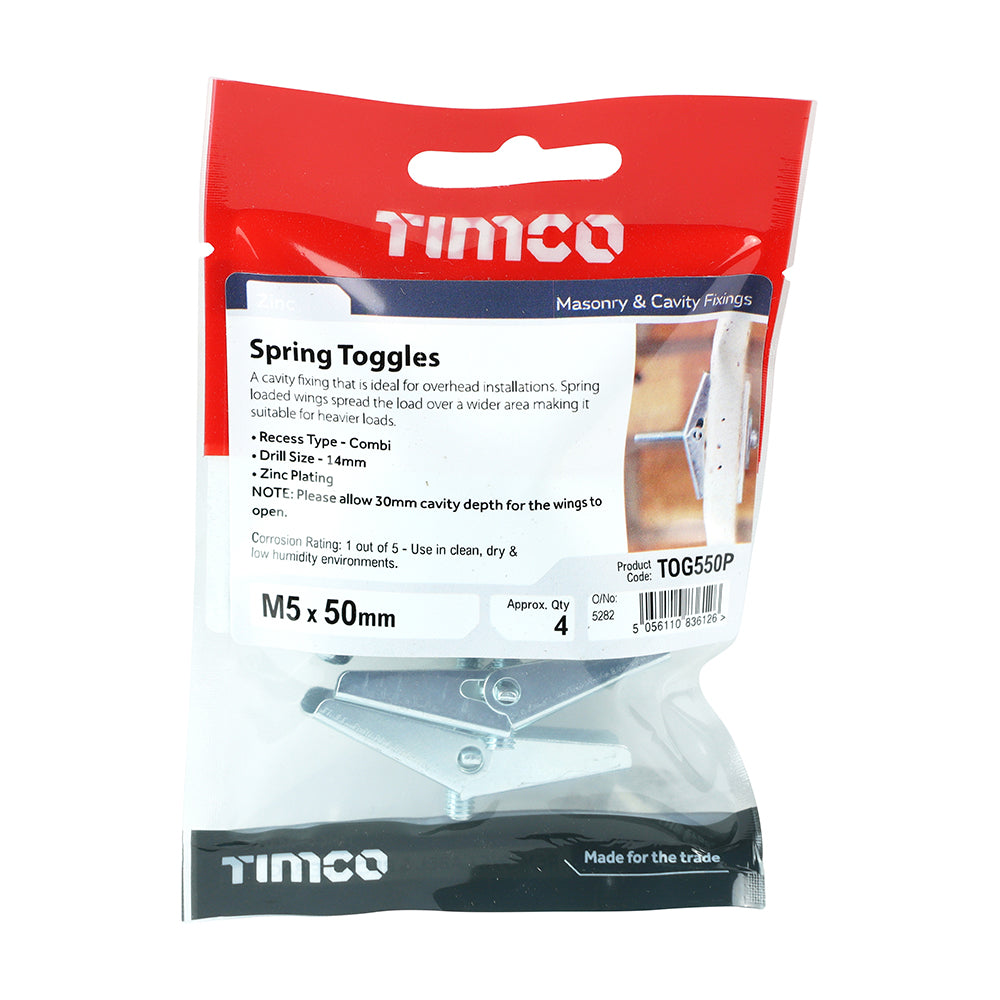

| M5 x 50 | TIMpac of 4 | TOG550P |

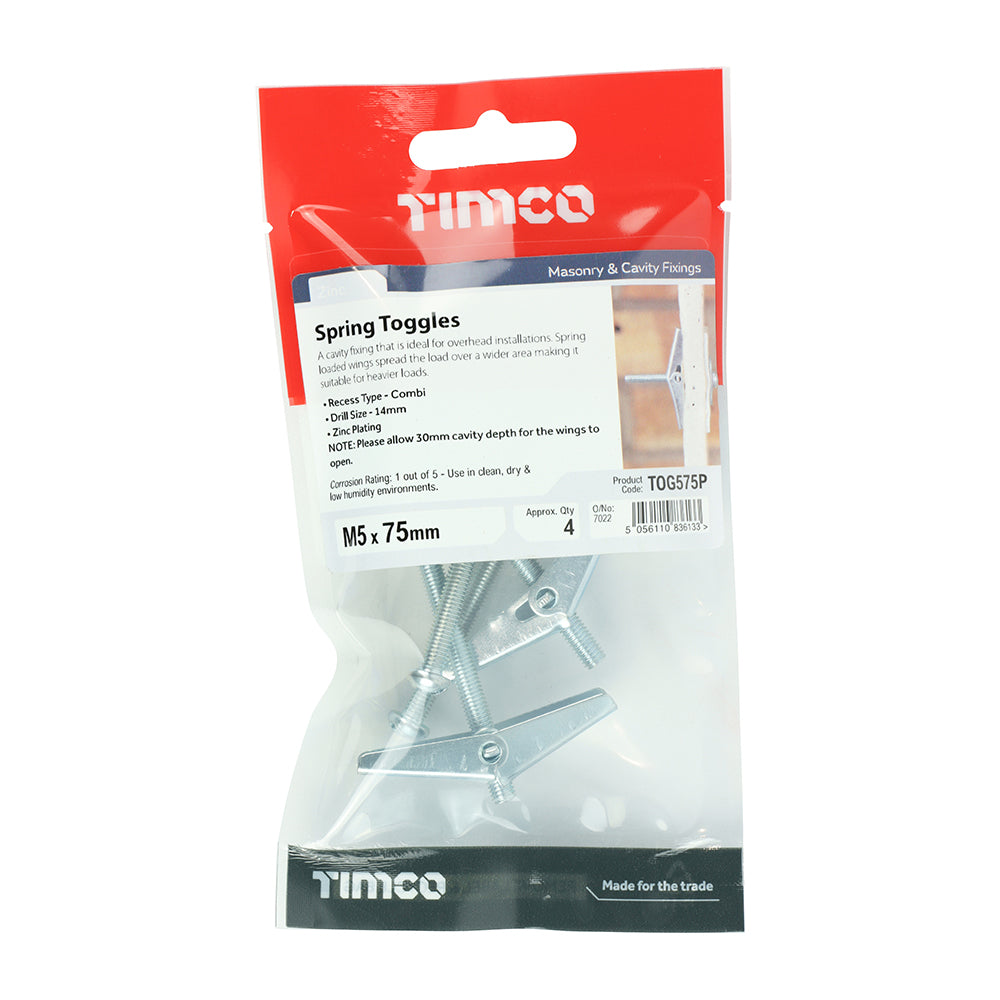

| M5 x 75 | TIMpac of 4 | TOG575P |

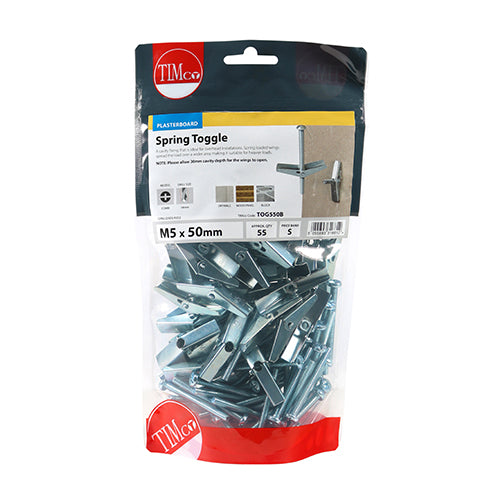

| M5 x 50 | TIMbag of 55 | TOG550B |

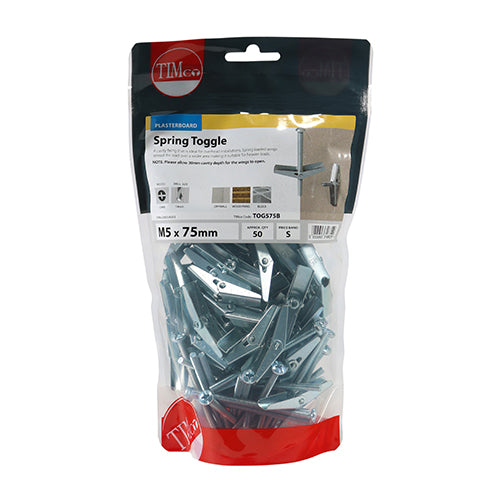

| M5 x 75 | TIMbag of 50 | TOG575B |
| M3 x 50 | Box of 100 | TOG350 |

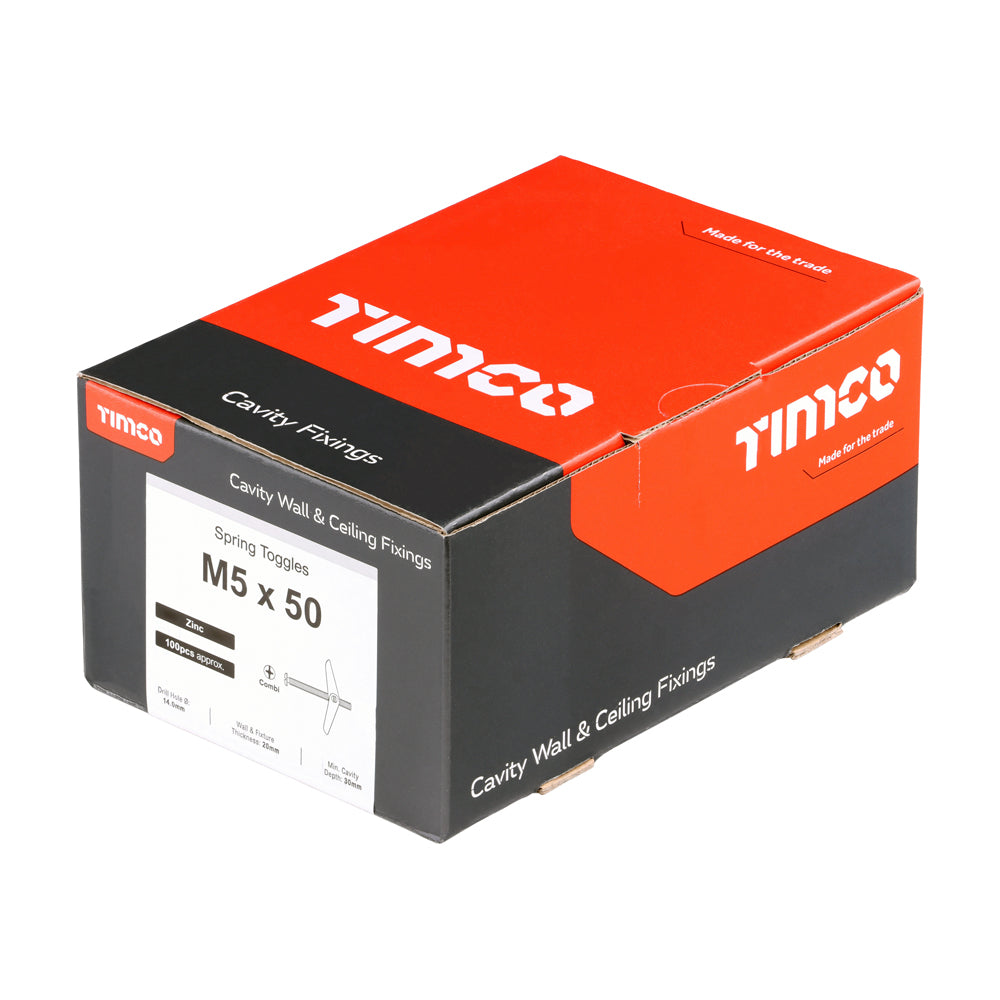

| M5 x 50 | Box of 100 | TOG550 |

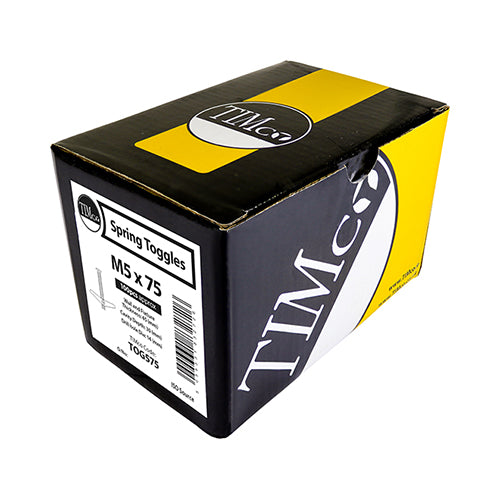

| M5 x 75 | Box of 100 | TOG575 |
| M5 x 100 | Box of 100 | TOG5100 |
| M6 x 75 | Box of 100 | TOG675 |
