TIMCO | SKU: SFH300G

TIMCO Standard Double Strap Set HDG

£27.37

Size

300mm 450mm 600mm

Product variants

Customer Services

Got a query? Call 0330 055 8210

We're open from 8am to 5pm, Monday to Thursday, and 8am to 4:30pm on Friday.

Delivery and Shipping

Delivery is £12.50 + VAT to UK Mainland. Orders over £100.00 + VAT qualify for free delivery, except for certain products—these will be clearly shown at checkout.

Orders placed by 3pm (stock permitting) are dispatched the same working day on a next working day service (not guaranteed).

Some areas, like Northern Scotland, may take 2–3 working days.

Northern Ireland, Channel Islands and Isle of Man at extra cost – contact us for a quote

We're open:
Mon–Thurs: 8am–5pm
Friday: 8am–4:30pm

Call us: 0330 055 8210

TIMCO Standard Double Strap Hinge Set – galvanised

For field gates and driveway gates hung on timber posts. The top band and bottom strap wrap around the gate and are fixed with cup square bolts, giving the gate excellent support. The hook to bolt has a 9mm drilled hole for an R clip or linch pin (not included) to stop the gate being lifted off, and the hook to drive is barbed so it does not work loose. Depending on how the gate’s weight is distributed, the top or bottom pin can be fitted upside down to stop the gate being lifted off. Hot dipped galvanised, fixings included.

Key features

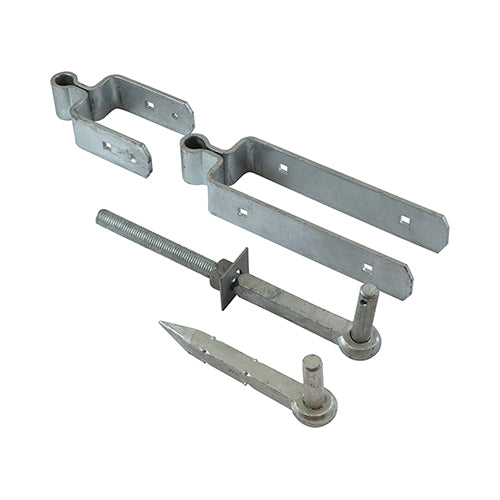

Contents: top strap, bottom strap, hook to drive, hook to bolt
M10 x 95mm galvanised cup square bolts, M10 hex nuts and washers, 6.0 x 40mm exterior woodscrews
Hook to bolt M20 x 350mm; hook to drive 215mm; pin Ø 19mm (¾")
Suits gates 75mm (3") thick

Typical applications

Field and driveway gates on timber posts

Sizes

Top strap length	Bottom strap length	To suit gate width	Carriage bolts
300mm (12")	150mm (6")	900–1200mm (3–4ft)	3 x M10
450mm (18")	150mm (6")	1200–2700mm (4–9ft)	4 x M10
600mm (24")	150mm (6")	2700–3600mm (9–12ft)	4 x M10
