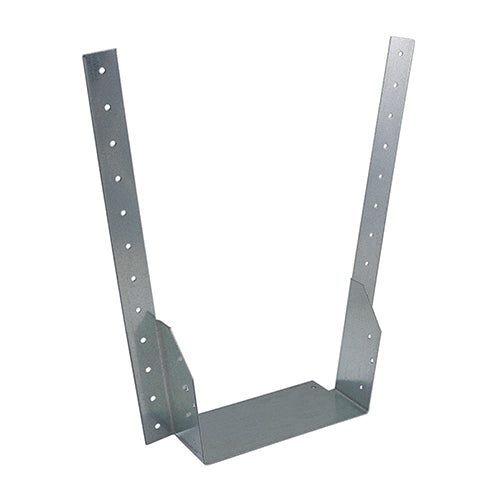

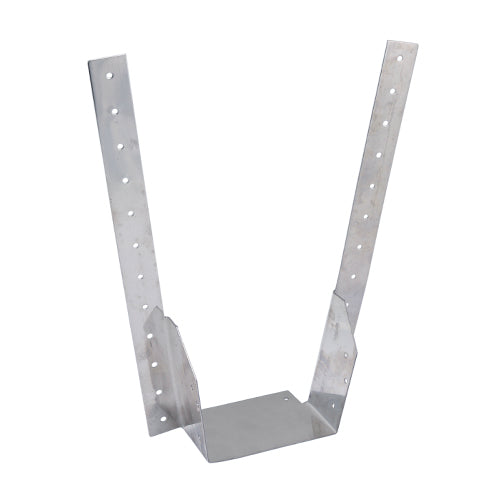

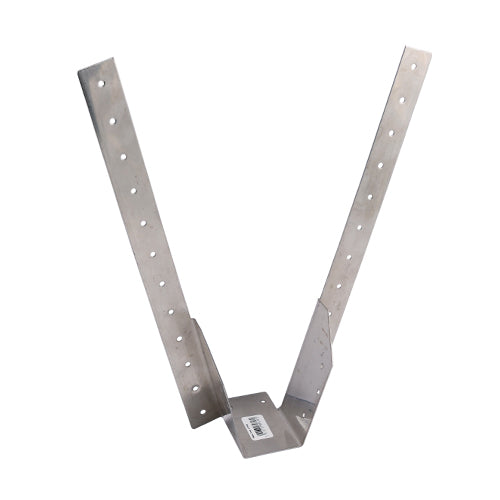

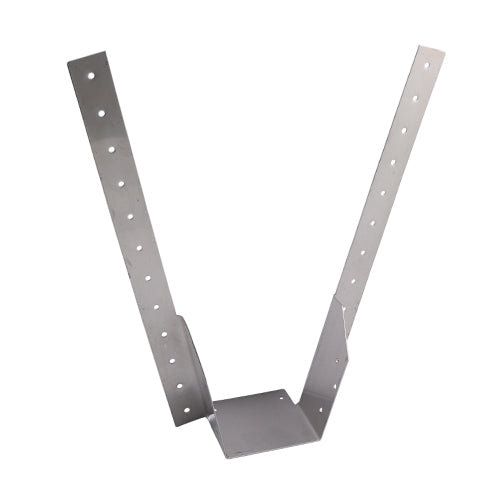

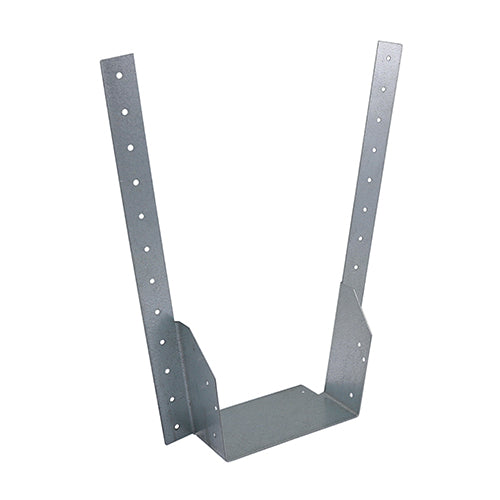

TIMCO Standard Timber Hanger
TIMCO Standard Timber Hanger – timber-to-timber joist hanger
A quick and simple TIMCO hanger for timber-to-timber connections such as joists and stairwell trimmings. Its longer legs mean every width can take a joist up to 225mm deep.
Available in 1.0mm galvanised steel or 1.0mm A2 (304) stainless steel.
Key features
- Quick, simple timber-to-timber connection
- Longer legs – takes joists up to 225mm deep
- 50mm bearing
- 32 nail holes
- Galvanised or A2 (304) stainless steel, 1.0mm
Typical applications
- Joists
- Stairwell trimmings
Technical information
| Property | Value |
|---|---|
| Bearing | 50mm |
| Nail holes | 32 |
| Characteristic value | 15.44kN (Eurocode 5) |
| Safe working load – short term | 7.72kN |
| Safe working load – medium term | 7.35kN |
| Safe working load – long term | 6.43kN |
Installation guidelines
- Make sure the back plate of the hanger sits flat against the timber.
- Square-cut the joist so it sits tight to the back of the hanger.
- Fix the joist through every hole with 3.75 x 30mm galvanised square twist nails. For stainless steel applications use 2.36 x 30mm stainless steel annular ringshank nails.
Dimensions
| Code | Material | W x L x B (mm) | Joist W x H (mm) |
|---|---|---|---|
| 125TH | Galvanised | 125 x 300 x 50 | 125 x 100 to 225 |
| 150TH | Galvanised | 150 x 300 x 50 | 150 x 100 to 225 |
| 47THS | A2 stainless steel | 47 x 277 x 50 | 47 x 100 to 225 |
| 76THS | A2 stainless steel | 76 x 300 x 50 | 76 x 100 to 225 |
| 100THS | A2 stainless steel | 100 x 300 x 50 | 100 x 100 to 225 |
Characteristic values to Eurocode 5. Safe working loads are short, medium and long term values as given in the TIMCO brochure.
Available sizes and packs
| Finish | Size | Pack | Min. order | Code |
|---|---|---|---|---|
| Galvanised | 125 x 100 to 225 | Each | 10 | 125TH |
| Galvanised | 150 x 100 to 225 | Each | 10 | 150TH |
| A2 Stainless Steel | 47 x 100 to 225 | Each | 20 | 47THS |
| A2 Stainless Steel | 76 x 100 to 225 | Each | 20 | 76THS |
| A2 Stainless Steel | 100 x 100 to 225 | Each | 10 | 100THS |
