TIMCO Stella Fix Anchor TX PAN
TIMCO Stella-Fix Universal Anchor TX Pan
Stella-Fix from TIMCO is a universal anchor for fixing heavy loads to plasterboard, cavities and solid materials. Drill, push the plug in and screw. Use the red fixing for single boards and the black fixing for double boards.
Key features
- Drill, push in and fix

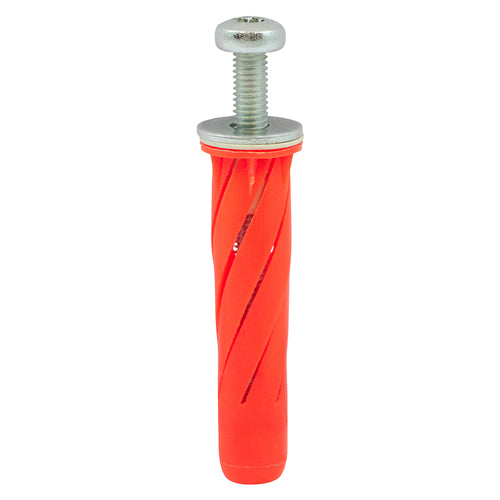

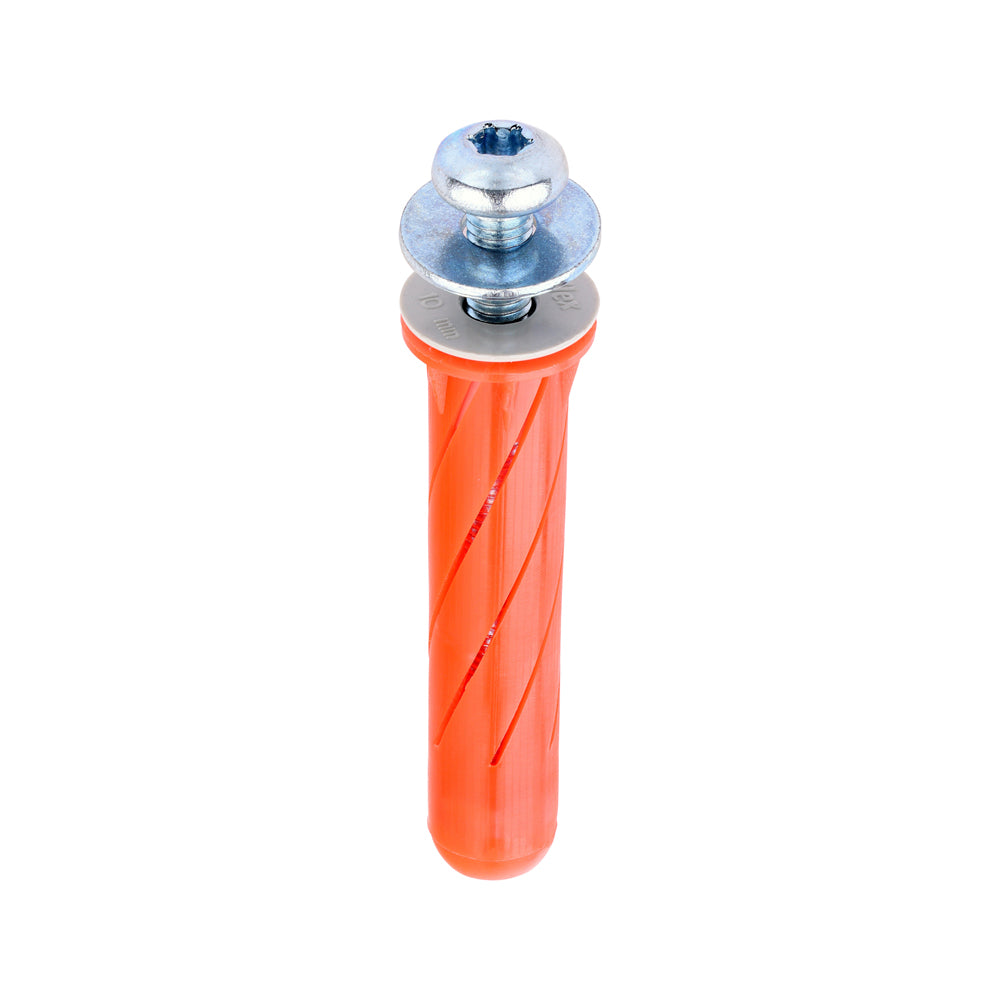

- Red fixing for 3–18mm board thickness, with a 49mm plug

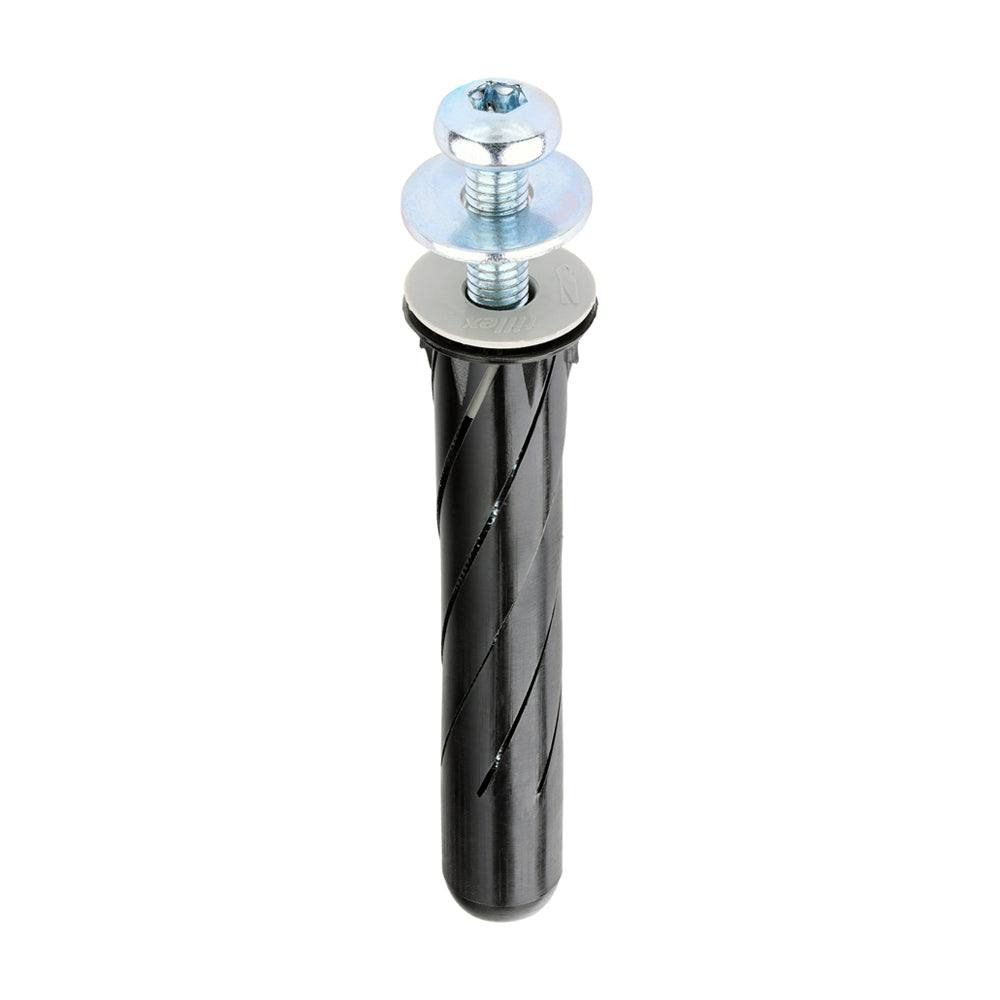

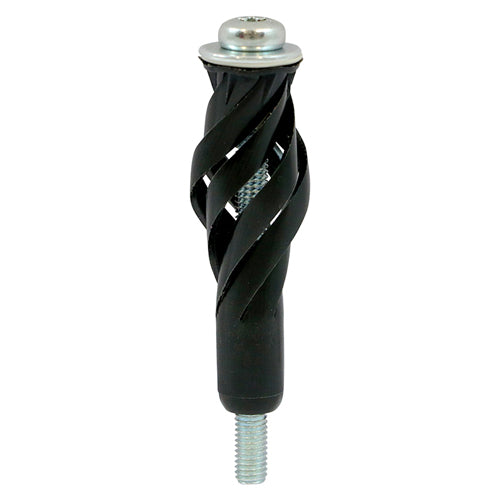

- Black fixing for 18–30mm board thickness, with a 59mm plug
- M5 TX pan head screw
- Fits a 10mm drilled hole
Typical applications
- TV brackets
- Radiators
- Cabinets
Technical information
| Property | Value |
|---|---|
| Drill hole Ø | 10mm |
| Max. rec. load: 12.5mm plasterboard (red) | 33kg (0.33kN) |
| Max. rec. load: 15mm dense board (red) | 41kg (0.41kN) |
| Max. rec. load: 25mm double board (black) | 48kg (0.48kN) |
How to fit
- Drill a 10mm hole.
- Push the Stella-Fix plug firmly into the hole.
- Put the screw through the fixture into the plug.
- Tighten until the fixing is secure.
Sizes
| Fixing | Screw (mm) | Plug length (mm) | Board thickness (mm) | Max. fixture thickness (mm) |
|---|---|---|---|---|
| Red | M5 x 55 | 49 | 3–18 | 15 |

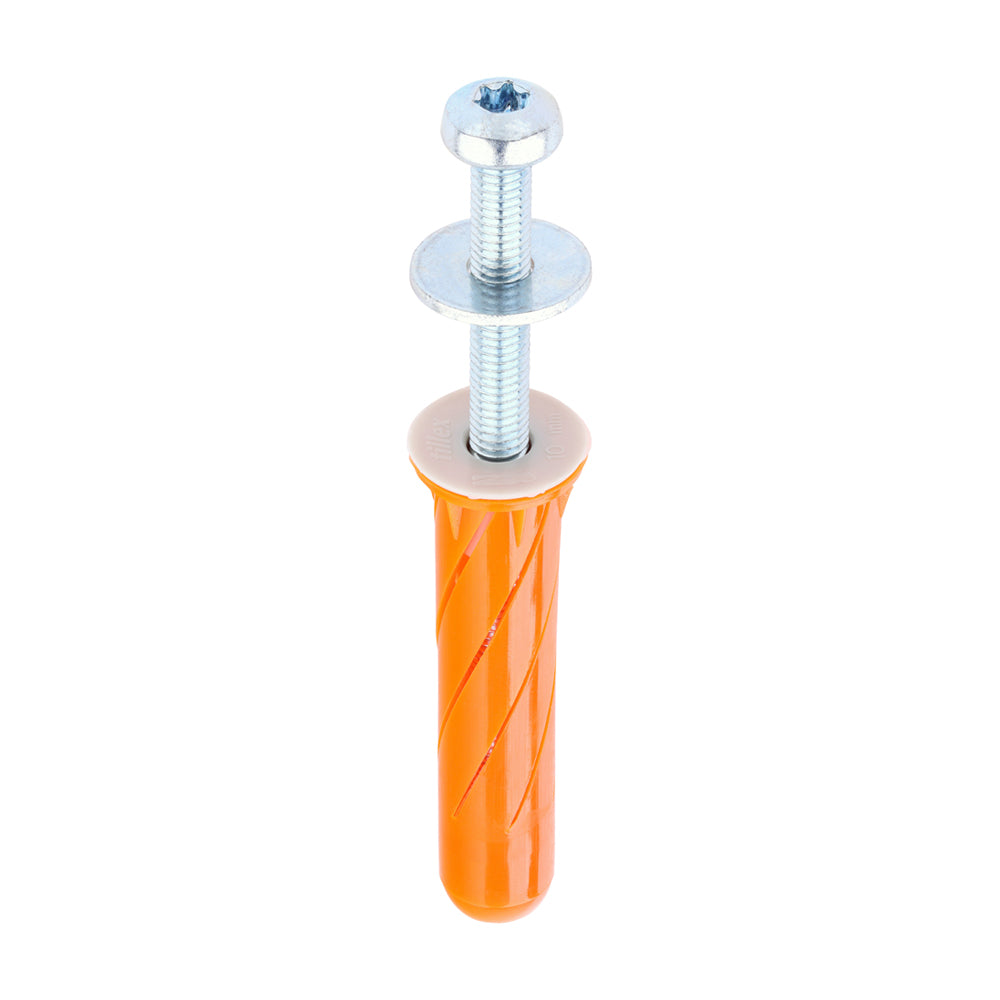

| Red | M5 x 80 | 49 | 3–18 | 40 |
| Black | M5 x 65 | 59 | 18–30 | 12 |
| Black | M5 x 90 | 59 | 18–30 | 38 |
Available sizes and packs
| Colour | Size | Pack | Code |
|---|---|---|---|

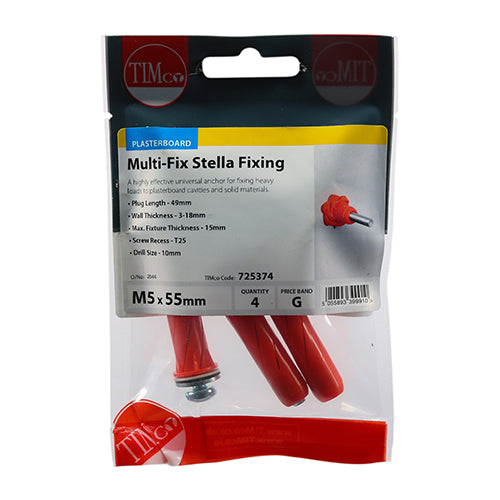

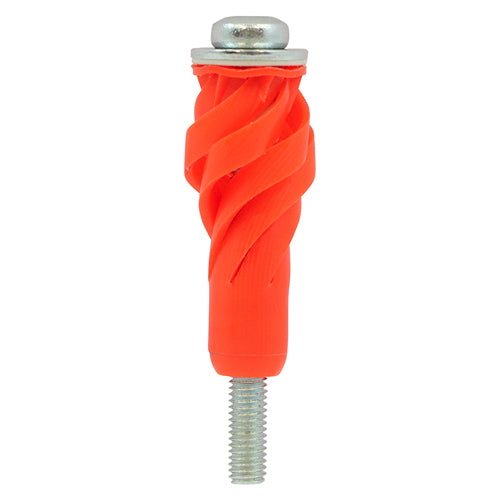

| Red | M5 x 55 | TIMpac of 4 | 725374 |

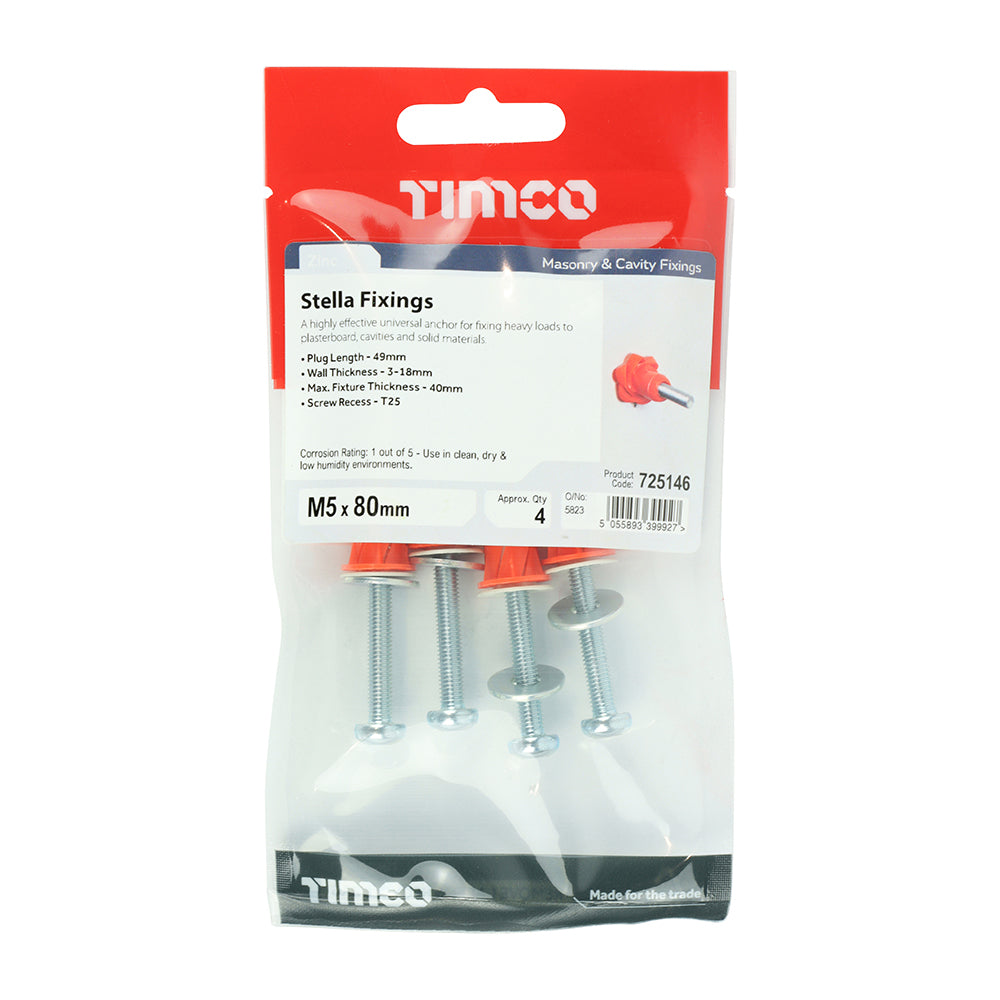

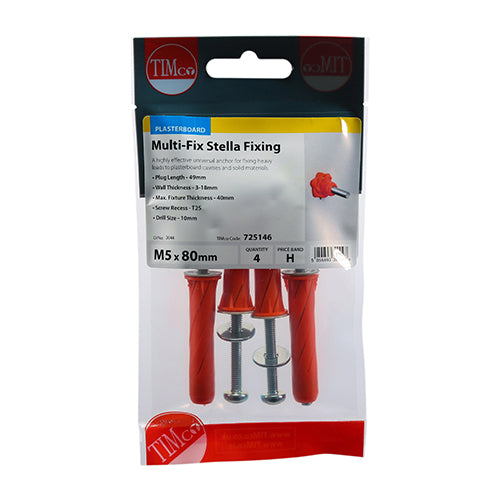

| Red | M5 x 80 | TIMpac of 4 | 725146 |

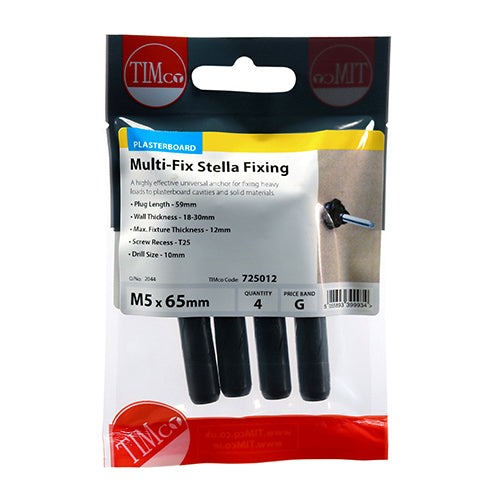

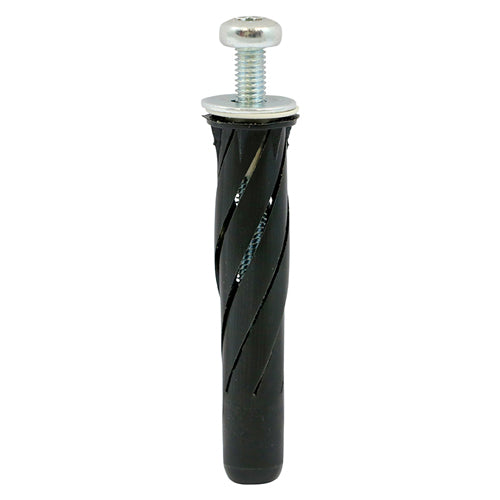

| Black | M5 x 65 | TIMpac of 4 | 725012 |

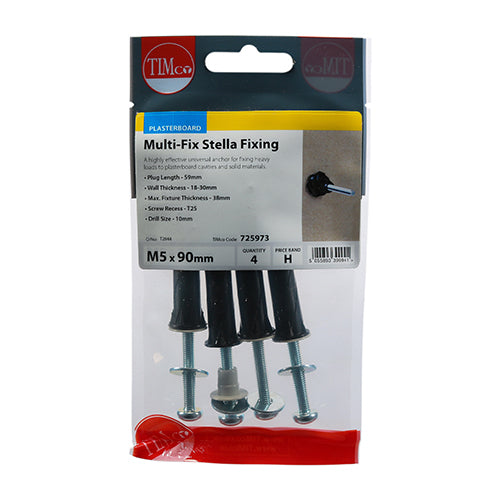

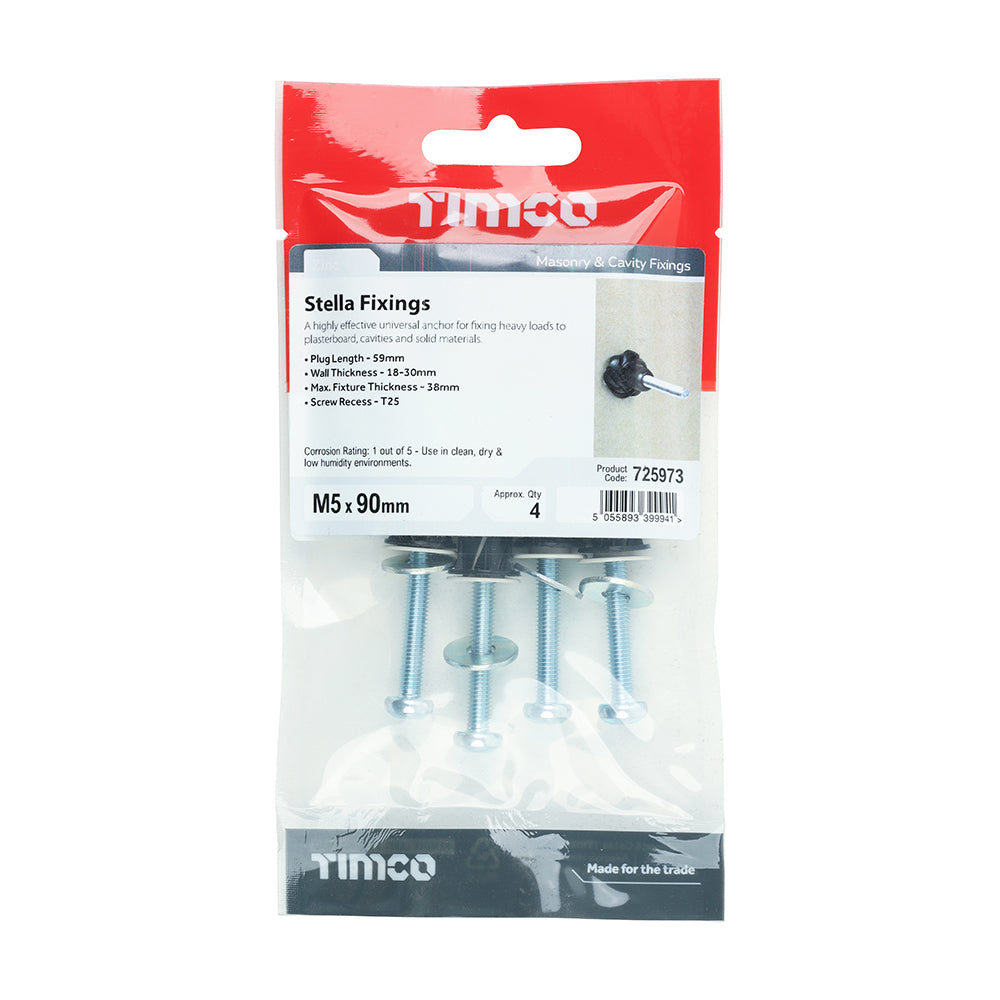

| Black | M5 x 90 | TIMpac of 4 | 725973 |

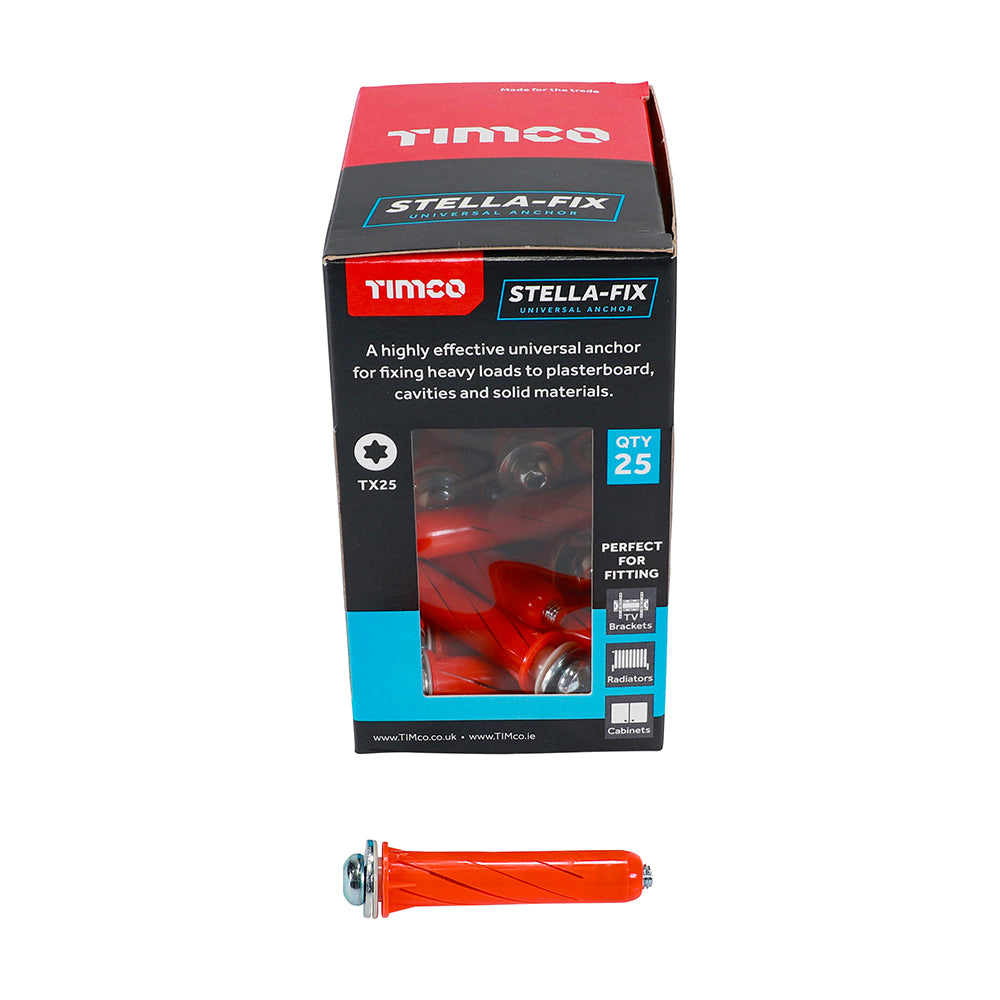

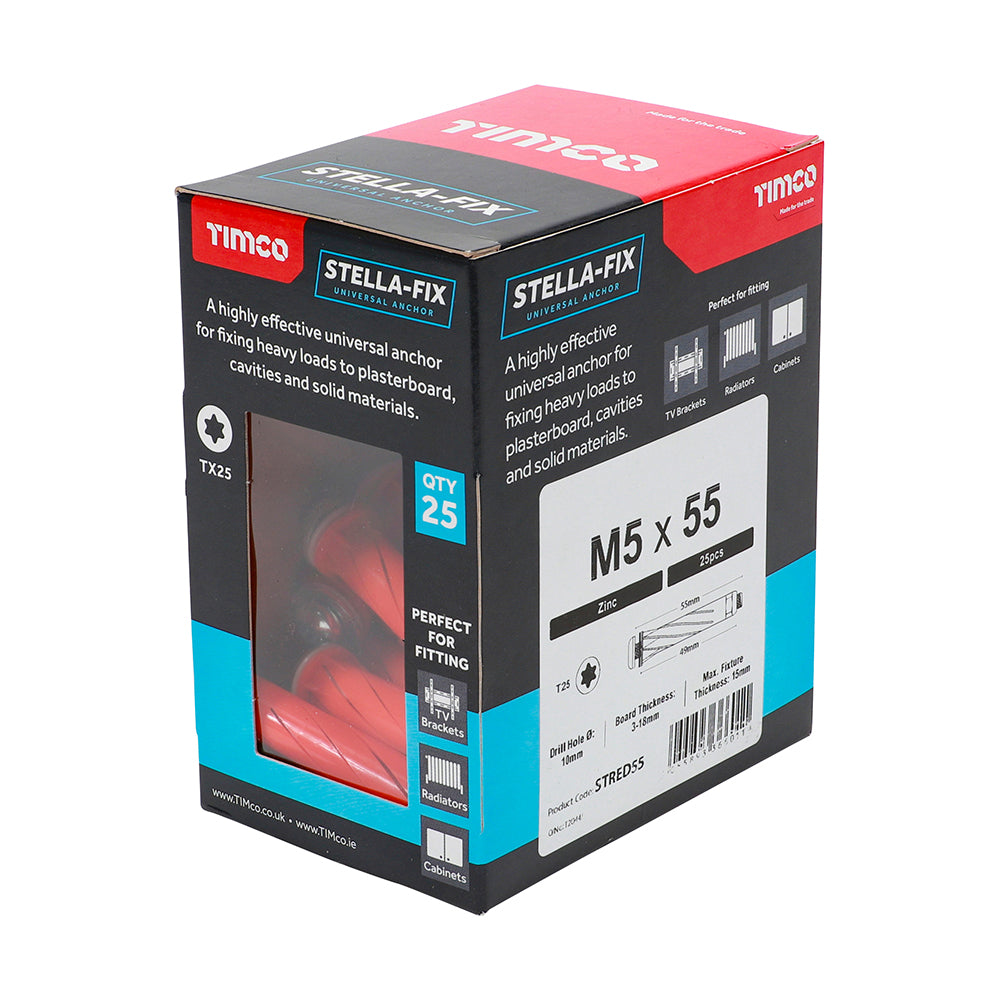

| Red | M5 x 55 | Box of 25 | STRED55 |

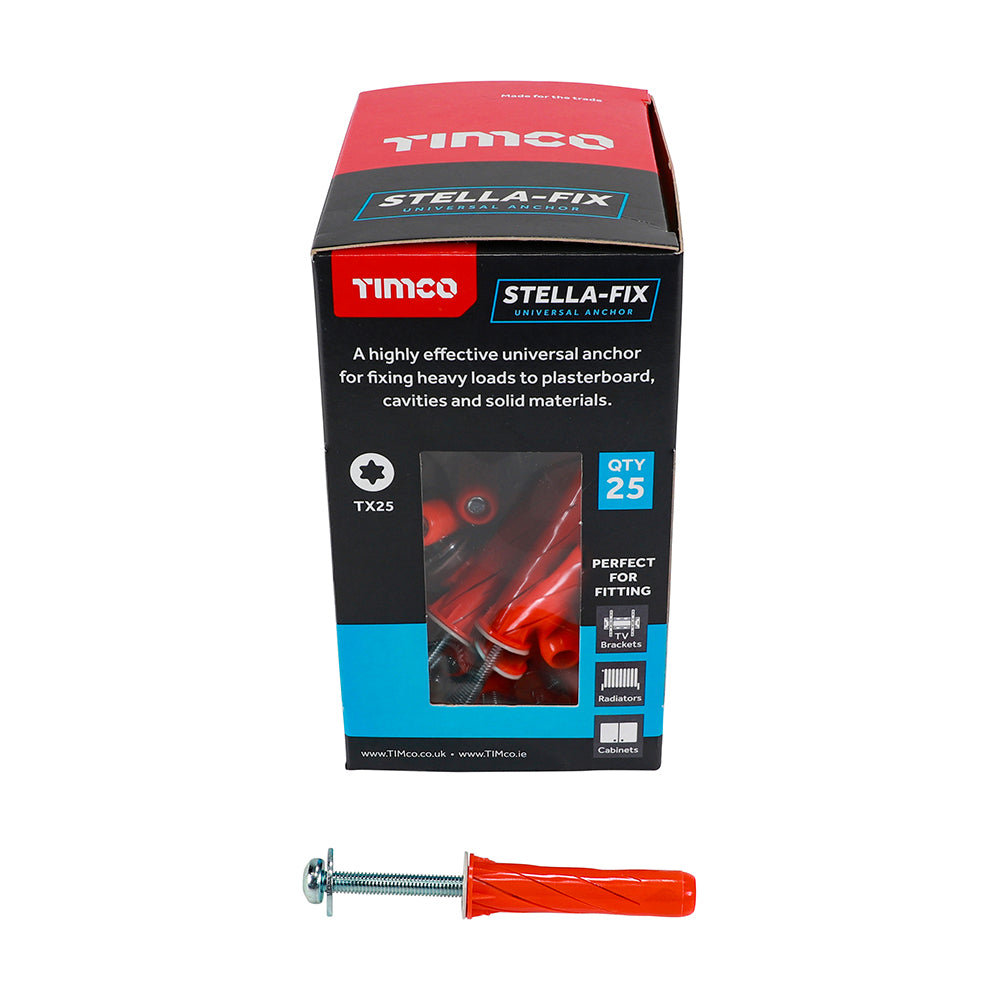

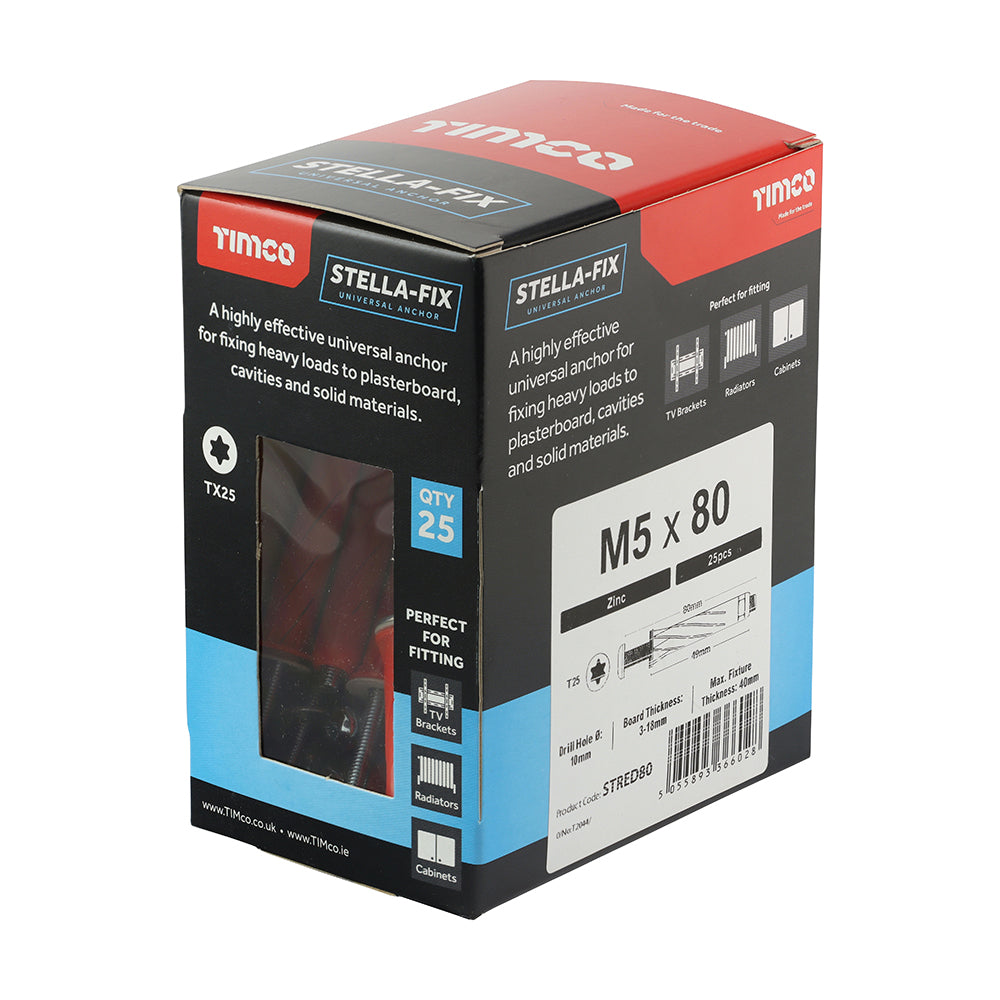

| Red | M5 x 80 | Box of 25 | STRED80 |

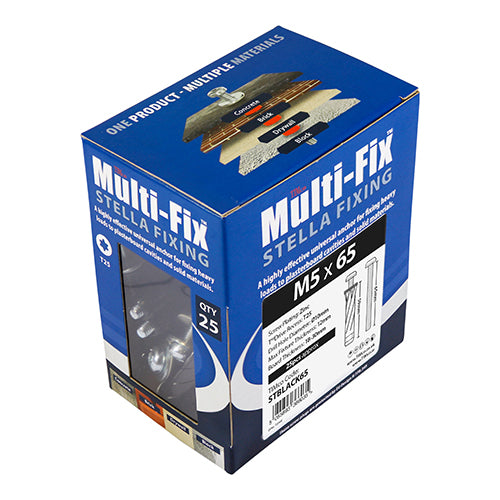

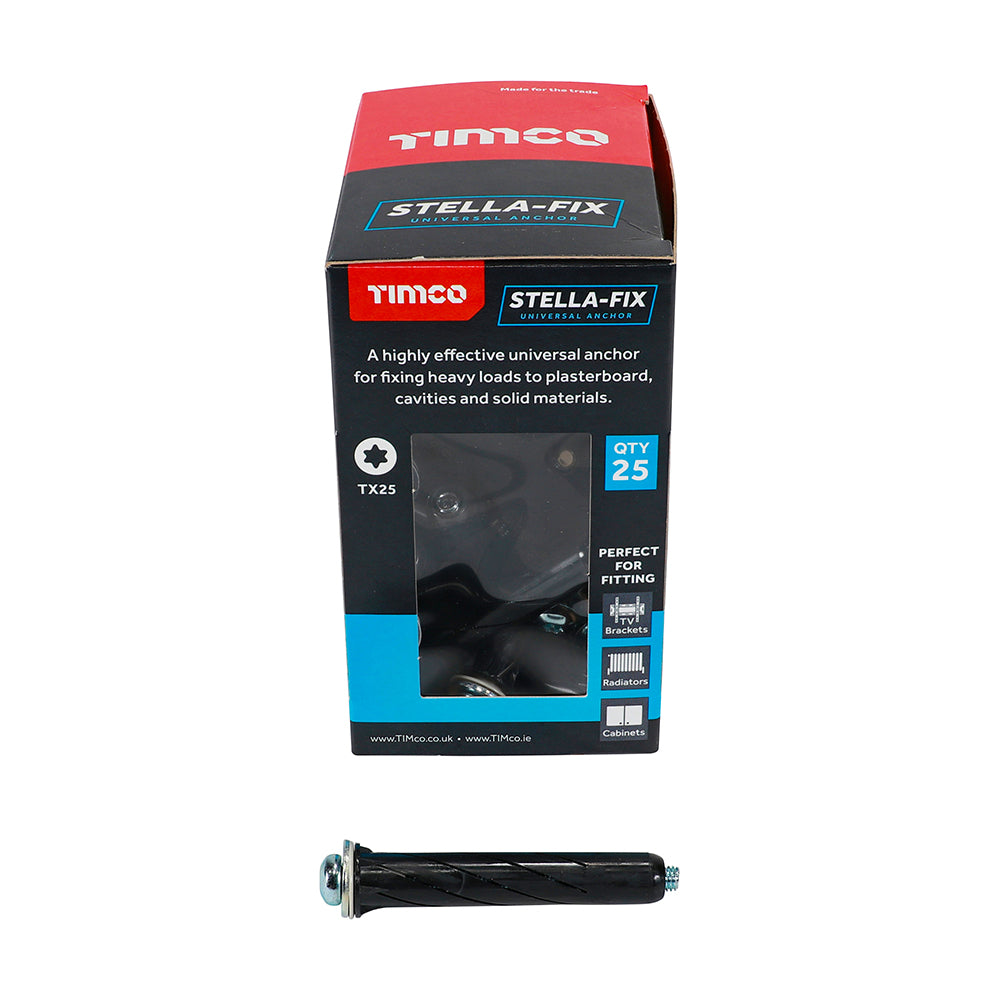

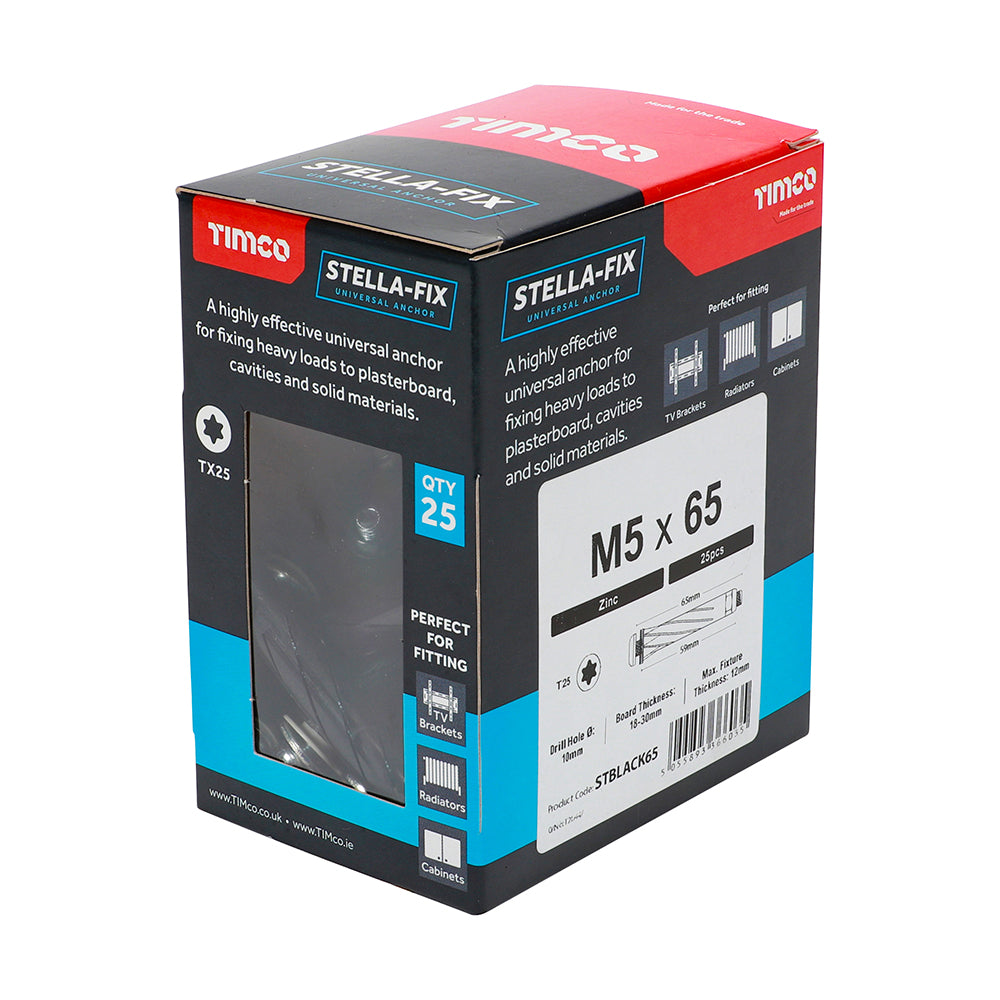

| Black | M5 x 65 | Box of 25 | STBLACK65 |

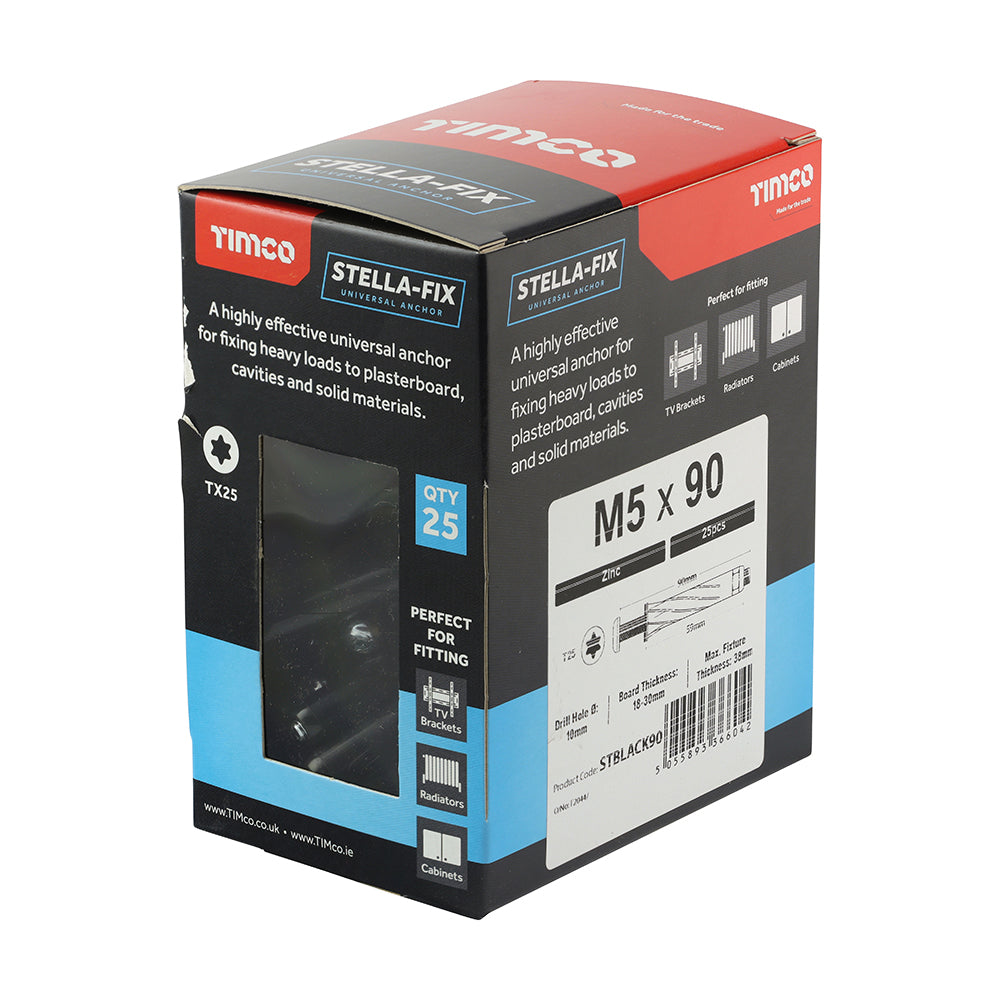

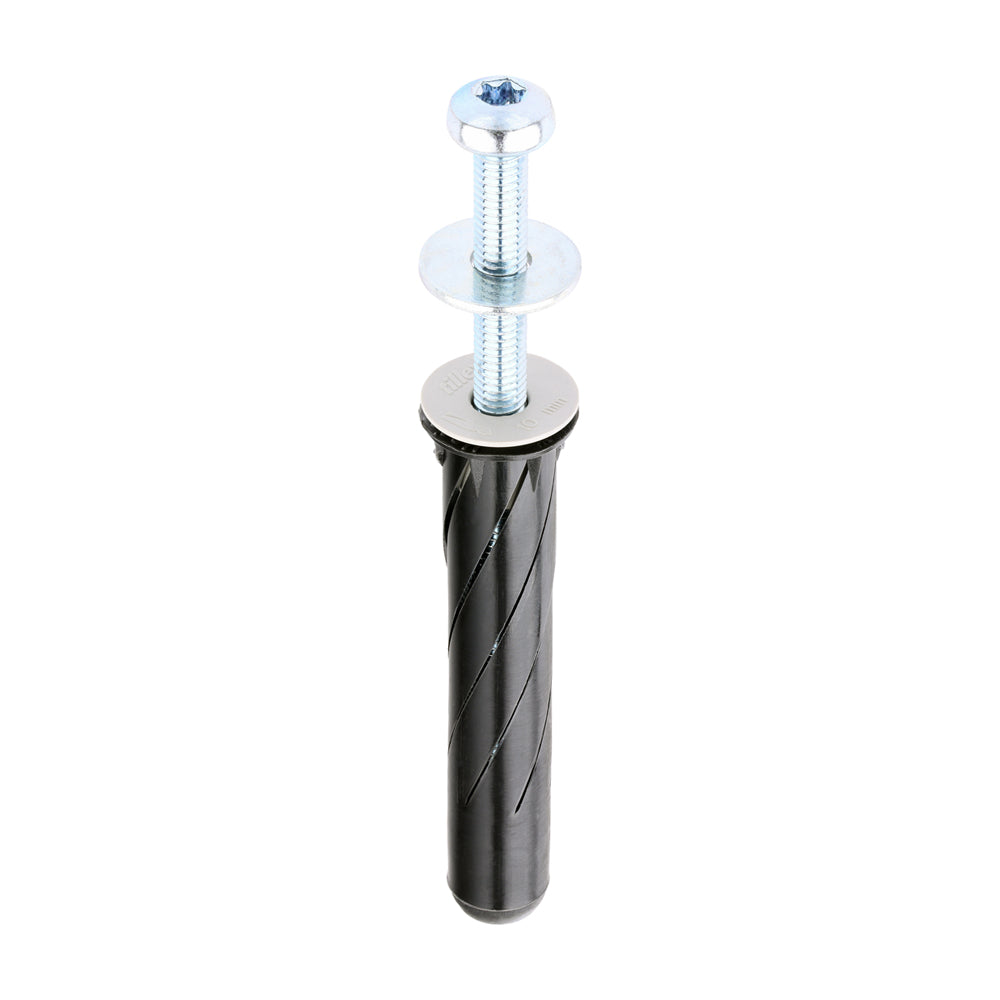

| Black | M5 x 90 | Box of 25 | STBLACK90 |
