TIMCO Timber Hanger - Long Leg
TIMCO Timber Hanger – Long Leg, for deeper timber
A TIMCO long leg timber hanger designed for deeper timber-to-timber work. It is ideal for loft conversions and "under-slung" floor joists, where the hanger extends below the supporting beam. Every width can take a joist up to 250mm deep.
Made from 1.2mm galvanised steel.
Key features
- Designed for deeper timber
- Takes joists up to 250mm deep
- 50mm bearing
- 46 nail holes
- 1.2mm galvanised steel
Typical applications
- Loft conversions
- "Under-slung" floor joists where the hanger extends below the supporting beam
Technical information
| Property | Value |
|---|---|
| Bearing | 50mm |
| Nail holes | 46 |
| Characteristic value | 28.04kN (Eurocode 5) |
| Safe working load – short term | 14.02kN |
| Safe working load – medium term | 13.35kN |
| Safe working load – long term | 11.68kN |
| Material | Galvanised steel, 1.2mm |
Installation guidelines
- Make sure the back plate of the hanger sits flat against the timber.
- Square-cut the joist so it sits tight to the back of the hanger.
- Fix the joist through every hole with 3.75 x 30mm galvanised square twist nails. For stainless steel applications use 2.36 x 30mm stainless steel annular ringshank nails.
Dimensions
| Code | W x L x B (mm) | Joist W x H (mm) |
|---|---|---|

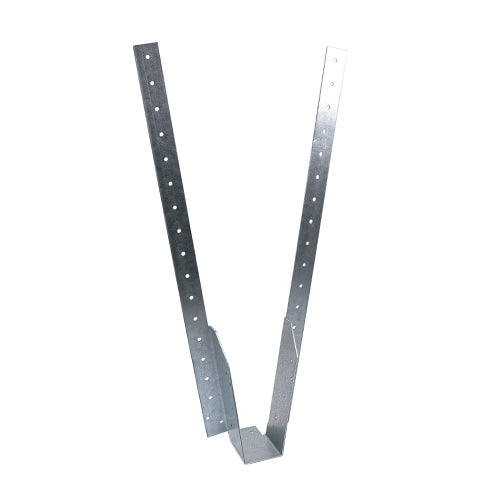

| 44450LTH | 44 x 453 x 50 | 44 x 150 to 250 |

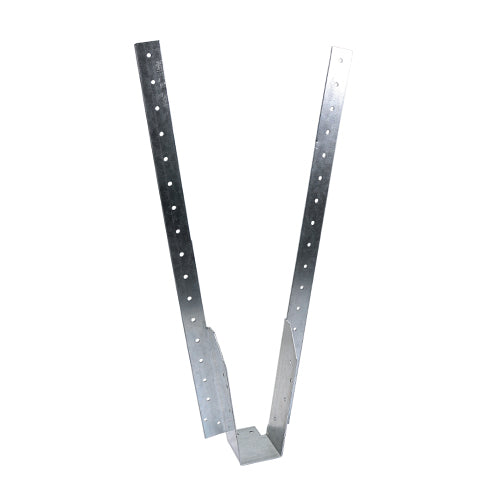

| 47450LTH | 47 x 445 x 50 | 47 x 150 to 250 |

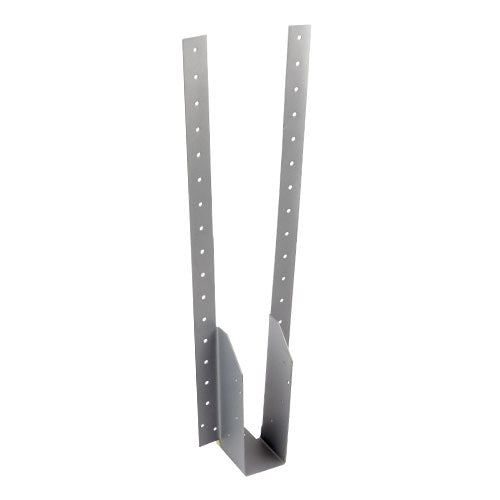

| 76450LTH | 76 x 435 x 50 | 76 x 175 to 250 |

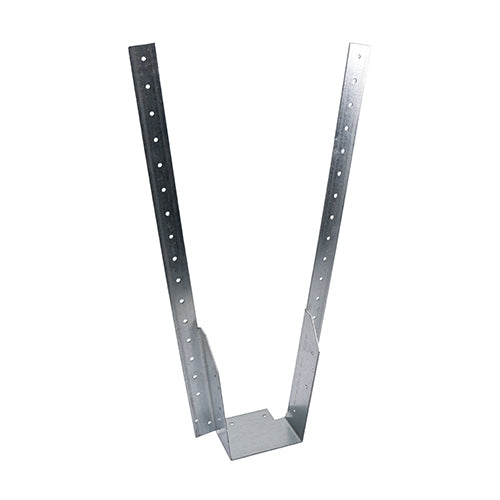

| 90450LTH | 90 x 425 x 50 | 90 x 150 to 250 |

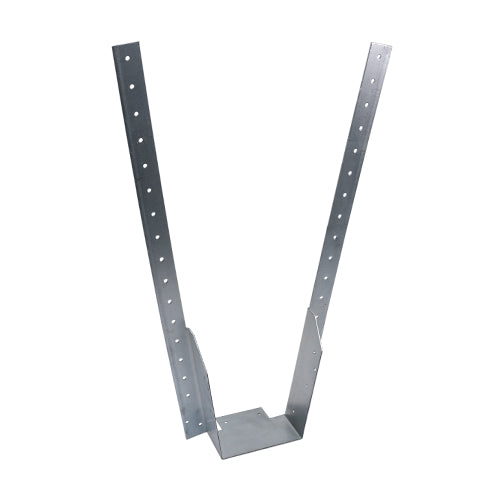

| 100450LTH | 100 x 420 x 50 | 100 x 150 to 250 |

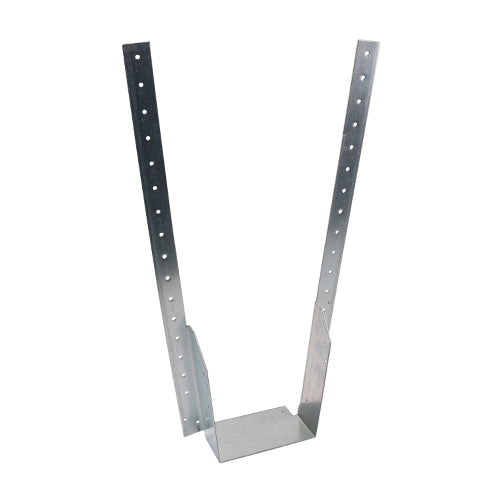

| 125450LTH | 125 x 450 x 50 | 125 x 175 to 250 |

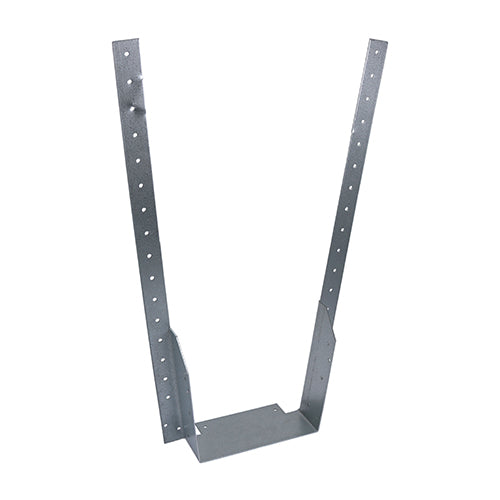

| 150450LTH | 150 x 450 x 50 | 150 x 175 to 250 |
Characteristic values to Eurocode 5. Safe working loads are short, medium and long term values as given in the TIMCO brochure.
Available sizes and packs
| Size | Pack | Min. order | Code |
|---|---|---|---|
| 44 x 150 to 250 | Each | 10 | 44450LTH |
| 47 x 150 to 250 | Each | 10 | 47450LTH |
| 76 x 150 to 250 | Each | 10 | 76450LTH |
| 90 x 150 to 250 | Each | 10 | 90450LTH |
| 100 x 150 to 250 | Each | 10 | 100450LTH |
| 125 x 150 to 250 | Each | 10 | 125450LTH |
| 150 x 150 to 250 | Each | 10 | 150450LTH |
