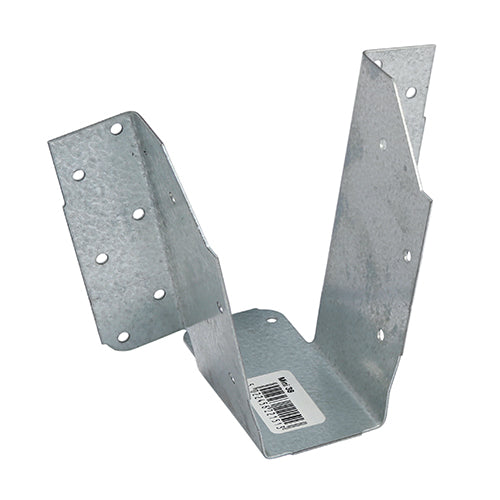

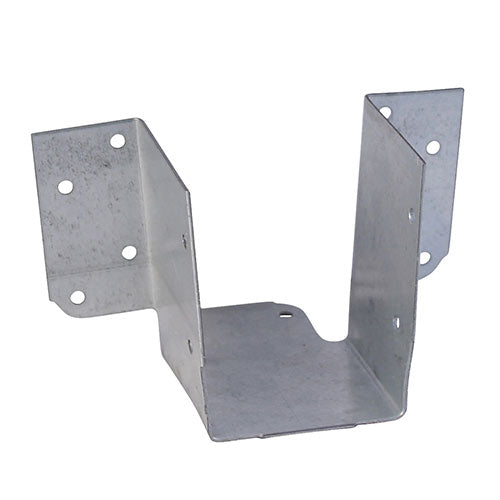

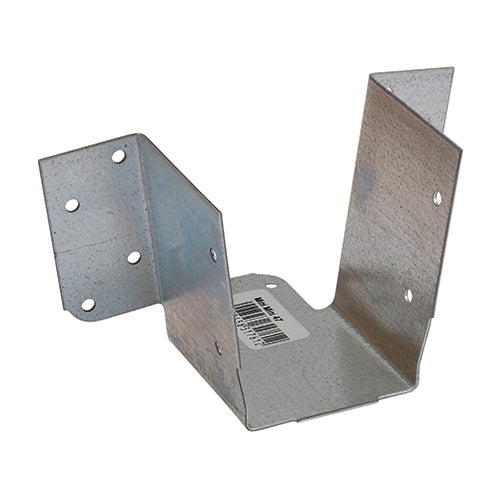

TIMCO Timber Hanger - Mini Plus
TIMCO Timber Hanger – Mini Plus, for larger joists
The larger-joist version of the TIMCO mini timber hanger. Timber-to-timber joist hangers for light duty work such as ceiling joists, decking and trimmers. A tag on the base of the hanger helps stop it rotating.
Made from 1.0mm galvanised steel, for joists 100–150mm deep.
Key features
- Light duty timber-to-timber hanger for larger joists
- Tag on base helps avoid rotation
- 20 nail holes
- 1.0mm galvanised steel
- Widths 38, 44 and 47mm
Typical applications
- Ceiling joists
- Decking
- Trimmers
Technical information
| Property | Value |
|---|---|
| Characteristic value | 9.5kN (Eurocode 5) |
| Safe working load – short term | 4.75kN |
| Safe working load – medium term | 4.53kN |
| Safe working load – long term | 3.96kN |
| Material | Galvanised steel, 1.0mm |
Installation guidelines
- Make sure the back plate of the hanger sits flat against the timber.
- Square-cut the joist so it sits tight to the back of the hanger.
- Fix the joist through every hole with 3.75 x 30mm galvanised square twist nails. For stainless steel applications use 2.36 x 30mm stainless steel annular ringshank nails.
Dimensions
| Code | W x H x B (mm) | Joist W x H (mm) |
|---|---|---|
| 38THMP | 38 x 100 x 50 | 38 x 100 to 150 |
| 44THMP | 44 x 97 x 50 | 44 x 100 to 150 |
| 47THMP | 47 x 96 x 50 | 47 x 100 to 150 |
Characteristic values to Eurocode 5. Safe working loads are short, medium and long term values as given in the TIMCO brochure.
Available sizes and packs
| Size | Pack | Min. order | Code |
|---|---|---|---|
| 38 x 100 to 150 | Each | 20 | 38THMP |
| 44 x 100 to 150 | Each | 20 | 44THMP |
| 47 x 100 to 150 | Each | 20 | 47THMP |
