TIMCO | SKU: 712159

TIMCO Twin Slot Shelf Bracket White

£1.04

Size

120mm 170mm 220mm 270mm 320mm 370mm 470mm

Product variants

Customer Services

Got a query? Call 0330 055 8210

We're open from 8am to 5pm, Monday to Thursday, and 8am to 4:30pm on Friday.

Delivery and Shipping

Delivery is £12.50 + VAT to UK Mainland. Orders over £100.00 + VAT qualify for free delivery, except for certain products—these will be clearly shown at checkout.

Orders placed by 3pm (stock permitting) are dispatched the same working day on a next working day service (not guaranteed).

Some areas, like Northern Scotland, may take 2–3 working days.

Northern Ireland, Channel Islands and Isle of Man at extra cost – contact us for a quote

We're open:
Mon–Thurs: 8am–5pm
Friday: 8am–4:30pm

Call us: 0330 055 8210

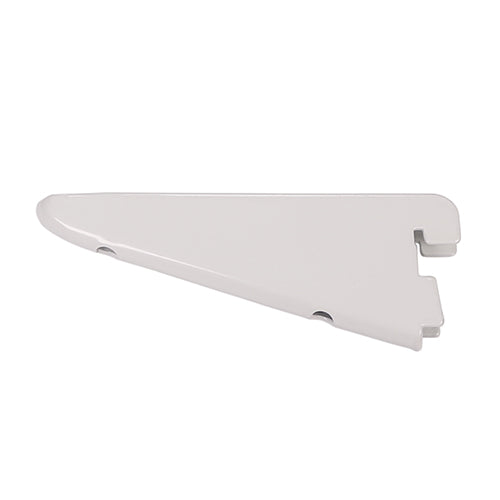

TIMCO Twin Slot Shelf Bracket – White

A TIMCO twin slot shelf bracket, used with twin slot uprights. Brackets come in a range of lengths to suit the shelf depth needed.

Maximum recommended loads are shown below, but the wall structure, type of fixing, type of shelving and distance between brackets should also be considered.

Key features

For use with twin slot uprights
Lengths to suit shelf depths of 120–470mm
Maximum recommended loads given per size
2 fixing holes for 5.0mm (No.10) screws

Technical information

Property	Value
Fixing holes	2
Recommended screw	5.0mm diameter, gauge 10 (imperial)

Sizes and loads

Code	Length (mm)	Shelf depth (mm)	Max. rec. load (kg)	D x W (mm)
712159	126	120	153	49.0 x 13.5
712028	177	170	110	49.0 x 13.5
712987	227	220	86	49.0 x 13.5
712321	280	270	72	49.0 x 13.5

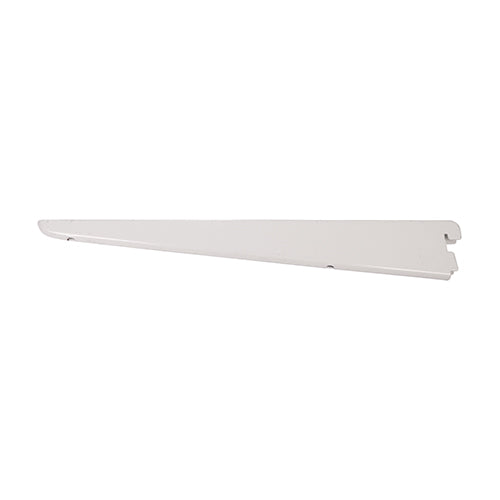

712654	335	320	61	49.0 x 13.5

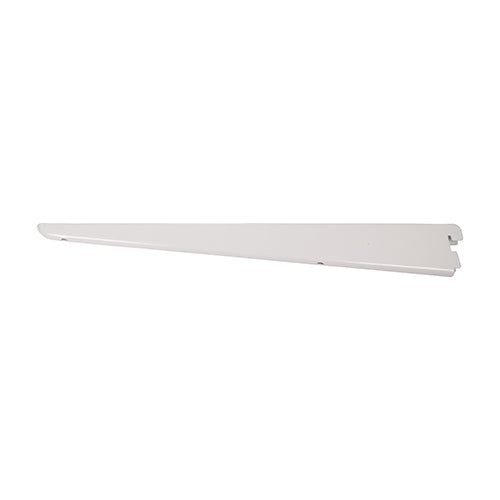

712147	382	370	59	49.0 x 13.5
712258	484	470	81	81.5 x 13.5
