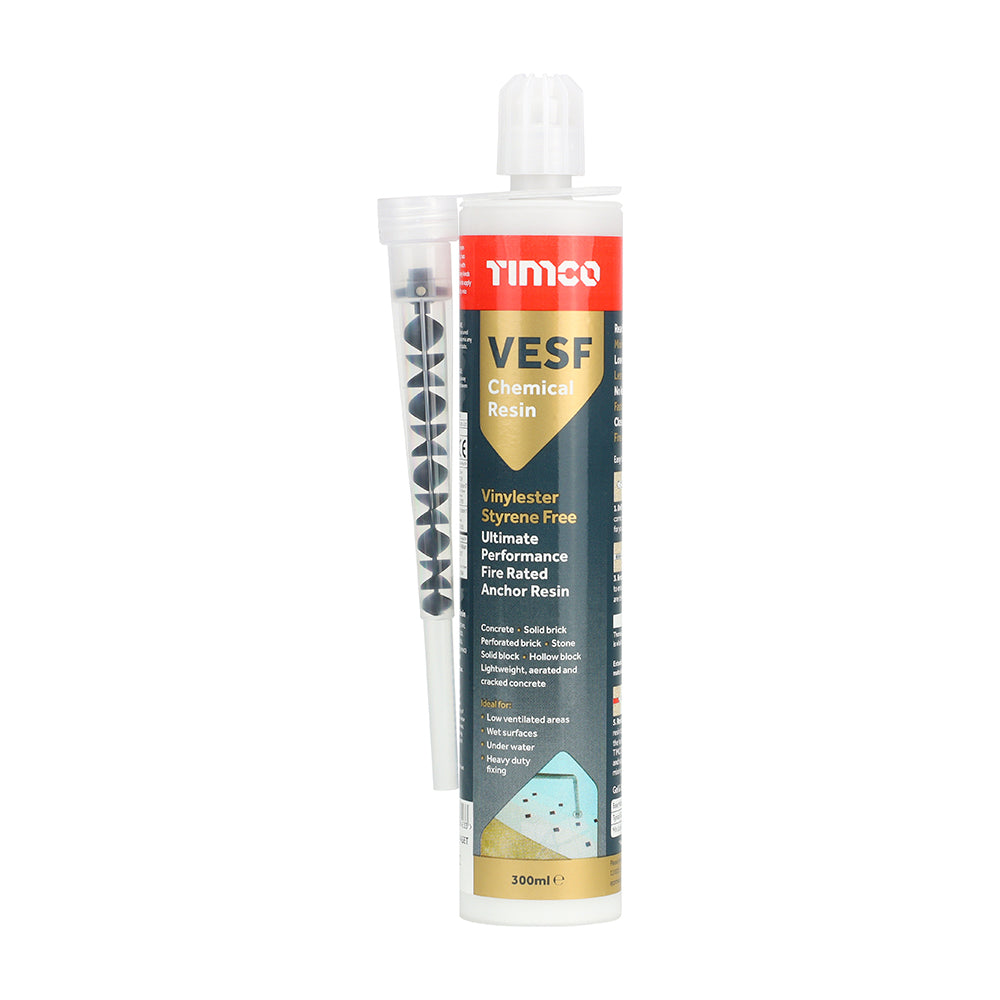

TIMCO VESF Vinylester SF Resin
TIMCO VESF Vinylester Styrene-Free Chemical Resin
A high-performance, low-odour vinylester resin from TIMCO for anchoring into concrete and masonry. It gives consistent results and exceptional tensile strength in a wide range of conditions. It suits enclosed, poorly ventilated, damp and wet locations.
Resin anchoring puts no stress on the base material, so you can fix closer to an edge, for example when installing balustrades.
Key features
- Ready to use with standard tools
- Less waste and no leakage
- Low extrusion force, so it is faster and easier to use
- T-Flow nozzle included
- Allows close edge and axial spacing
- For enclosed, poorly ventilated, damp and wet environments
- Available in 300ml and 410ml cartridges
Typical applications
- Heavy-duty anchoring into concrete, stone, brick and hollow block
- Balustrades and fixings close to an edge
- Rebar anchoring
Technical information
| Property | Value |
|---|---|
| Resin type | Vinylester, styrene-free |
| Rec. tensile load, 5.8 grade stud, concrete > 25N/mm² | M8 9.1kN, M10 13.8kN, M12 19.4kN, M16 26.8kN, M20 35.7kN, M24 44.6kN |
| Embedment depth | M8 80, M10 90, M12 110, M16 125, M20 170, M24 210mm |
| Approx. holes per 300ml cartridge | M8 66, M10 41, M12 25, M16 13, M20 5, M24 3 |
| Approx. holes per 410ml cartridge | M8 92, M10 57, M12 34, M16 18, M20 8, M24 4 |
How to use
- Drill the right size hole for your fixing.
- Blow out any debris from the hole.
- Brush the hole so the sides are clean.
- Blow out any debris again. Repeat the blow and brush steps four times.
- Extrude some unmixed resin to waste.
- Pump resin in to fill two-thirds of the hole.
- Insert the fixing, rotating it slowly.
- Leave to cure for the stated time.
Gel and cure times
| Base material (°C) | Typical gel time (mins) | Min. load time (mins) |
|---|---|---|
| 35 | 3 | 20 |
| 25 | 5 | 30 |
| 15 | 9 | 60 |
| 5 | 20 | 90 |
| -5 | 40 | 180 |
| -10 (resin at least 20°C) | 50 | 240 |
Available sizes and packs
| Size | Pack | Code |
|---|---|---|
| 300ml | Tube | VESF300 |
| 410ml | Tube | VESF410 |
