TIMCO Welded Masonry Hanger

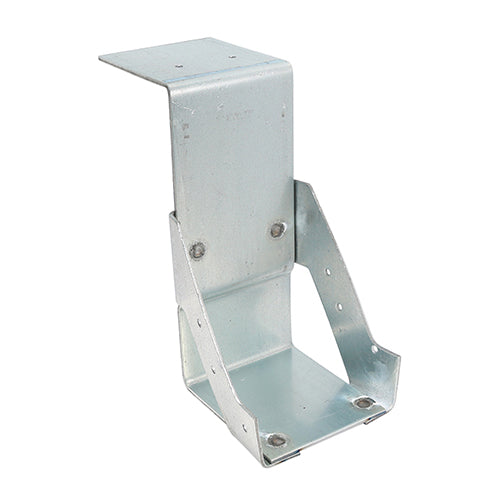

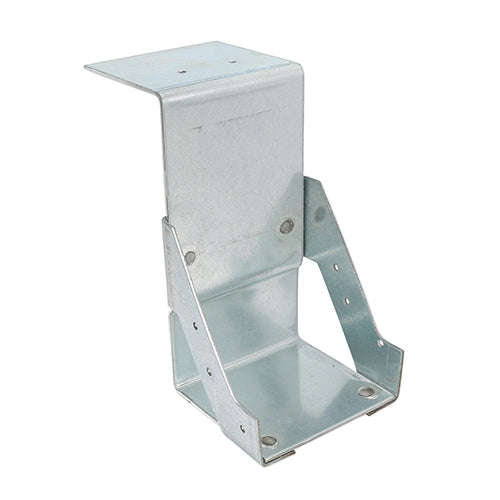

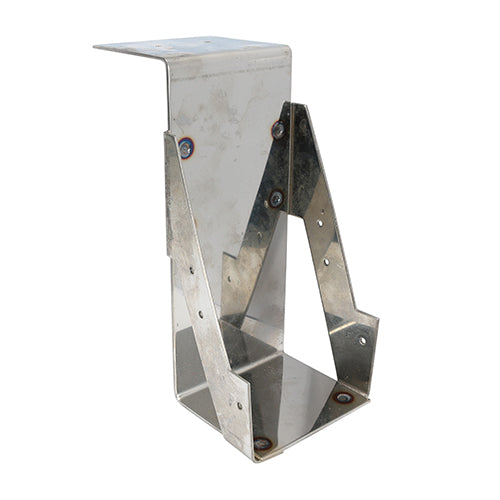

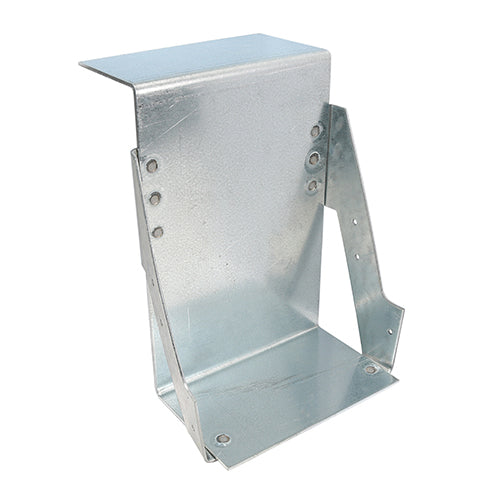

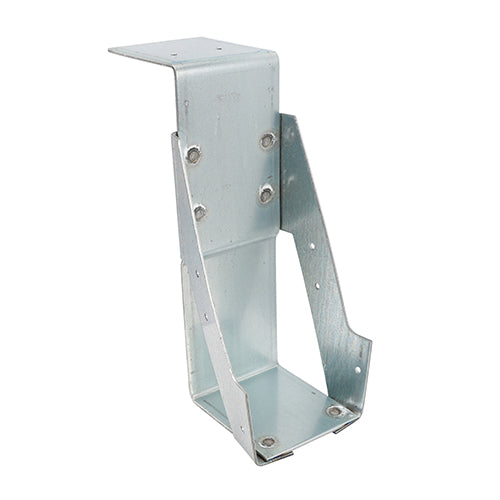

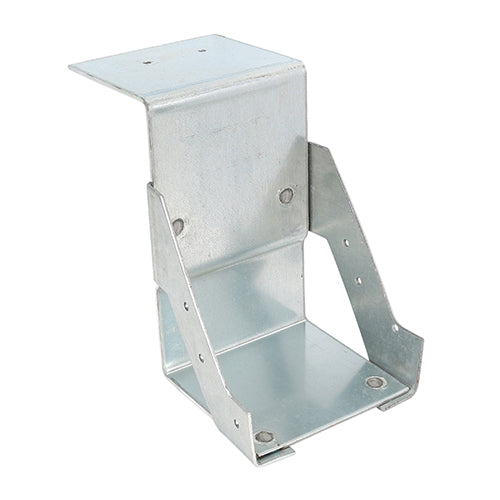

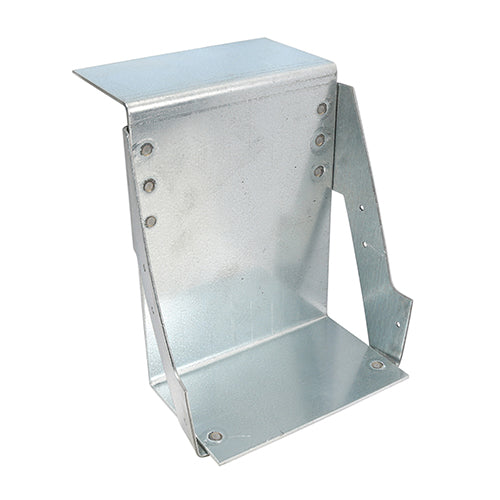

TIMCO Welded Masonry Hanger – galvanised joist hanger for masonry walls
A welded TIMCO joist hanger for building into masonry walls, made from 2.4mm galvanised steel to EN 845-1.
Hangers above 150mm are made 10mm shorter to allow for notching and regularised timber.
Key features
- Welded construction
- 2.4mm galvanised steel
- To EN 845-1
- 6 nail holes
- For 75, 90, 100 and 150mm wide joists
Technical information
| Property | Value |
|---|---|
| Characteristic value | 6.7kN (Eurocode 6) |
| Safe working load | 3.5kN (BS 5628) |
| Bearing | 80mm (75 and 90mm widths); 75mm (100mm width); 90mm (150mm width) |
| Material | Galvanised steel, 2.4mm |
Installation guidelines
- Make sure the back plate sits flat against the wall and is fixed securely.
- Build at least three block courses (675mm) above the hanger before the joist is loaded.
- Nail the side flanges with 3.75 x 30mm galvanised square twist nails.
- Let the mortar cure fully before any load is applied.
- Keep the gap between wall and joist to 6mm or less.
- Square-cut the joist so it sits tight to the back of the hanger.
Dimensions
| Code | W x H x B (mm) | Joist W x H (mm) |
|---|---|---|

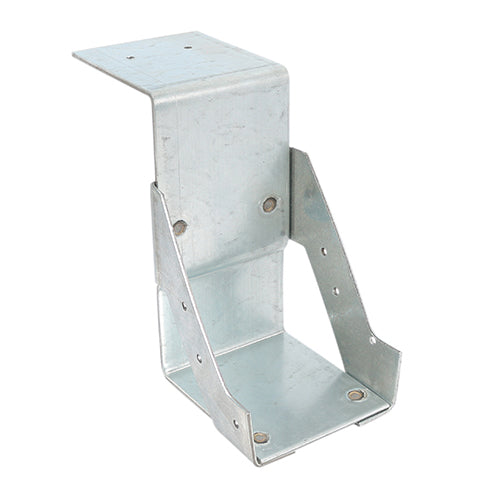

| 75150WMH | 75 x 140 x 80 | 75 x 150 |
| 75175WMH | 75 x 165 x 80 | 75 x 175 |

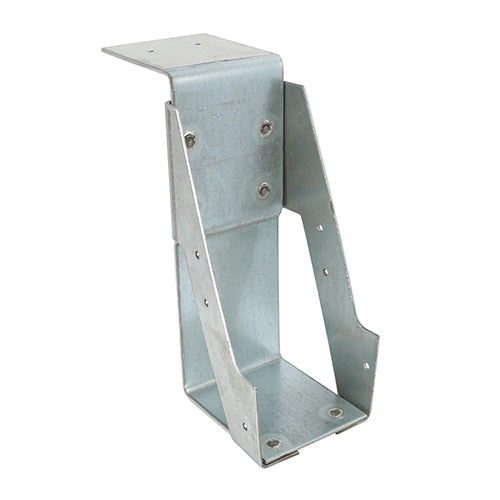

| 75200WMH | 75 x 190 x 80 | 75 x 200 |
| 75225WMH | 75 x 215 x 80 | 75 x 225 |
| 90150WMH | 90 x 140 x 80 | 90 x 150 |
| 90175WMH | 90 x 165 x 80 | 90 x 175 |

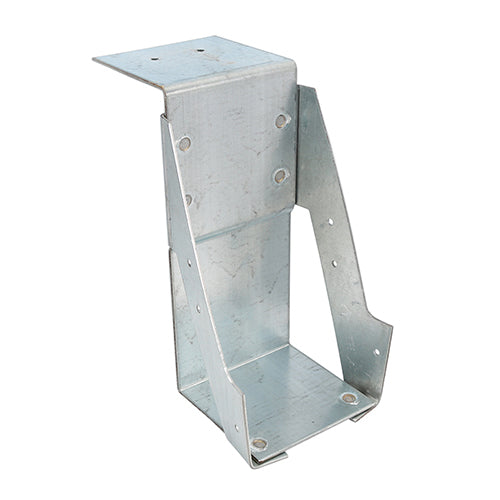

| 90200WMH | 90 x 190 x 80 | 90 x 200 |

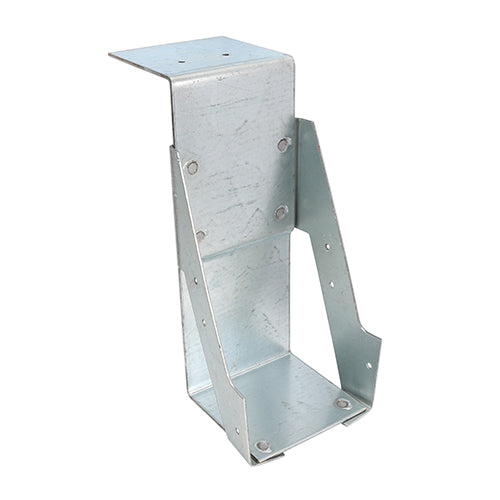

| 90225WMH | 90 x 215 x 80 | 90 x 225 |

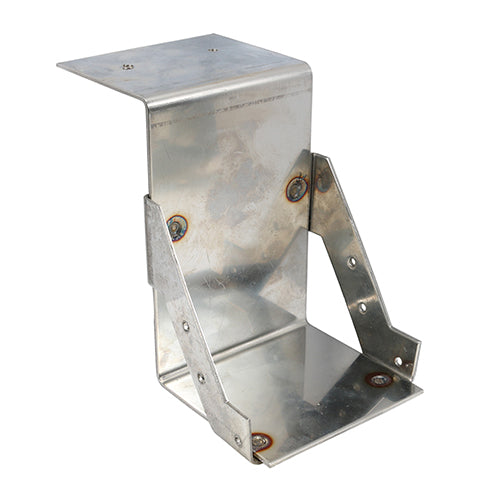

| 100150WMH | 100 x 140 x 75 | 100 x 150 |
| 100175WMH | 100 x 165 x 75 | 100 x 175 |

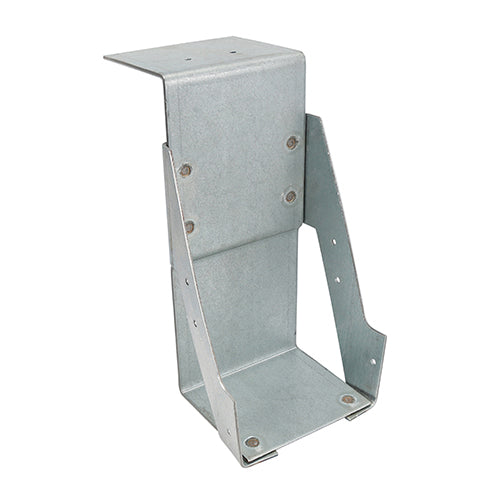

| 100200WMH | 100 x 190 x 75 | 100 x 200 |
| 100225WMH | 100 x 215 x 75 | 100 x 225 |
| 150200WMH | 150 x 190 x 90 | 150 x 200 |
| 150225WMH | 150 x 215 x 90 | 150 x 225 |
Available sizes and packs
| Size | Pack | Min. order | Code |
|---|---|---|---|
| 75 x 150 | Each | 10 | 75150WMH |
| 75 x 175 | Each | 10 | 75175WMH |
| 75 x 200 | Each | 10 | 75200WMH |
| 75 x 225 | Each | 10 | 75225WMH |
| 90 x 150 | Each | 6 | 90150WMH |
| 90 x 175 | Each | 6 | 90175WMH |
| 90 x 200 | Each | 6 | 90200WMH |
| 90 x 225 | Each | 6 | 90225WMH |
| 100 x 150 | Each | 6 | 100150WMH |
| 100 x 175 | Each | 6 | 100175WMH |
| 100 x 200 | Each | 6 | 100200WMH |
| 100 x 225 | Each | 6 | 100225WMH |
| 150 x 200 | Each | 6 | 150200WMH |
| 150 x 225 | Each | 6 | 150225WMH |
