TIMCO | SKU: 47100WMHS

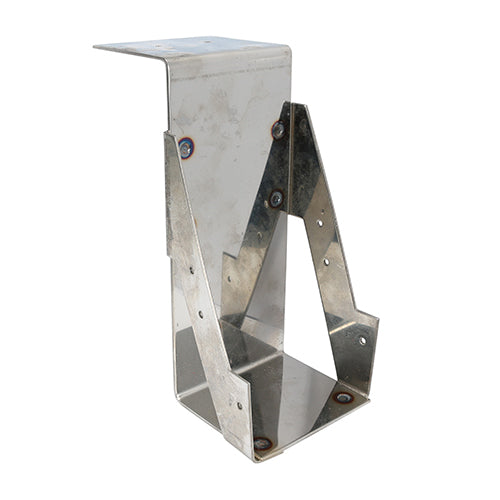

TIMCO Welded Masonry Hanger A2 SS

£27.14

Size

47 x 100 47 x 150 47 x 175 47 x 200 47 x 225 100 x 150 100 x 175 100 x 200 100 x 225

Product variants

Customer Services

Got a query? Call 0330 055 8210

We're open from 8am to 5pm, Monday to Thursday, and 8am to 4:30pm on Friday.

Delivery and Shipping

Delivery is £12.50 + VAT to UK Mainland. Orders over £100.00 + VAT qualify for free delivery, except for certain products—these will be clearly shown at checkout.

Orders placed by 3pm (stock permitting) are dispatched the same working day on a next working day service (not guaranteed).

Some areas, like Northern Scotland, may take 2–3 working days.

Northern Ireland, Channel Islands and Isle of Man at extra cost – contact us for a quote

We're open:
Mon–Thurs: 8am–5pm
Friday: 8am–4:30pm

Call us: 0330 055 8210

TIMCO Welded Masonry Hanger A2 SS – stainless steel joist hanger for masonry walls

A welded TIMCO joist hanger for building into masonry walls, made from 2.4mm A2 (304) stainless steel to EN 845-1.

Hangers above 150mm are made 10mm shorter to allow for notching and regularised timber.

Key features

Welded construction
2.4mm A2 (304) stainless steel
To EN 845-1
6 nail holes
For 47mm and 100mm wide joists

Technical information

Property	Value
Characteristic value	6.7kN (Eurocode 6)
Safe working load	3.5kN (BS 5628)
Bearing	80mm
Material	A2 (304) stainless steel, 2.4mm

Installation guidelines

Make sure the back plate sits flat against the wall and is fixed securely.
Build at least three block courses (675mm) above the hanger before the joist is loaded.
Nail the side flanges with 3.75 x 30mm galvanised square twist nails.
Let the mortar cure fully before any load is applied.
Keep the gap between wall and joist to 6mm or less.
Square-cut the joist so it sits tight to the back of the hanger.

Dimensions

Code	W x H x B (mm)	Joist W x H (mm)

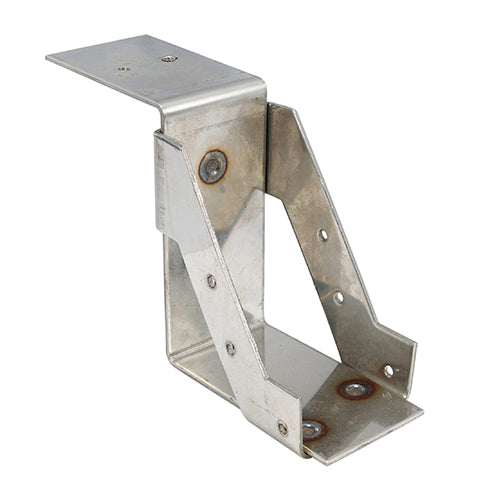

47100WMHS	47 x 100 x 80	47 x 100

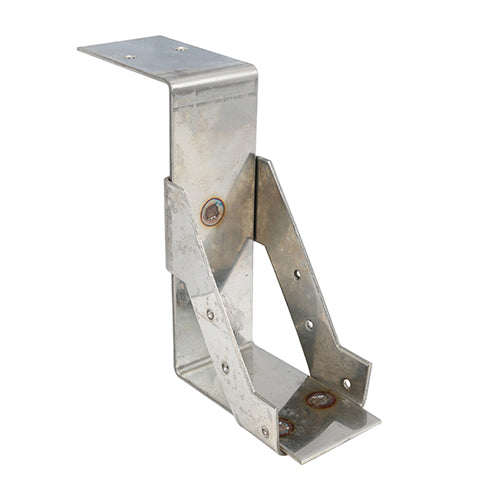

47150WMHS	47 x 140 x 80	47 x 150

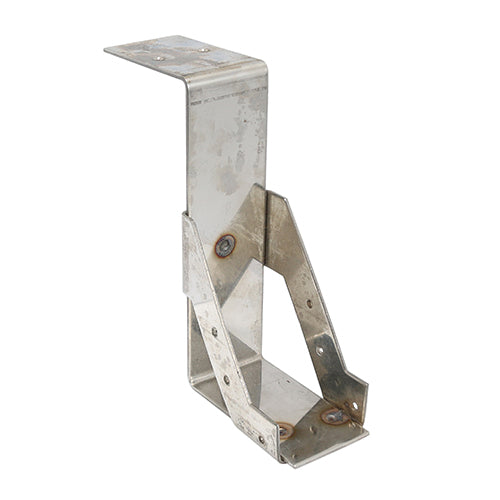

47175WMHS	47 x 165 x 80	47 x 175

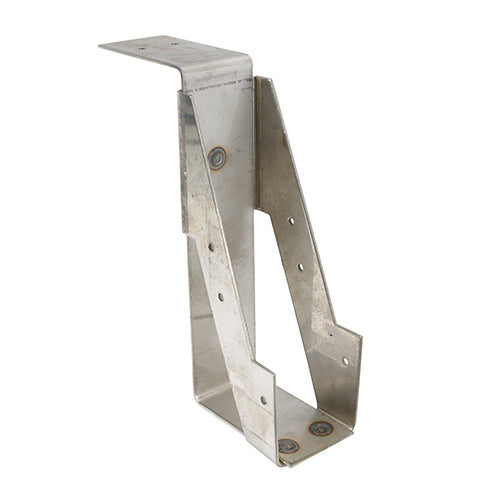

47200WMHS	47 x 190 x 80	47 x 200

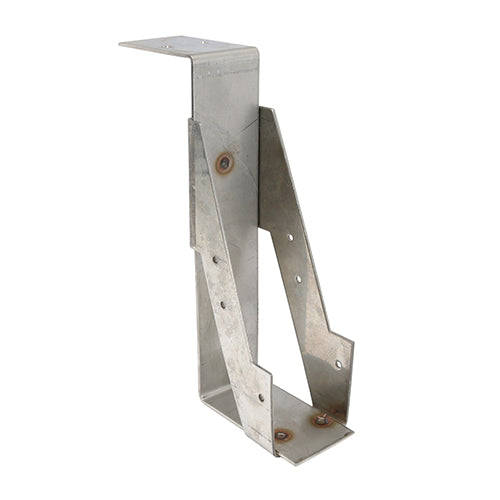

47225WMHS	47 x 215 x 80	47 x 225

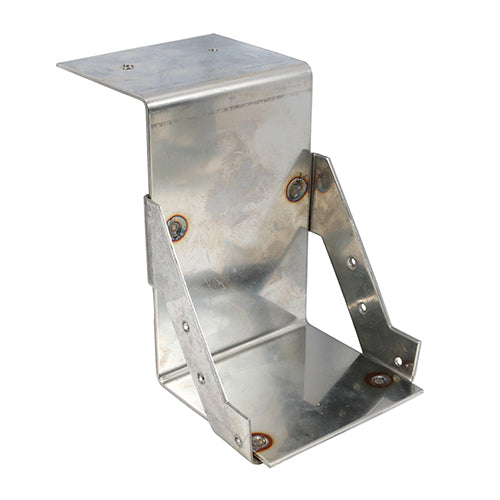

100150WMHS	100 x 140 x 80	100 x 150

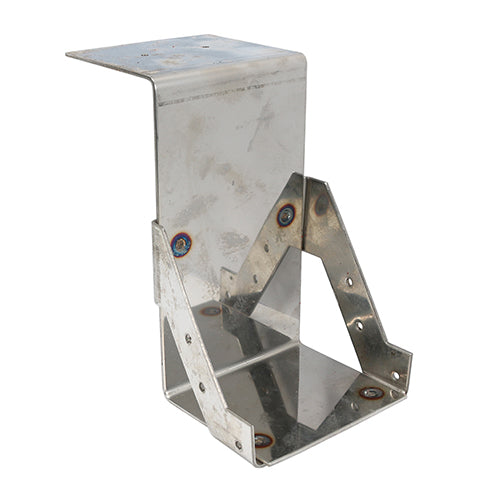

100175WMHS	100 x 165 x 80	100 x 175

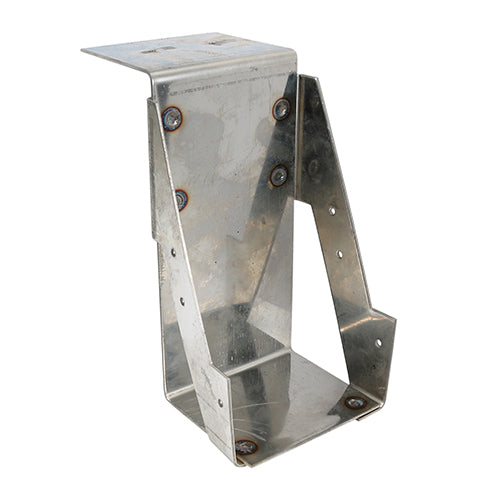

100200WMHS	100 x 190 x 80	100 x 200
100225WMHS	100 x 215 x 80	100 x 225

Available sizes and packs

Size	Pack	Min. order	Code
47 x 100	Each	6	47100WMHS
47 x 150	Each	6	47150WMHS
47 x 175	Each	6	47175WMHS
47 x 200	Each	6	47200WMHS
47 x 225	Each	6	47225WMHS
100 x 150	Each	6	100150WMHS
100 x 175	Each	6	100175WMHS
100 x 200	Each	6	100200WMHS
100 x 225	Each	6	100225WMHS
