TIMCO Zamac Nail In Anchor

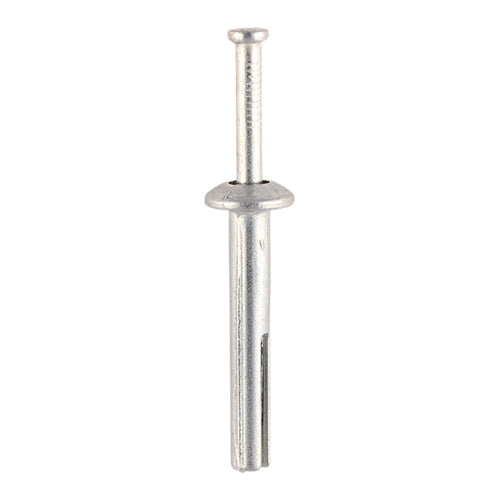

TIMCO Zamac Nail-In Anchor
A quick, light-duty TIMCO hammer-set anchor for fixing sheet metal, plastic or timber to concrete or masonry. Drill through the fixture, push the anchor in, then hammer the nail home.
Key features
- Hammer-set, so it goes in fast
- 6mm drill hole
- Sizes 6.0 x 30 to 6.0 x 65mm
- Box of 100
Typical applications
- Fixing sheet metal, plastic or timber to concrete and masonry
Technical information
| Property | Value |
|---|---|
| Substrate tested | Concrete ≥ 25N/mm² |
| Drill hole Ø | 6mm |
| Fixture clearance hole Ø | 6.5mm |
| Min. embedment depth | 25mm |
| Min. drill hole depth | 35mm |
| Max. rec. load | 70kg (0.70kN) |
How to fit
- Drill a hole of the required diameter.
- Push the fixing through the fixture.
- Hammer the nail into the anchor to secure it.
Sizes
| Size (mm) | Max. fixture thickness (mm) |
|---|---|
| 6.0 x 30 | 5 |
| 6.0 x 40 | 15 |
| 6.0 x 50 | 25 |
| 6.0 x 65 | 40 |
Not recommended for overhead applications.
Available sizes and packs
| Size | Pack | Code |
|---|---|---|
| 6.0 x 30 | Box of 100 | 0630ZNA |
| 6.0 x 40 | Box of 100 | 0640ZNA |
| 6.0 x 50 | Box of 100 | 0650ZNA |
| 6.0 x 65 | Box of 100 | 0665ZNA |
