TIMCO Zip-Fix Cavity Wall Fixing
TIMCO Zip-Fix Cavity Wall Fixing

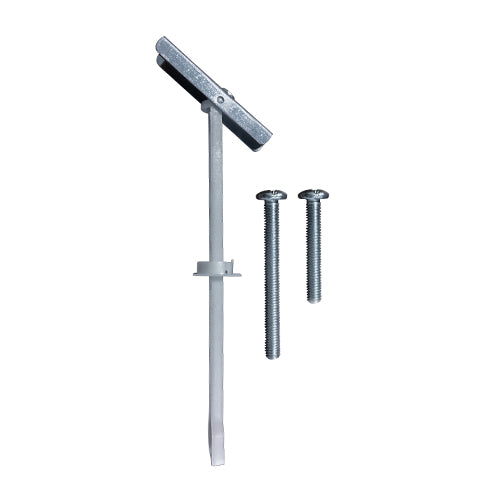

Zip-Fix from TIMCO is a heavy-duty cavity wall anchor for plasterboard, most hollow concrete blocks, cavity walls and ceilings. It installs quickly and is ideal for TV brackets, radiators and cabinets.
Each fixing comes with both 40mm and 60mm M6 screws to suit a wider range of fixture thicknesses.
Key features
- Heavy-duty cavity anchor with an M6 thread
- Fits a 13mm drilled hole
- Needs 50mm of cavity clearance behind the board
- Includes 40mm and 60mm screws
- Maximum fixture thickness 45mm, with a 6mm fixture clearance hole
Typical applications
- TV brackets
- Radiators
- Cabinets and shelving on plasterboard or hollow block
Technical information
| Property | Value |
|---|---|
| Thread | M6 |
| Drill hole Ø | 13mm |
| Cavity clearance needed | 50mm |
| Max. fixture thickness | 45mm |
| Max. rec. load: 12.5mm plasterboard | 30kg (0.30kN) |
| Max. rec. load: 25mm double board | 47kg (0.47kN) |
| Max. rec. load: 15mm dense board | 56kg (0.56kN) |
| Max. rec. load: hollow block | 60kg (0.60kN) |
How to fit
- Drill a 13mm hole in the board or block.
- With the thumb tab facing up, push the metal toggle through the hole so it drops down behind the board.
- Slide the nylon collar towards the wall until it sits in the hole, then snap off the nylon arms.
- Pass an M6 screw through the fixture into the Zip-Fix thread and tighten until secure.
Available sizes and packs
| Size | Pack | Code |
|---|---|---|

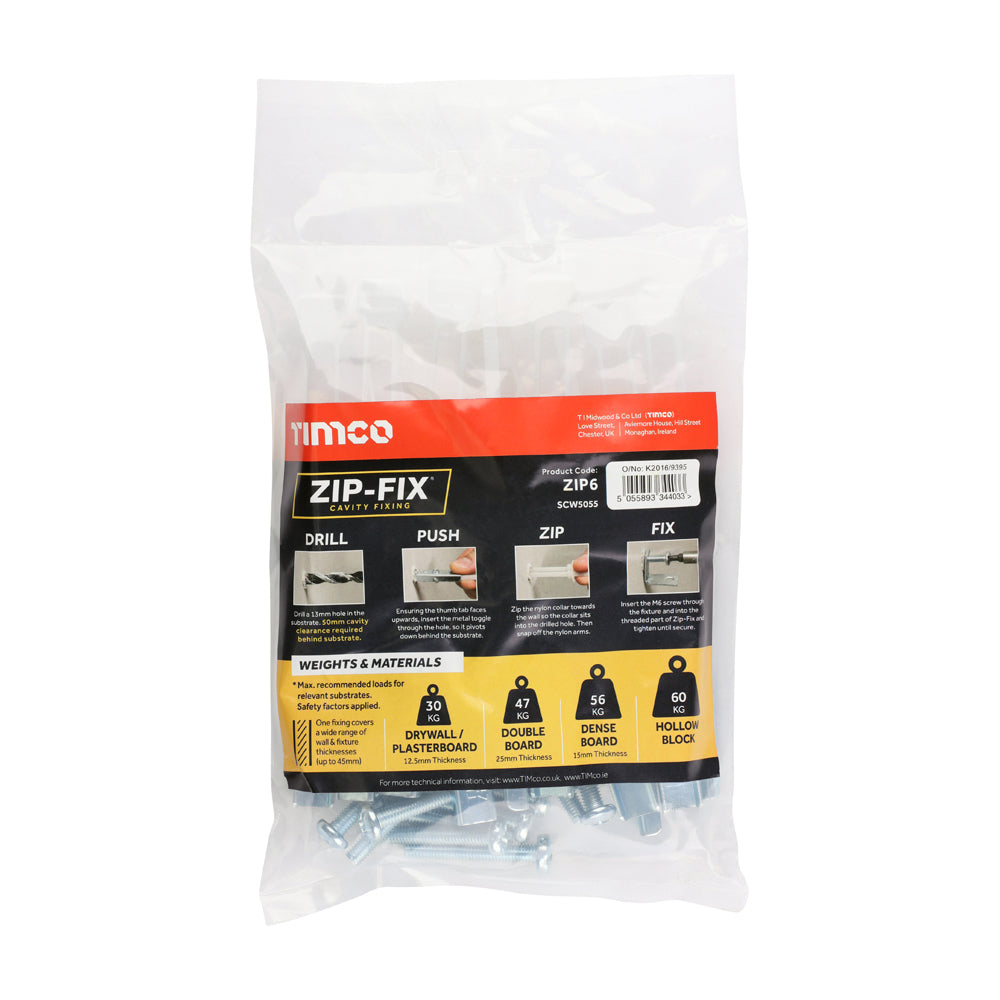

| M6 | Bag of 10 | ZIP6 |

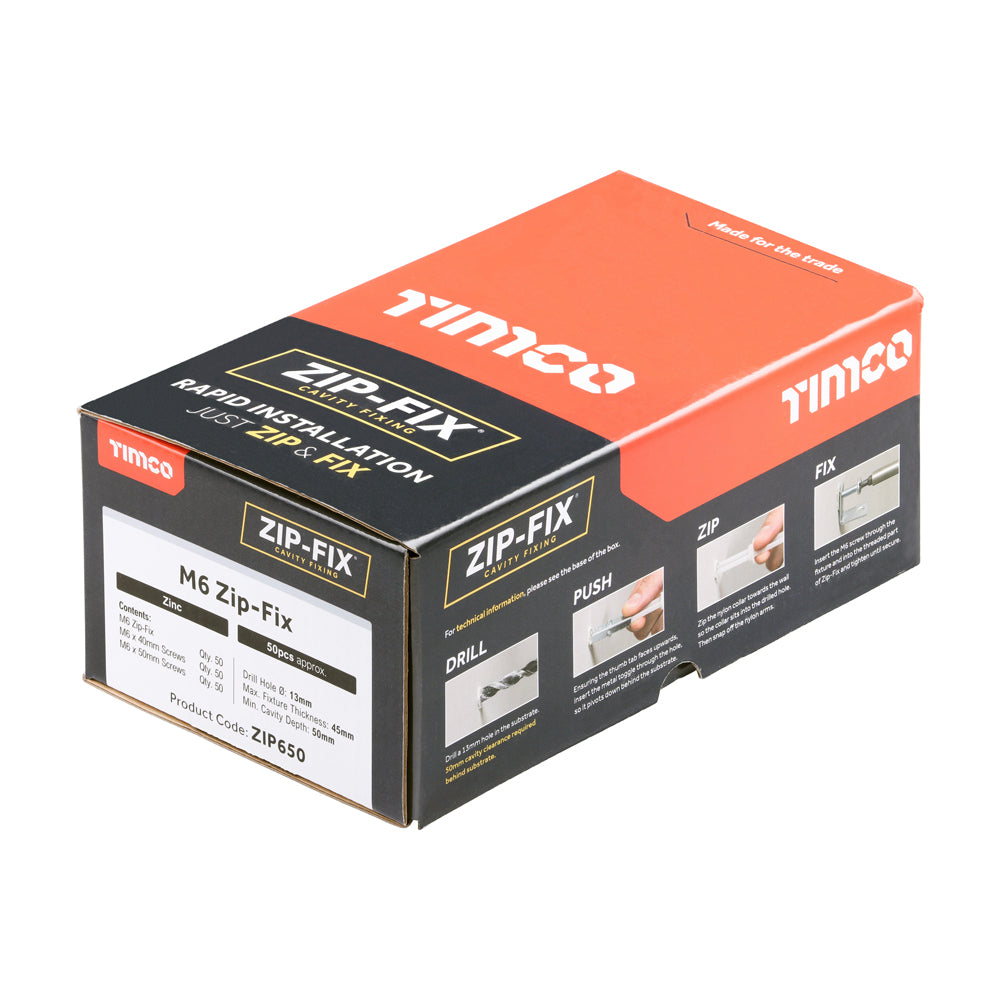

| M6 | Box of 50 | ZIP650 |
